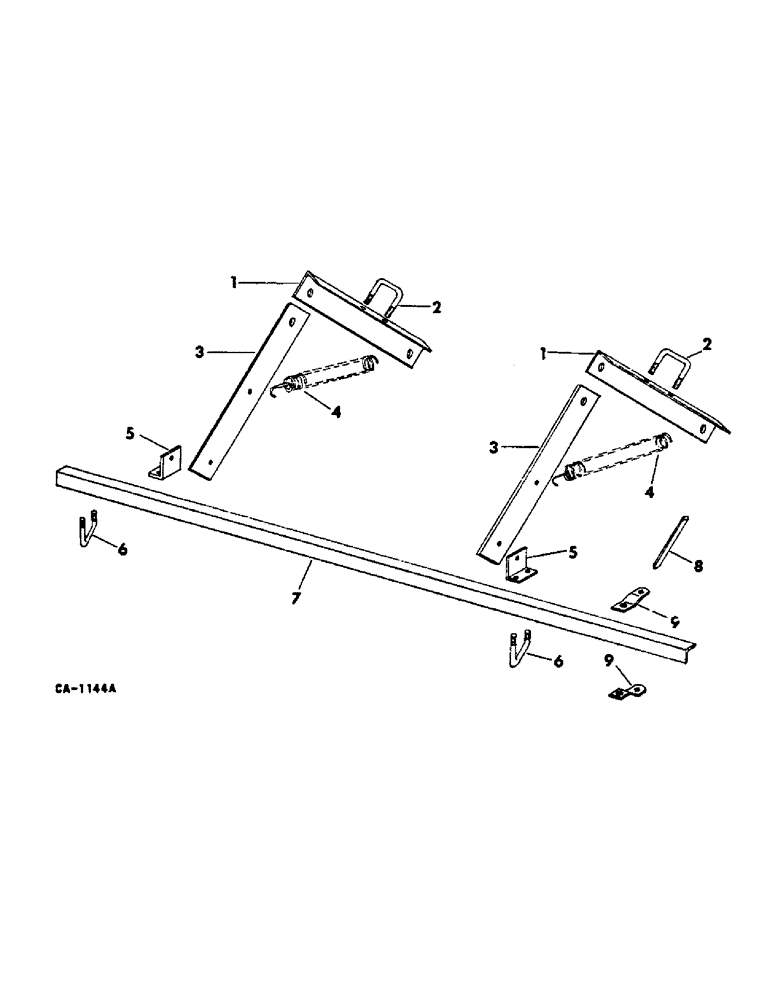

Запчасти Case IH 345 (AH-7) - LEVELING BAR ATTACHMENT, PRODUCT GRAPHIC

1

543054R1

ANGLE, tube mtg

6шт.

2

478243R1

BOLT,1/2" - 13 x 3.6"

U-BOLT

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

543055R1

BAR, mulcher carrying

6шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

4

466257R1

SPRING

tension

6шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cdp lock

2шт.

5

543056R1

ANGLE, tooth bar

6шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

231-1448

NUT,1/2"-13, GB

1/2-13 znd nylon insert

1шт.

6

543057R1

U-BOLT

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

543058R1

ANGLE, tooth bar 7 ft., 1 used w/units A and B, 3 used w/unit C

1шт.

7

59255C1

ANGLE, tooth bar, 4 ft 6 in., 2 used w/unit A

1шт.

7

59256C1

ANGLE, tooth bar, 5 ft 9 in., 2 used w/unit B

1шт.

8

P23931

TOOTH

peg, 18 used w/unit A, 20 used w/unit B, 24 used w/unit C

1шт.

9

543061R1

STRAP, tooth, 2 for each tooth

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8-16 x 2-1/4 znd hex-hd cap, 1 for each tooth

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per screw 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per screw 3/8"-16, G5

1шт.

547494R91

DECAL

PRODUCT GRAPHIC PKG., consists of six IH trademarks

1шт.

547495R91

DECAL

PRODUCT GRAPHIC PKG., consists of eight International trademarks

1шт.

547497R91

PACKAGE

PRODUCT GRAPHIC PKG., consists of eight model designation decals

1шт.
