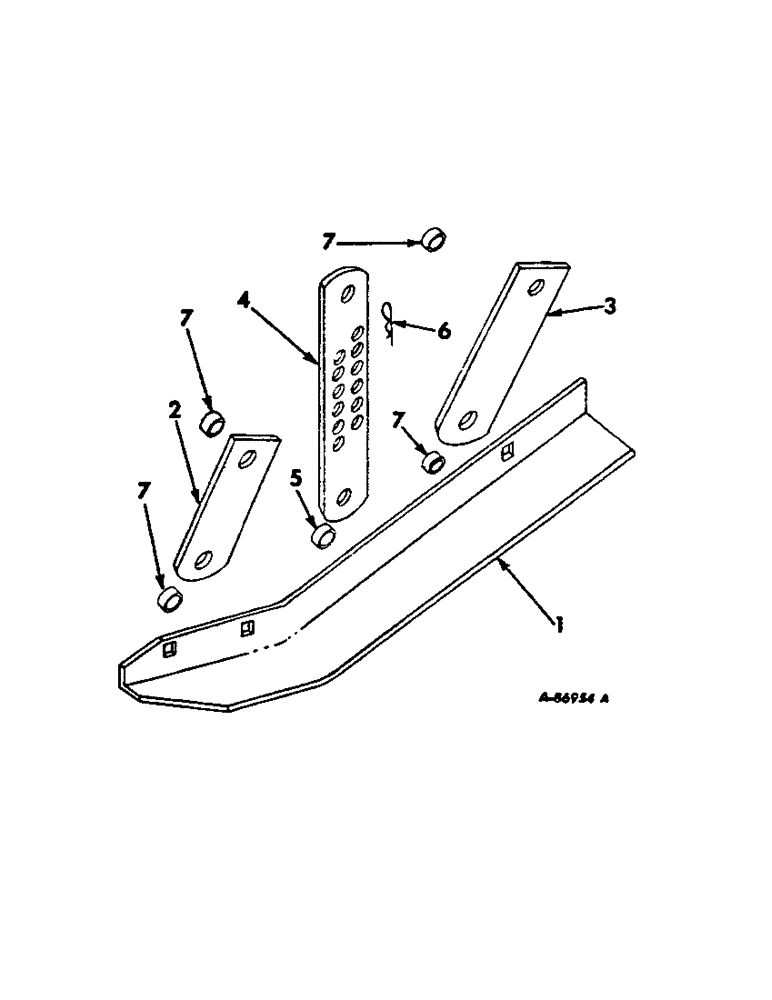

Запчасти Case IH 340 (X-07[A]) - GAUGE SHOE

1

484630R1

SHOE, gauge RH, used with 7 ft center frame, drawbar assy and RH wing

1шт.

1

484629R1

SHOE, gauge LH, used with 7 ft center frame and LH wing

1шт.

2

484626R1

BAR, gauge shoe front pivot, used with drawbar assy, 2 used with 7 ft center frame and wint extensions

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8-11 x 2 C-Z sq-nk crg

1шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 C-Z sq-nk crg

2шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

2шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

21/32 x 1-1/4 x 7 ga

2шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8-11 x 2-1/2 C-Z sq-nk crg, used with 7 ft center frame and wing extensions

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8-11 x 2 C-Z hex-hd mach, used with drawbar assy

1шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8-11 x 2-1/4 C-Z sq-nk crg, used with gauge shoe attachment

1шт.

3

484627R1

BAR, gauge shoe rear pivot, used with drawbar assy, 2 used with 7 ft center frame and wing extensions

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8-11 x 2 C-Z sq-nk crg

1шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

2шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

21/32 x 1-1/4 x 7 ga

2шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8-11 x 2-1/2 C-Z sq-nk crg, used with 7 ft center frame and wing extensions

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8-11 x 2 C-Z hex-hd mach, used with drawbar assy

1шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8-11 x 2-1/4 C-Z sq-nk crg, used with gauge shoe attachment

1шт.

4

484628R1

BAR, gauge shoe adjusting, used with drawbar assy, 2 used with 7 ft center frame and wing extensions

1шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8-11 x 2-1/4 C-Z sq-nk crg

1шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

1шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

21/32 x 1-1/4 x 7 ga

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8-11 x 2-1/2 C-Z sq-nk crg

1шт.

5

484745R1

SPACER, use with drawbar assy, 2 used with 7 ft center frame and wing extensions

1шт.

6

517843R1

COTTER PIN

PIN, quick attachable cot., used with drawbar assy, 2 used with 7 ft center frame and wing extensions

1шт.

7

484624R1

SPACER

4 used with drawbar assy, 8 used with 7 ft center frame, 10 used with wing extensions

1шт.
