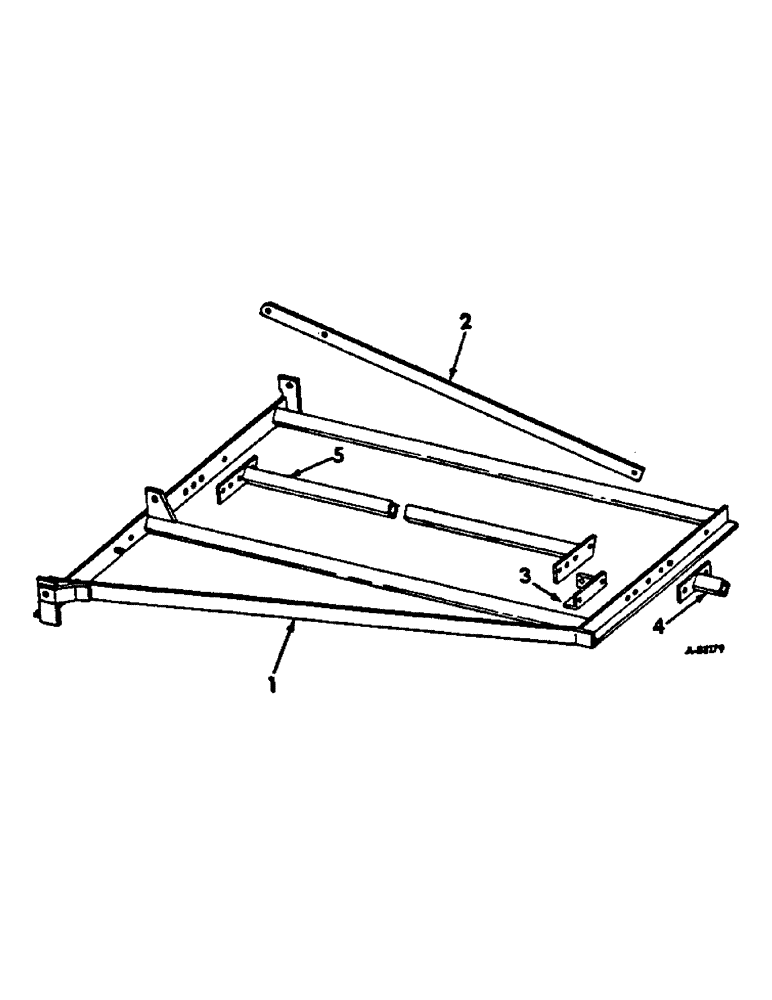

Запчасти Case IH 340 (X-06) - FRAME ASSY, WING

1

484571R92

FRAME ASSY, wing LH 4 ft 6 in., note A, order frame assy 493254R1 and bar 493269R1

1шт.

1

484572R92

FRAME ASSY, wing RH 4 ft 6 in., note A, order frame assy 493255R1 and bar 493269R1

1шт.

1

484576R92

FRAME ASSY, wing LH 5 ft 9 in., note A, order frame assy 493263R!, and bar 493270R1

1шт.

1

484577R92

FRAME ASSY, wing RH 5 ft 9 in., note A, order frame assy 493264R1, and bar 493270R1

1шт.

1

484586R92

FRAME ASSY, wing LH 7 ft, note A, order frame assy 493266R1 and bar 493271r1

1шт.

1

484587R92

FRAME ASSY, wing RH 7 ft, note A, order frame assy 493267R1 and bar 493271R1

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4 x 2 hex-hd cap

2шт.

462248R1

LOCK NUT

3/4-10 hex. lock

3шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

3шт.

1

493254R1

FRAME ASSY, wing LH 4 ft 6 in., note B

1шт.

1

493255R1

FRAME ASSY, wing RH 4 ft 6 in., note B

1шт.

1

493263R1

FRAME ASSY, wing LH 5 ft 9 in., note B

1шт.

1

493264R1

FRAME ASSY, wing RH 5 ft 9 in., note B

1шт.

1

493266R1

FRAME ASSY, wing LH 7 ft, note B

1шт.

1

493267R1

FRAME ASSY, wint RH 7 ft, note B

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-1/4 znd type 5

2шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 znd type 5

4шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

6шт.

462248R1

LOCK NUT

3/4-10 hex. lock

6шт.

2

484636R1

BAR, center wing brace, use with frames, 484571R92 and 484572R92

1шт.

2

484634R1

BAR, center wing brace, use with frames, 484576R92 and 484577R92

1шт.

2

484640R1

BAR, center wing brace, use with frames, 484586R92 and 484587R92

1шт.

2

493269R1

BAR, center wing brace, use with frames, 493254R1 and 493255R1

2шт.

2

493270R1

BAR, center wing brace, use with frames, 493263R1 and 493264R1

2шт.

2

493271R1

BAR, center wing brace, use with frames, 493266R1 and 493267R1

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 znd type 5

2шт.

589068R1

WASHER

.656 x 1.250 x .090

2шт.

9413944

NUT

5/8-11 hex. lock

2шт.

3

485326R1

ANCHOR ASSY, wing LH, use with frames 484571R92, 484586R92 and 484586R91, also used as RH on drawbar assy

1шт.

3

485327R1

ANCHOR ASSY, wing RH, use with frames, 484572R92, 484577R92 and 484587R92, also used as LH on drawbar assy

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8-11 x 2-1/2 hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124586

BRAKE LINING

NUT, 5/8-11 C-Z med lock

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

1шт.

4

484618R92

TUBE ASSY, extension LH

1шт.

4

484619R92

TUBE ASSY, extension LH

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 znd hex-hd mach

1шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8-11 x 2-3/4 C-Z hex-hd mach

1шт.

20511R1

WASHER, 5/8 C-Z med lock

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

5

486660R1

BAR ASSY, tooth, use with frames, 484571R92 and 484577R92

1шт.

5

486661R1

BAR ASSY, tooth, use with frames, 484576R92 and 484577R92

1шт.

5

486634R1

BAR ASSY, tooth, use with frames, 484586R92 and 484587R92

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

4шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

2шт.
