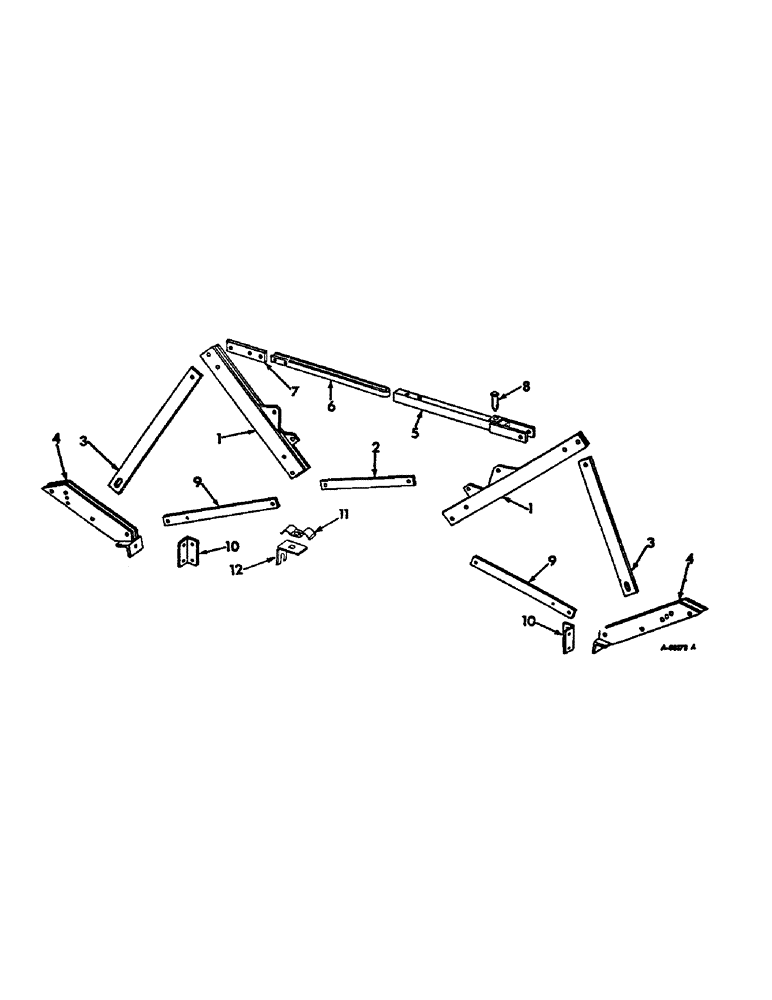

Запчасти Case IH 340 (X-05) - HYDRAULIC FOLDING

1

484593R91

LEVER ASSY, cyl, Serial Range: up-1969

2шт.

1

493272R11

LEVER ASSY, cyl, 1969 and since

2шт.

21954R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 C-Z std-hd

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

2

484622R1

BAR, equalizer, Serial Range: up-1969

2шт.

22092R1

PIN

5/8 x 2-3/4 C-Z std-hd

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

2шт.

2

493278R1

BAR, equalizer, 1969 and since

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

2шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

4шт.

3

484635R2

BAR, lift

2шт.

21954R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 C-Z std-hd

2шт.

21672R1

PIN,3/4" x 1 11/16"

3/4 x 1-11/16 C-Z std-hd

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

4шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

4шт.

4

484590R93

BAR ASSY, wing pivot

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

4шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

4шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

4шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

462248R1

LOCK NUT

3/4-10 hex. lock

2шт.

21955R1

HEADED PIN,1/2" x 1 5/8"

PIN, 1/2 x 1-5/8 C-Z std-hd

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

5

484605R91

TUBE ASSY, stop

1шт.

20813R1

PIN, 3/4 x 3-1/8 C-Z std-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

6

484651R1

STOP, wing ext

1шт.

7

484652R1

BAR, pivot

1шт.

21954R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 C-Z std-hd

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2-13 x 2 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

486762R1

PIN

lockout

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cot.

1шт.

9

484551R1

BAR, strut pivot

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

10

484552R1

ANGLE, strut locator, Serial Range: up-1969

2шт.

188809R1

BOLT, 1/2-13 x 2 C-Z hex-hd mach

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

11

515030R1

CLAMP

hose

1шт.

12

471301R2

ANGLE

MOUNTING, hose clamp

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 C-Z wing

1шт.
