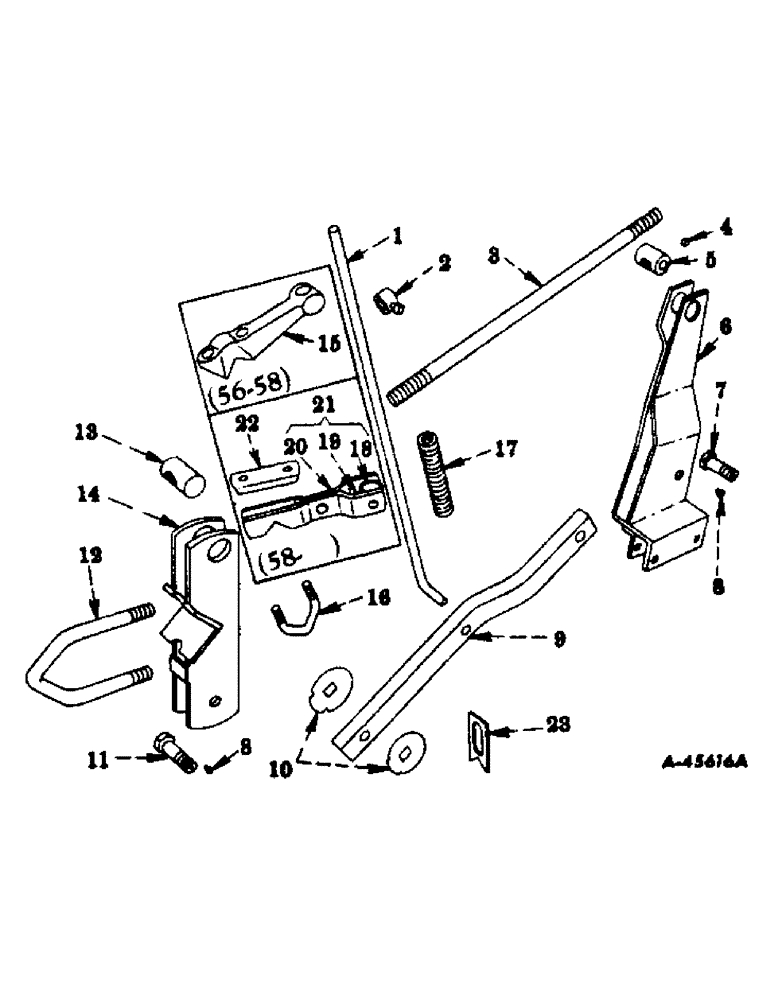

Запчасти Case IH 340 (X-04) - DRAWBAR ASSEMBLY

1

486638R1

BAR, connecting

2шт.

2

485328R1

HINGE ASSY, center LH

1шт.

2

485329R1

HINGE ASSY, center RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

6шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

2шт.

3

484624R1

SPACER

2шт.

4

484561R91

DRAWBAR ASSY

1шт.

5

485802R1

BRACKET, center tooth

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

484642R1

BAR, mast support

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

7

484641R1

BAR, mast

2шт.

8

462425R1

SPACER

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

9

484654R1

BAR, wing loose link

4шт.

21665R1

PIN, 5/8 x 1-5/8 znp std-hd

4шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

10

485335R1

BAR, wing retaining

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

11

485336R1

BAR, tie

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.
