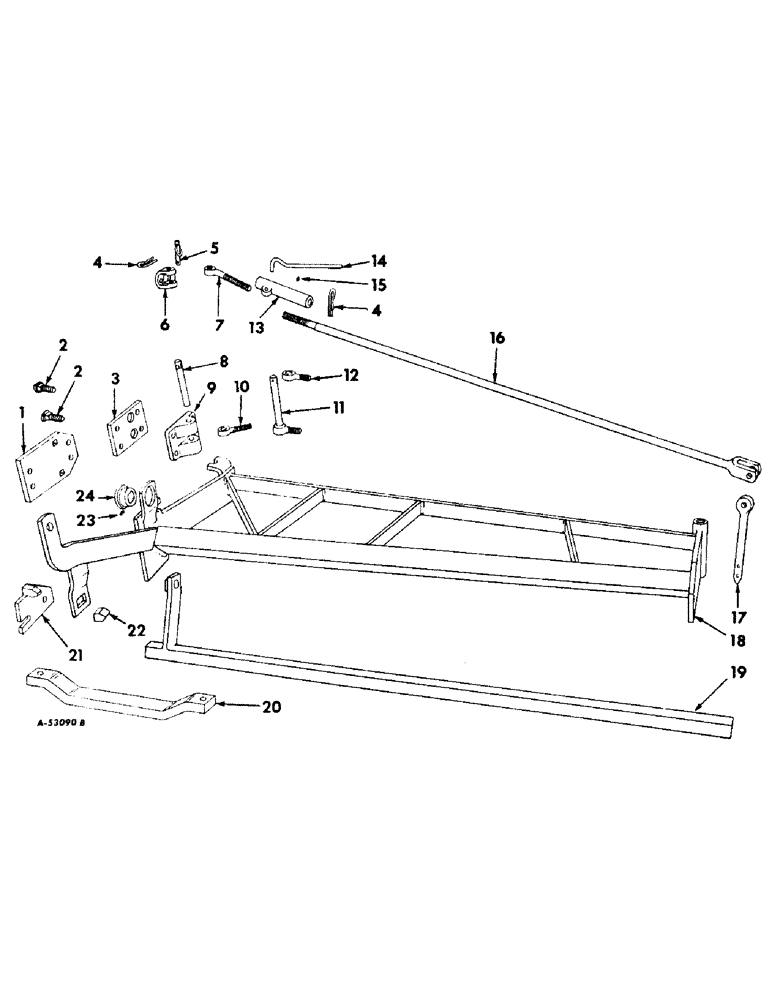

Запчасти Case IH 340 (X-03) - 7-FT CENTER FRAME, 1969 AND SINCE

1

492201R1

FRAME ASSY, center 7 ft.

1шт.

2

484631R1

BRACE, center mast LH

1шт.

271272

PLATE

SCREW, 3/4-10 x 2-1/4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

484632R1

BRACE, center mast RH

1шт.

271272

PLATE

SCREW, 3/4-10 x 2-1/4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

492206R1

BRACE, front hinge LH

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

1шт.

464623R1

WASHER

21/32 x 1-10I x 11 ga C-Z

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

5

492207R1

BRACE, front hinge RH

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 gA C-Z

1шт.

464623R1

WASHER

21/32 x 1-10I x 11 ga C-Z

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

6

485334R1

BAR ASSY, cyl support

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.
