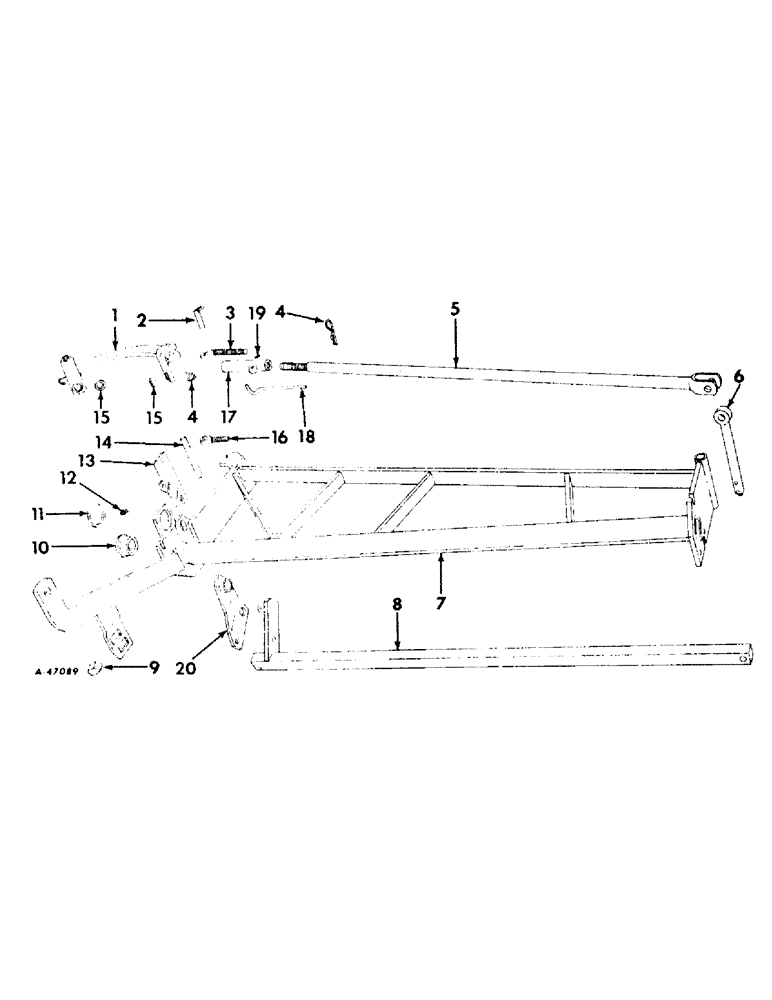

Запчасти Case IH 340 (X-02) - 7-FT CENTER FRAME, 1966 TO 1969

1

484546R91

FRAME ASSY, center 7 ft.

1шт.

2

484631R1

BRACE, center mast LH

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

484632R1

BRACE, center mast RH

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

484637R1

BRACE, outer mast LH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/5-11 C-Z hex.

1шт.

5

484638R1

BRACE, outer mast RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

6

515030R1

CLAMP

CCLAMP, hose

1шт.

7

471301R2

ANGLE

MOUNTING, hose clamp

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-1/2 C-Z sq-nk crg

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 C-Z wing

1шт.

8

484604R91

STAND ASSY, jack

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

1шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

1шт.

21970R1

PIN, 5/8 x 1-1/4 C-z std-hd

1шт.

591107R1

COTTER PIN

quick attachable cot.

1шт.

9

485334R1

BAR ASSY, cyl support

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.
