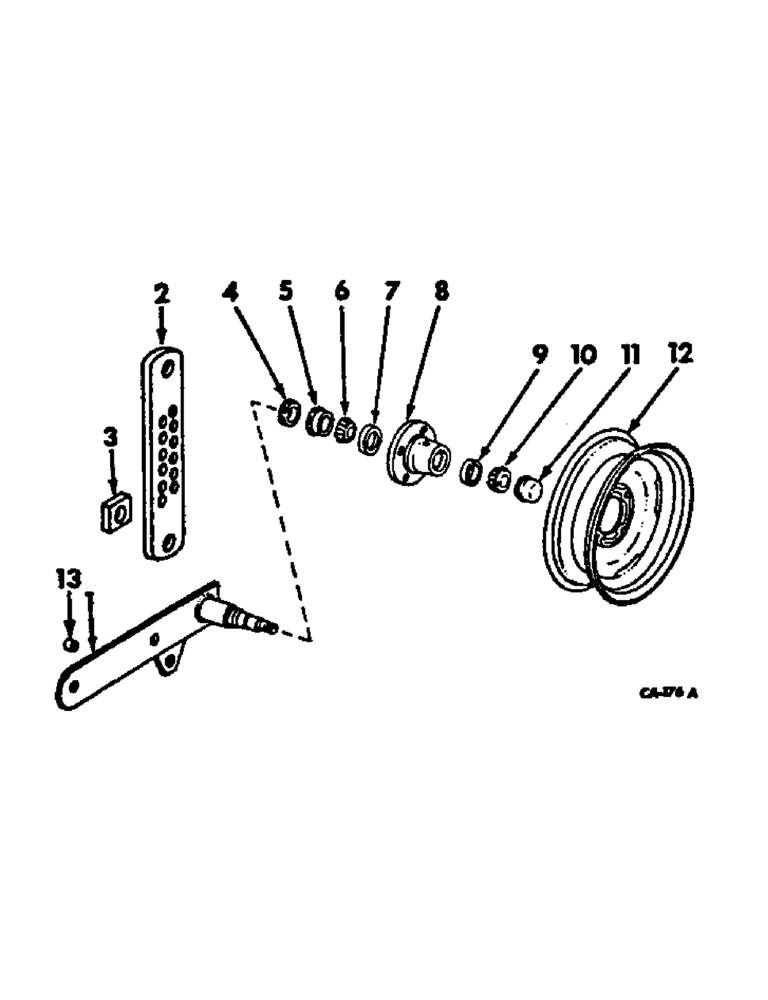

Запчасти Case IH 340 (X-11) - GAUGE WHEEL ATTACHMENT

1

492208R1

ARM ASSY, wheel LH

1шт.

1

492209R1

ARM ASSY, wheel RH

1шт.

2

484628R1

BAR, gauge shoe adjusting

2шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 C-Z hex-hd cap

2шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

4шт.

130354H

EXCITER

WASHER, 21/32 x 2 x 7 ga

2шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

6шт.

3

657960R1

SPACER, wheel arm

2шт.

4

472222R1

SLEEVE

oil seal

2шт.

5

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone

2шт.

7

651817R1

BEARING CUP

BEARING, inner cup

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

465492R2

HUB

wheel

2шт.

9

651814R1

BEARING CUP

BEARING, outer cup

2шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

11

651194R1

CAP

wheel hub

2шт.

12

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in.

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

special wheel

8шт.

69442D

NUT

slotted jam, on wheel spindle

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

13

484624R1

SPACER

4шт.
