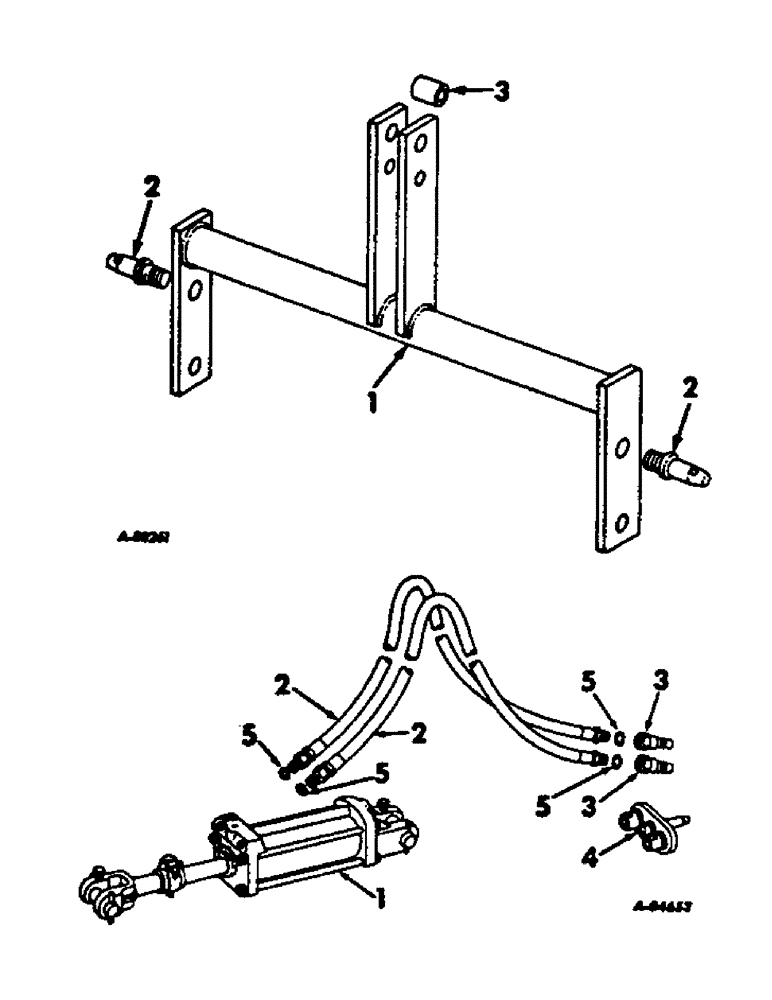

Запчасти Case IH 340 (X-09) - PRODUCT GRAPHICS

1

484600R91

SUPPORT ASSY

1шт.

281818

SCREW, 7/8-9 x 2-3/4 C-Z hex-hd cap

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

2

472790R2

STUD

PIN, lower link, category II

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

3

462425R1

SPACER

mast

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

1

371292R95

CYLINDER

hydraulic 3-1/2 x 8 in., refer to cyl, 1 for components, order cylinder 403842R92

1шт.

1

403842R94

CYLINDER

hyd 3-1/2 x 8 in., refer to cyl, 1 for components

1шт.

2

372437R91

HOSE

ASSY, hyd, 112 in.

2шт.

3

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male

2шт.

4

(Not used in this application)

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

1001029R3

DECAL

PRODUCT GRAPHIC, IH

1шт.

2751265R1

DECAL

PRODUCT GRAPHIC, International

1шт.

2754030R1

PRODUCT GRAPHIC

model designation

1шт.
