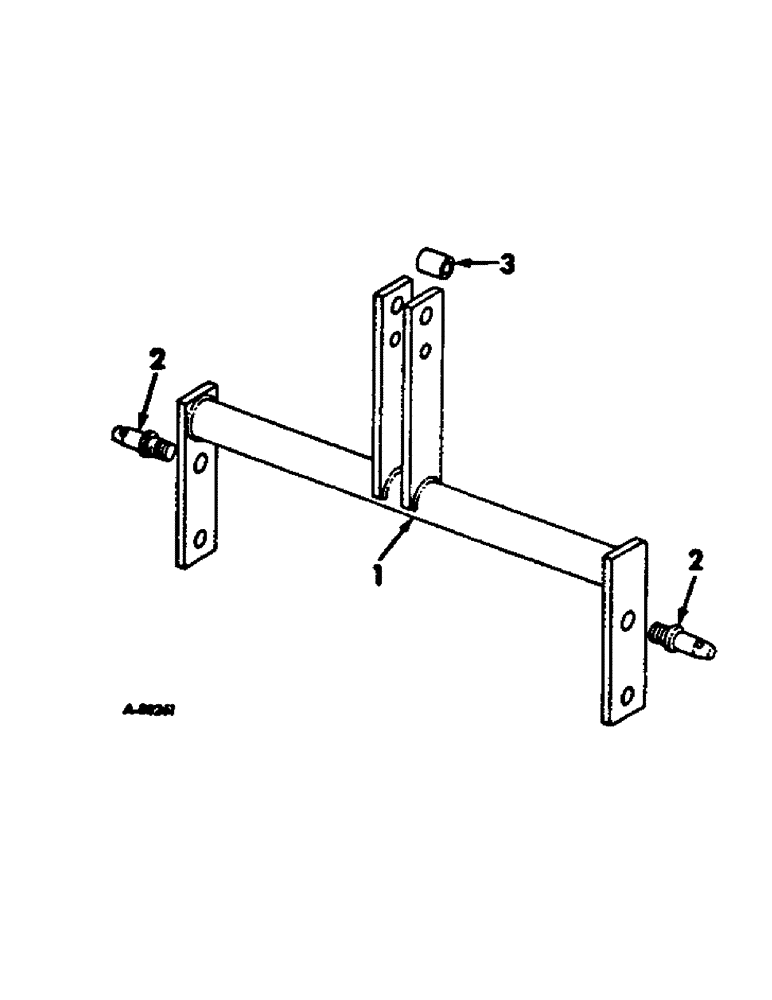

Запчасти Case IH 340 (X-09[A]) - THREE POINT HITCH, CATEGORY II, FOR 7 FT CENTER SECTION

1

484600R91

SUPPORT ASSY

1шт.

281818

SCREW, 7/8-9 x 2-3/4 C-Z hex-hd cap

2шт.

131047

WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

2

472790R2

STUD

PIN, lower link, category II

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

3

462425R1

SPACER

mast

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.
