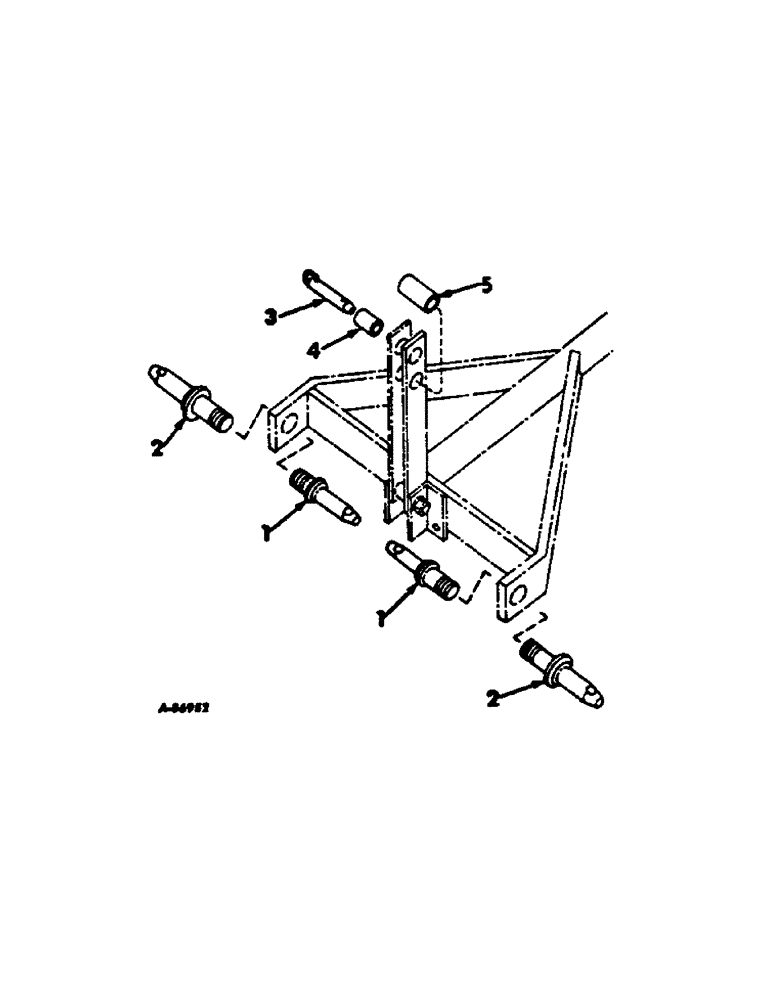

Запчасти Case IH 340 (X-08) - THREE POINT HITCH, CATEGORY I & II

1

484974R1

PIN, lower link, category I

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

2

472790R2

STUD

PIN, lower link, category II

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

3

380580R91

PIN

upper link, category II

1шт.

4

380582R1

BUSHING

upper link long, category II

1шт.

5

462425R1

SPACER

mast

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.
