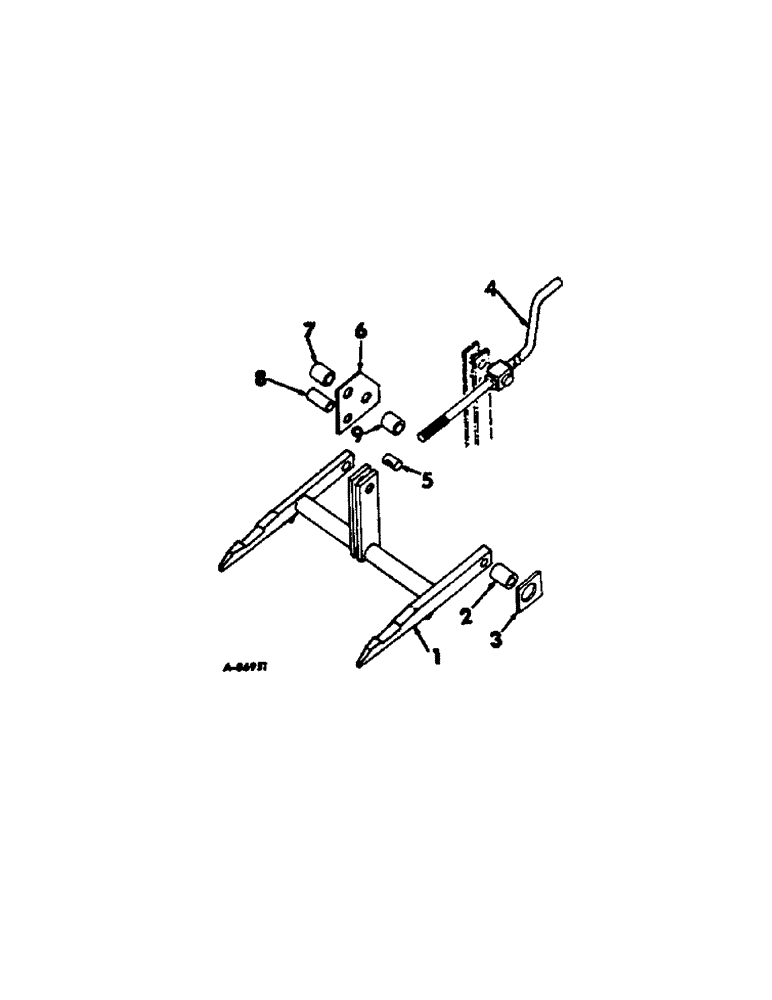

Запчасти Case IH 340 (X-08[A]) - TWO POINT FAST HITCH

1

484610R91

SUPPORT ASSY, two point

1шт.

2

484647R1

SPACER, beam bushing

2шт.

3

484648R1

BLOCK, beam

2шт.

22044R1

SCREW, 1-1/8-7 x 4-1/4 znd hex-hd cap

2шт.

446284

WASHER, 1-3/16 x 2-1/2 x .165 C-Z

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

2шт.

220094

NUT,1 1/8"-7, G5

1-1/8 C-Z med lock

2шт.

220089

DISC,1 1/8"-7, G5

1-1/8-7 hex.

2шт.

4

484614R91

CRANK ASSY

1шт.

5

484646R1

SWIVEL, hitch adjusting

1шт.

6

484643R1

BLOCK, swivel attaching

2шт.

7

484644R1

SPACER, mast

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap, used with drawbar assy

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd cap, used with 7 ft center section

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

8

23886K

SPACER, inner upper mast, used with drawabr assy

1шт.

9

484645R1

SPACER, upper mast

1шт.

17818R1

BOLT, 1 x 5 hex-hd mach

1шт.

121326

WASHER,1"

LOCK, 1"

1шт.

220083

NUT,1"-8, G5

1-8 hex., used with 7 ft center section

1шт.

271621

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4-10 x 4-1/2 hex-hd mach

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex., used with drawbar assy

1шт.
