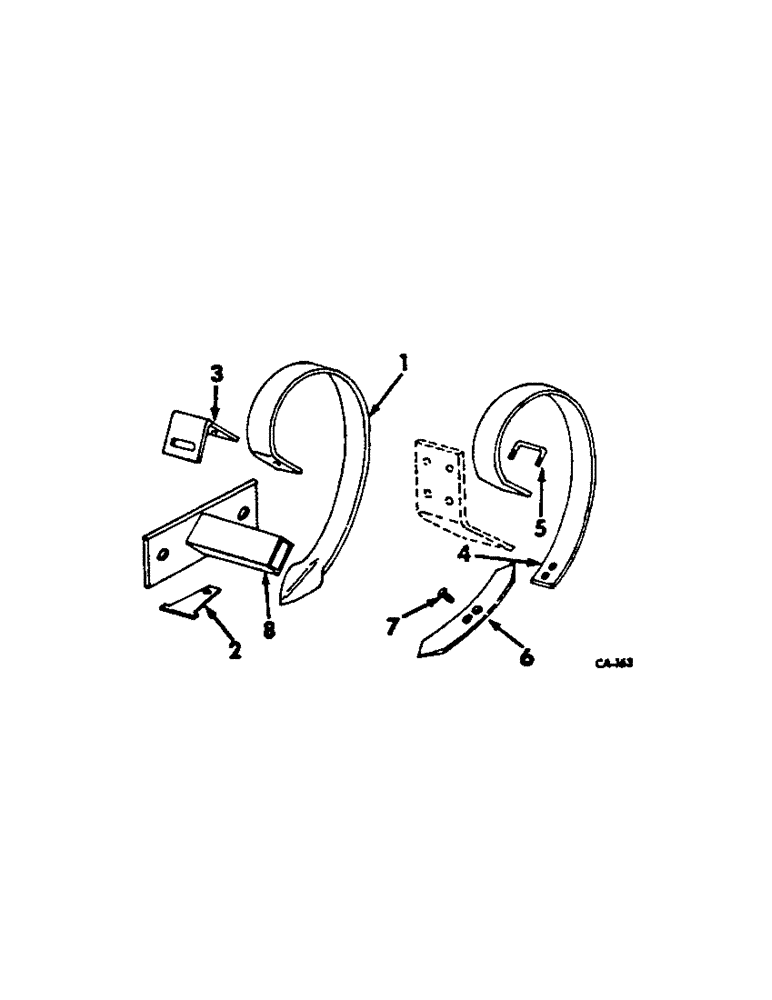

Запчасти Case IH 340 (X-07) - SPRING TEETH AND TOOTH EXTENSION ATTACHMENT

1

470963R2

SPRING

TOOTH, pointed spring, 1 per drawbar assy, also see note

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 C-Z hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex., 1 per drawbar assy

1шт.

180161

SCREW, 7/16-14 x 3-14 C-Z hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex., see note

1шт.

2

484625R1

STRAP

tooth locator, see note

1шт.

3

484623R1

ANGLE

tooth clamp, see note

1шт.

4

470964R11

SPRING

TOOTH W/DETACHABLE POINT, spring, heavy duty

1шт.

4

464762R1

TOOTH, quack grass spring

1шт.

5

523913R1

BOLT, U, used with drawbar assy

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam, use with drawbar assy

2шт.

6

5886

POINT

reversable tooth

1шт.

7

67821/2X

BOLT ASSY, reversable tooth point

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

8

484618R92

TUBE ASSY, extension LH

1шт.

8

484619R92

TUBE ASSY, extension RH

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8-11 x 2 znd hex-hd mach

2шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 C-Z hex-hd mach

2шт.

20511R1

WASHER, 5/8 znd med lock

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.
