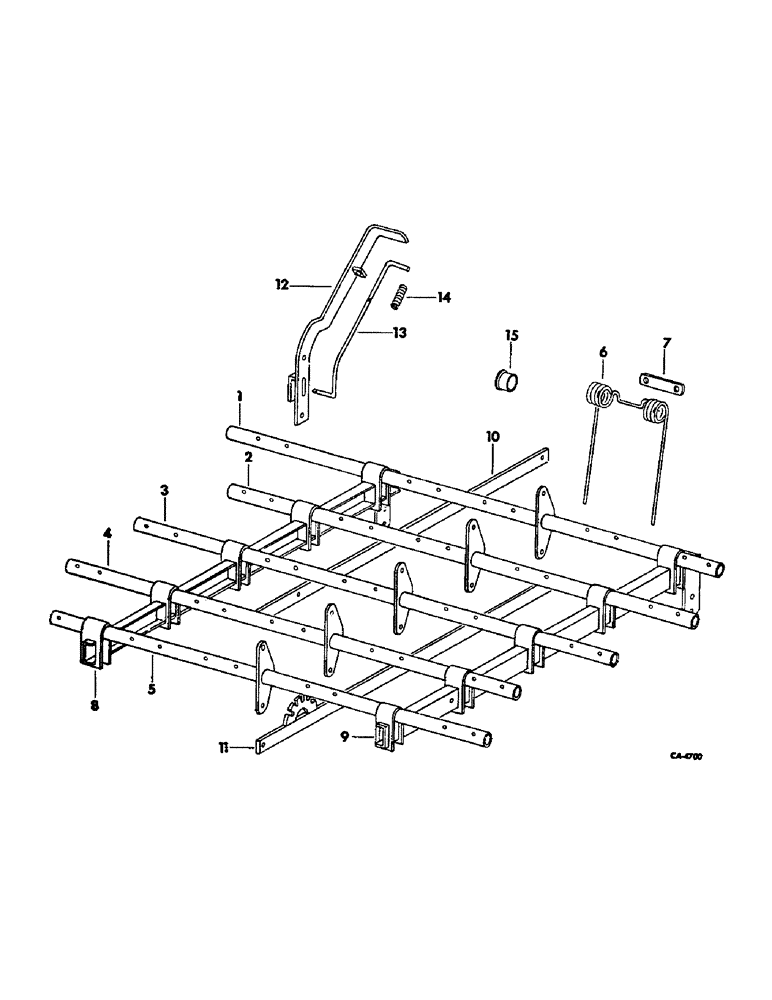

Запчасти Case IH 10 COIL (AQ-2) - PEG TOOTH SECTION, PRODUCT GRAPHICS

1

62900C1

BAR, tooth, 1st

1шт.

2

62901C1

BAR, tooth, 2nd

1шт.

3

62902C1

BAR, tooth, 3rd

1шт.

4

62903C1

BAR, tooth, 4th

1шт.

5

62904C1

BAR, tooth, 5th

1шт.

6

62905C1

TOOTH

11 in., 25

25шт.

7

62906C1

STRAP, tooth

25шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW,3/8-16 x 2-1/4 znd hex-hd cap

50шт.

120377

NUT,3/8" - 16, Gr 5

50шт.

8

63907C1

RAIL, side LH

1шт.

9

62908C1

RAIL, side RH

1шт.

10

62909C1

REACH

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1 znd hd

5шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

5шт.

11

62910C1

REACH ASSY

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1 znd hd

5шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

5шт.

12

62911C1

HANDLE, welded

1шт.

13

62912C1

LEVER

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

495-21044

WASHER,3/8"

(.438 x 1 x 16 ga) 3/8"

1шт.

14

62913C1

SPRING, comp

1шт.

118776

WASHER

.469 x .992 x 16 ga

10шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16-14 x 1-1/2 znd hex-hd mach

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

4шт.

15

B13886

WASHER

1.469 x 2 x .054

14шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

495-21044

WASHER,3/8"

(.438 x 1 x 16 ga) 3/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

547494R91

DECAL

PACKAGE, product graphic, consist of six IH trademarks

1шт.

547495R91

DECAL

PACKAGE, product graphic, consists of eight International trademarks

1шт.

547497R91

PACKAGE

product graphics, consists of eight model designation decals

1шт.
