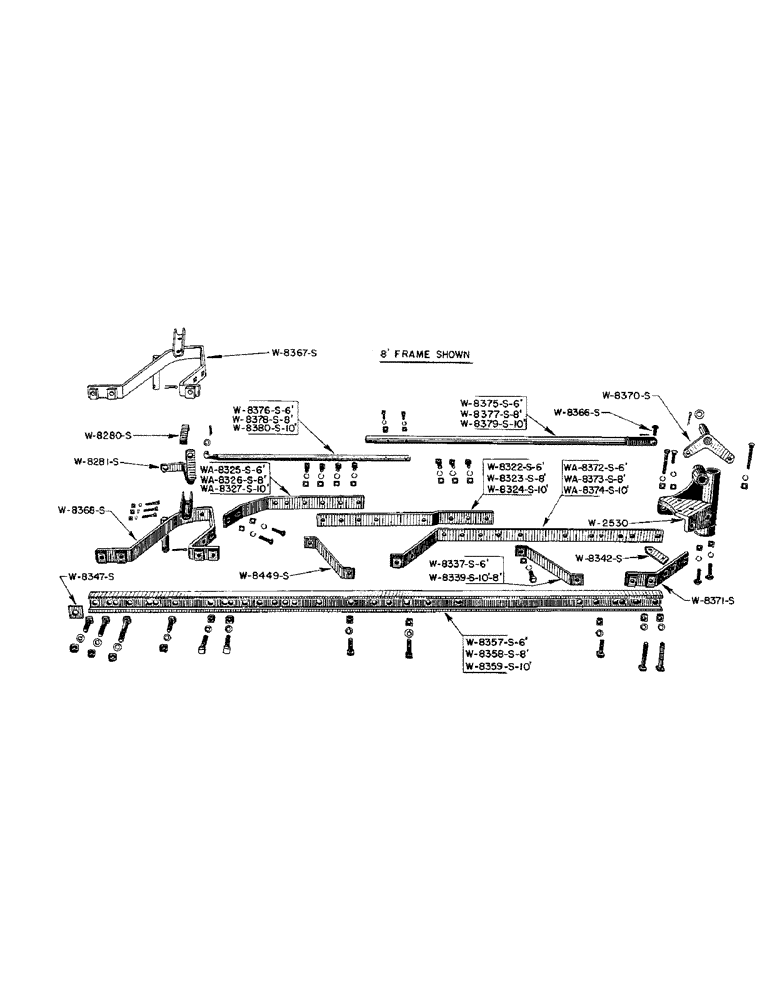

Запчасти Case IH WPH (08) - FRAME WPA PLOW, 8 FOOT SHOWN, 6 FOOT, 8 FOOT, 10 FOOT
№
Артикул
Название
Примечание
Количество
W2530
HEAD, front axle (YR. 44-)
1шт.
1/8" STRAIGHT LINCOLN FITTING #5000
2шт.
5/8" X 5-1/2" CARRIAGE BOLT W/LOCKWASHER AND NUT
1шт.
5/8" X 5-1/2" MACHINE BOLT W/LOCKWASHER AND NUT
1шт.
3/4" X 2-3/4" CARRIAGE BOLT W/LOCKWASHER AND NUT (6 ft.)
3шт.
3/4" X 3" CARRIAGE BOLT W/LOCKWASHER AND NUT (8 ft.) (10 ft.)
3шт.
W8280S
CAP, rear lift crank bearing (YR. 44-)
1шт.
W8281S
CRANK, rear lift (YR. 44-)
1шт.
1/4" STRAIGHT LINCOLN FITTING #5042
1шт.
W8322S
EXTENSION, front frame (YR. 44-) (6 ft.)
1шт.
3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
2шт.
3/4" X 2-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
1шт.
W8323S
EXTENSION, front frame (YR. 44-) (8 ft.)
1шт.
3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)
2шт.
3/4" X 3" MACHINE BOLT W/LOCKWASHER AND NUT
1шт.
W8324S
EXTENSION, front frame (YR. 44-) (10 ft.)
1шт.
3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)
2шт.
3/4" X 3" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)
1шт.
WA8325S
EXTENSION, power frame (YR. 44-) (6 ft.)
1шт.
3/4" X 2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
1шт.
3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
2шт.
WA8326S
EXTENSION, power frame (YR. 44-) (8 ft.)
1шт.
3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)
3шт.
WA8327S
EXTENSION, power frame (YR. 44-) (10 ft.)
1шт.
3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)
3шт.
W8337S
BRACE, beam to front frame (YR. 44-) (6 ft.)
1шт.
3/4" X 2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
1шт.
W8339S
BRACE, beam to front frame - front (YR. 44-) (8 ft.), (10 ft.)
1шт.
3/4" X 2-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (8ft.), (10 ft.)
1шт.
W8342S
CLEAT, front axle head clamp (YR. 44-)
1шт.
W8347S
BLOCK, beam filler (YR. 44-)
1шт.
W8357S
BEAM, 6 ft. (YR. 44-)
1шт.
7/8" X 3-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
3шт.
7/8" X 4-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
1шт.
7/8" X 4-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
1шт.
7/8" X 5" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
1шт.
7/8" X 5-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
1шт.
7/8" X 6-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
1шт.
W8358S
BEAM, 8 ft. (YR. 44-)
1шт.
7/8" X 3" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)
2шт.
7/8" X 3-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)
1шт.
7/8" X 3-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)
3шт.
7/8" X 4-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)
1шт.
7/8" X 5" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)
2шт.
7/8" X 5-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)
1шт.
7/8" X 7" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)
1шт.
W8359S
BEAM, 10 ft (YR. 44-)
1шт.
7/8" X 3" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)
2шт.
7/8" X 3-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)
1шт.
7/8" X 3-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)
3шт.
7/8" X 4-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)
1шт.
7/8" X 5" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)
2шт.
7/8" X 5-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)
1шт.
7/8" X 7" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)
1шт.
W8366S
RIVET, (3/4" x 1-7/8" round head drilled) lift pipe to bellcrank (YR. 44-)
1шт.
1/4" X 1-1/2" COTTER PIN
1шт.
W8367S
FRAME, power - 6 ft. plow (YR. 44-)
1шт.
1/8" STRAIGHT LINCOLN FITTING #5000 (6 ft.)
1шт.
3/8" X 2-1/2" COTTER PIN (6 ft.)
1шт.
5/8" X 2-3/4" CARRIAGE BOLT W/LOCKWASHER AND NUT (6 ft.)
2шт.
1/2" X 2-3/4" HEX. HEAD CAP SCREW W/LOCKWASHER AND NUT (6 ft.)
3шт.
W8368S
FRAME, power 8 ft. and 10 ft. plow (YR. 44-)
1шт.
1/8" STRAIGHT LINCOLN FITTING #5000 (8 ft.) (10 ft.)
1шт.
3/8" X 2-1/2" COTTER PIN (8 ft.) (10 ft.)
1шт.
5/8" X 2-3/4" CARRIAGE BOLT W/LOCKWASHER AND NUT (8 ft.) (10 ft.)
2шт.
1/2" X 2-3/4" HEX. HEAD CAPSCREW W/LOCKWASHER AND NUT (8 ft.) (10 ft.)
3шт.
W8370S
BELLCRANK, front axle head (YR. 44-)
1шт.
5/16" X 2-1/4" COTTER PIN
1шт.
2-1/4" X 1-9/16" X #16 GA. WROT WASHER
1шт.
W8371S
SUPPORT, front axle head (YR. 44-)
1шт.
WA8372S
FRAME, main - front 6 ft. (YR. 44-)
1шт.
WA8373S
FRAME, main - front 8 ft. (YR. 44-)
1шт.
WA8374S
FRAME, main - front 10 ft. (YR. 44-)
1шт.
W8375S
PIPE, lift - front section 6 ft. (YR. 44-)
1шт.
7/16" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)
2шт.
W8376S
PIPE, lift - rear section 6 ft. (YR. 44-)
1шт.
1-5/8" X 1-1/16" X #16 GA. WROT WASHER (6 ft.)
1шт.
1/4" X 1-1/2" COTTER PIN (6 ft.)
1шт.
W8377S
PIPE, lift - front section 8 ft. (YR. 44-)
1шт.
7/16" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)
2шт.
W8378S
PIPE, lift - rear section 8 ft. (YR. 44-)
1шт.
1-5/8" X 1-1/16" X #16 GA. WROT WASHER (8 ft.)
1шт.
1/4" X 1-1/2" COTTER PIN (8 ft.)
1шт.
W8379S
PIPE, lift - front section 10 ft. (YR. 44-)
1шт.
7/16" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)
2шт.
W8380S
PIPE, lift - rear section 10 ft. (YR. 44-)
1шт.
1/4" X 1-1/2" COTTER PIN (10 ft.)
1шт.
1-5/8" X 1-1/16" X #16 GA. WROT WASHER (10 ft.)
1шт.
W8449S
BRACE, inside rear (YR. 44-) (8 ft.), (10 ft.)
1шт.
3/4" X 3" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.) (10 ft.)
1шт.
Выбрано товаров: 90
