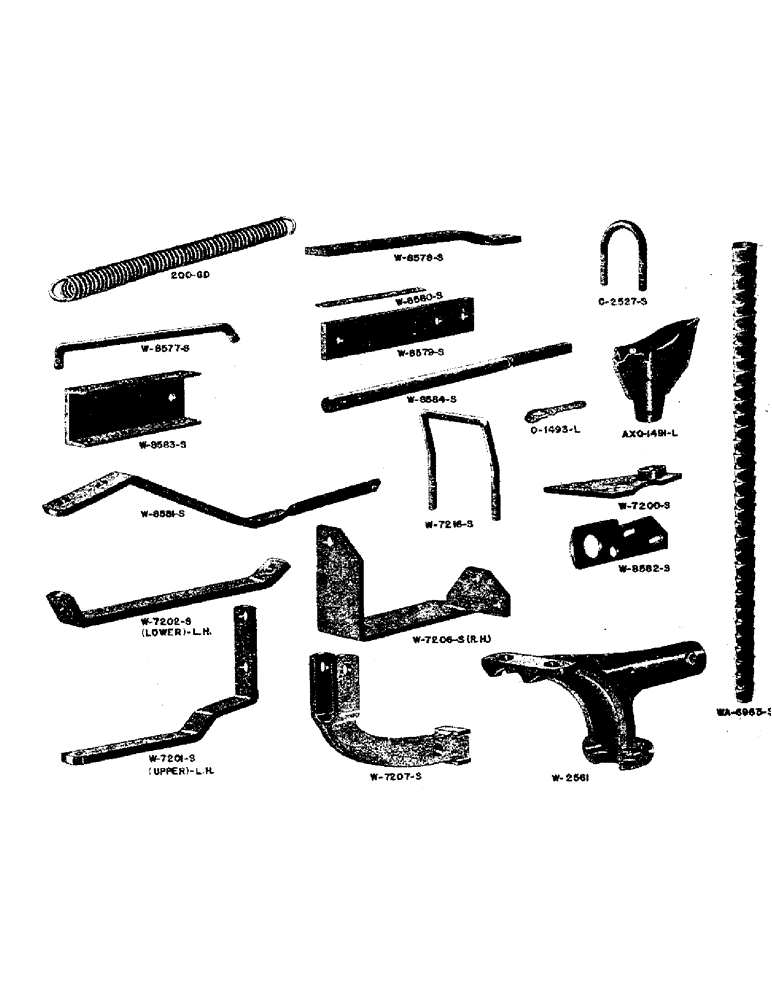

Запчасти Case IH WPH (65) - PARTS TO ATTACH WPA SEEDER TO WP PLOW 8 FOOT

W2561

MAIN AXLE BRACKET (YR. 45-)

1шт.

C2527S

"U" BOLT FOR MAIN AXLE BRACKET, 1/2" rd. x 8-7/8" (YR. 45-)

1шт.

AXO1491L

TUBE TOP COMPLETE (YR. 45-)

1шт.

O1493L

SPRING FOR TUBE TOP (YR. 45-)

1шт.

WA6963S

RIBBON TUBE (YR. 45-)

1шт.

W7200S

CRANK BEARING AND BRACKET SUPPORT - R.H., rear, 5 x 3/8 x 7" (YR. 45-)

1шт.

W7201S

HOPPER SUPPORT - L.H., upper, 1-1/2 x 1/2 x 23-1/2" (YR. 45-)

1шт.

W7202S

HOPPER SUPPORT - L.H., lower, 1-1/2 x 1/2 x 19-1/4" (YR. 45-)

1шт.

W7206S

HOPPER SUPPORT - R.H., 3 x 5/16 x 15-1/4" with standard (YR. 45-)

1шт.

W7207S

TIE ROD EXTENSION WITH CLIP, 1-1/2 x 7/16 x 13-3/4" (YR. 45-)

1шт.

W7216S

"U" BOLT FOR L.H. SUPPORT BRACKET, 5/8" rd. x 15-1/4" (YR. 45-)

1шт.

W8577S

SUPPORT LINK FOR JACK SHAFT FRAME, 1/2" rd. x 14-1/4" (YR. 45-)

1шт.

W8578S

PIVOT SHAFT SUPPORT ARM, 1-1/2 x 3/8 x 15-7/8" (YR. 45-)

1шт.

W8579S

EXTENSION FOR JACK SHAFT BRACE, 2 x 3/8 x 11" (YR. 45-)

1шт.

W8580S

EXTENSION FOR THROWOUT LINK, 3/4 x 1/8 x 7-1/2" (YR. 45-)

1шт.

W8581S

CENTER HOPPER BRACE - front, 1-1/2 x 3/8 x 29-1/2" (YR. 45-)

1шт.

W8582S

DRIVE SPROCKET ARM, 2-1/4 x 1/4 x 6-9/16" (YR. 45-)

1шт.

W8583S

BLOCK FOR HOPPER, 3 x 1-13/32 x 11/64 x 9" channel (YR. 45-)

1шт.

W8584S

DRIVE SHAFT, 3/4" rd. with extension (YR. 45-)

1шт.

200GD

ASSISTING SPRING, 19-5/8" long, 1-1/2" O.D., 15/16" I.D., 70 coils, pull (YR. 45-)

1шт.

DRIVE CHAIN EXTENSION, 11 links, no. 32 steel chain (YR. 45-)

1шт.
