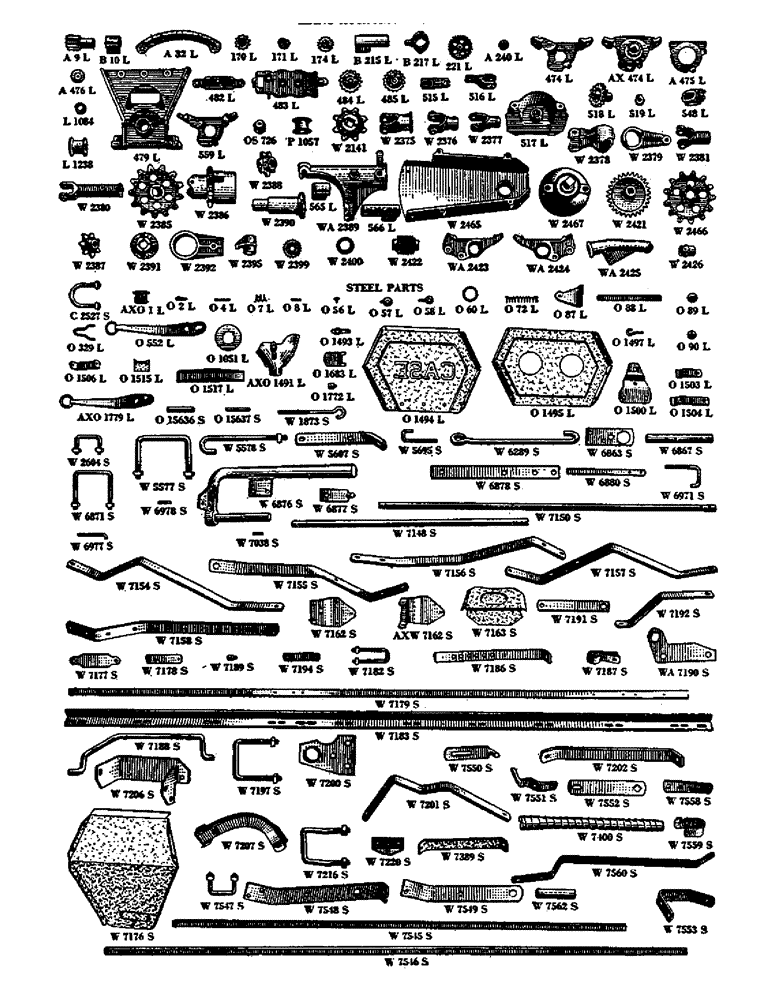

Запчасти Case IH WPH (60) - STEEL HOPPER SEEDING ATTACHMENT FOR WP SERIES, CAST PARTS,
№
Артикул
Название
Примечание
Количество
A9L
CORRUGATED CYLINDER (YR. 38-)
1шт.
B10L
SMOOTH PART OF CYLINDER (YR. 38-40)
1шт.
A32L
DIAL PLATE (YR. 38-)
1шт.
170L
DIAL GEAR FOR SMALL HAND (YR. 38-)
1шт.
171L
WORM FOR LAND MEASURE GEAR (YR. 38-)
1шт.
174L
GEAR FOR LAND MEASURE - 17 tooth (YR. 38-) (10 ft.)
1шт.
B215L
CUT-OFF AND SHIFTER SLEEVE (YR. 38-40)
1шт.
B217L
DIAL HAND SLEEVE (YR. 38-40)
1шт.
221L
29 TOOTH GEAR FOR LAND MEASURE (YR. 38-) (6 ft.)
1шт.
A240L
DIAL HAND SLEEVE WASHER (YR. 38-)
1шт.
474L
LARGE PART OF FEED CASE (YR. 38-40)
1шт.
AX474L
FEED CUP 474L COMPLETE (Use AXC 559L) (YR. 38-40)
1шт.
A475L
SMALL PART OF FEED CASE (YR. 38-)
1шт.
A476L
DIAL SLEEVE STUD WASHER (YR. 38-)
1шт.
479L
HOPPER END (YR. 38-)
1шт.
483L
LAND MEASURE DIAL (YR. 38-)
1шт.
483L17T
LAND MEASURE DIAL COMPLETE WITH 17 TOOTH GEAR 174L (YR. 38-) (10 ft.)
1шт.
483L21T
LAND MEASURE DIAL COMPLETE WITH 21 TOOTH GEAR W2399 (YR. 38-) (8 ft.)
1шт.
483L29T
LAND MEASURE DIAL COMPLETE WITH 29 TOOTH GEAR 221L (YR. 38-) (6 ft.)
1шт.
484L
DIAL GEAR FOR LARGE HAND - center (YR. 38-)
1шт.
485L
DIAL GEAR FOR LARGE HAND - upper (YR. 38-)
1шт.
548L
DIAL HAND SLEEVE (YR. 40-)
1шт.
A559L
LARGE PART OF FLUTED FEED CASE (YR. 40-)
1шт.
565L
SMOOTH PART OF CYLINDER (YR. 40-)
1шт.
566L
CUT-off and shifter sleeve (YR. 40-)
1шт.
L1084
SET COLLAR FOR DRIVE SHAFT (YR. 38-)
1шт.
L1238
CHAIN TIGHTENER ROLLER (YR. 38-)
1шт.
OS726
BLOCK FOR UNIVERSAL JOINT (YR. 38-)
1шт.
W2375
UNIVERSAL JOINT ON CLUTCH SLEEVE (YR. 38-)
1шт.
W2376
UNIVERSAL JOINT - upper (YR. 38-)
1шт.
W2377
UNIVERSAL JOINT ON DIAGONAL SHAFT (YR. 38-)
1шт.
W2378
CLUTCH THROWOUT CAM (YR. 38-)
1шт.
W2379
CLUTCH THROWOUT ARM (YR. 38-)
1шт.
W2380
UNIVERSAL JOINT SLIDE COUPLING (YR. 38-)
1шт.
W2381
UNIVERSAL JOINT ON SQUARE SHAFT (YR. 38-)
1шт.
W2385
CLUTCH SPROCKET (YR. 38-)
1шт.
W2386
DRIVE SPROCKET AND GREASE CAP (YR. 38-)
1шт.
W2387
SEED SHAFT SPROCKET (YR. 38-)
1шт.
W2388
SMALL DRIVE SPROCKET (YR. 38-)
1шт.
WA2389
BRACKET ON POWER AXLE (YR. 38-)
1шт.
W2390
CLUTCH SLEEVE (YR. 38-)
1шт.
W2391
CLUTCH (YR. 38-)
1шт.
W2392
SPACER BAR BEARING (YR. 38-)
1шт.
W2395
UNIVERSAL JOINT BUSHING (YR. 38-)
1шт.
W2399
21 TOOTH GEAR FOR LAND MEASURE (YR. 38-) (8 ft.)
1шт.
W2400
RETAINING WASHER (YR. 38-)
1шт.
W2421
SEED SHAFT GEAR (YR. 38-)
1шт.
W2422
LAND MEASURE WORM (YR. 38-)
1шт.
WA2423
HOPPER DRIVE SPROCKET BRACKET - R.H. (YR. 38-)
1шт.
WA2424
HOPPER DRIVE SPROCKET BRACKET - L.H. (YR. 38-)
1шт.
WA2425
SEEDER TUBE (YR. 38-)
1шт.
W2426
DRIVE SHAFT BUSHING (YR. 38-)
1шт.
C2527S
U BOLT FOR POWER AXLE AND BRACKET, 1/2" rd. x 8-7/8" (YR. 38-)
1шт.
AXO1L
FLUTED FEED GATE (YR. 38-)
1шт.
O2L
GATE LATCH, 3/8 x 1-1/16" no. 16 ga. (YR. 38-)
1шт.
O4L
GATE PIN, 1-7/8" long, no. 11 wire (YR. 38-)
1шт.
O8L
FEED SHAFT PIN (YR. 38-)
1шт.
O56L
SHOULDER RIVET FOR COVER LATCH (YR. 38-)
1шт.
O57L
SMALL LAND MEASURE HAND (YR. 38-)
1шт.
O58L
LARGE LAND MEASURE HAND (YR. 38-)
1шт.
O87L
STANDARD FOR COVER DEVICE, 2-3/4 x 5" no. 14 ga. (YR. 38-)
1шт.
O88L
CONNECTING BAR FOR COVER LATCH, 5/8 x 1/8 x 8-5/8" (YR. 38-)
1шт.
O552L
DIAL HAND WITH RING (works with B217L spool) (YR. 38-40)
1шт.
O1051L
CYLINDER RING (YR. 38-)
1шт.
AXO1491L
TUBE TOP COMPLETE WITH SPRING CLIP O1493L FOR TUBE (YR. 38-)
1шт.
O1493L
CLIP SPRING FOR TUBE (YR. 38-)
1шт.
O1494L
HOPPER END (YR. 38-)
1шт.
O1495L
HOPPER PARTITION (YR. 38-)
1шт.
O1497L
COVER LATCH EYEBOLT, 1/4" rd. (YR. 38-)
1шт.
O1500L
DIAL BRACKET (YR. 38-)
1шт.
O1503L
CENTER COVER HINGE, 1 x 3/16 x 3-3/4" (YR. 38-) (10 ft.)
1шт.
O1504L
HINGE AND COVER LATCH, 1 x 3/16 x 5-1/4" (YR. 38-)
1шт.
O1506L
LAND MEASURE CLIP, 7/8 x 1/8 x 6-1/4" (YR. 38-)
1шт.
O1515L
COVER SPACER, 1-15/16 x 2" no. 16 ga. (YR. 38-)
1шт.
O1517L
COVER LATCH SUPPORT (YR. 38-)
1шт.
O1772L
STUD FOR DIAL HAND AXO1779L (YR. 40-)
1шт.
AXO1779L
DIAL HAND WITH STUD AND RING (Works with 548L spool) (YR. 40-)
1шт.
O2852L
TUBE ASSY.
RIBBON TUBE, COMPLETE (YR. 49-)
1шт.
W7618S
HOPPER BOTTOM - works with 559L feed case (YR. 40-) (6 ft.)
1шт.
W7619S
HOPPER BOTTOM - works with 559L feed case (YR. 40-) (8 ft.)
1шт.
W7620S
HOPPER BOTTOM - works with 559L feed case (YR. 40-) (10 ft.)
1шт.
O15636S
PIN - 5/8" rd. x 3" (YR. 38-)
1шт.
O15367S
PIN - 3/8" rd. x 3" (YR. 38-)
1шт.
W2604S
"U" BOLT FOR HOPPER BRACE AND FRAME CROSS BAR, 1/2" rd. x 6-1/2" (YR. 38-) (8 ft.) (10 ft.)
1шт.
W5577S
"U" BOLT ASSISTING SPRING ANCHOR, 5/8" rd. x 15-1/2" (YR. 38-) (10 ft.)
1шт.
W5578S
ASSISTING SPRING EYEBOLT, 5/8" rd. (YR. 38-) (10 ft.)
1шт.
W5607S
ASSISTING SPRING BRACKET, 1-1/2 x 1/2 x 11-7/8" (YR. 38-) (10 ft.)
1шт.
W5695S
HOOK BOLT TUBE HOLDER ANGLE TO FRAME, 7/16" rd. x 6-3/8" (YR. 38-)
1шт.
W6289S
ASSISTING SPRING HOOK, 5/8" rd. x 20-5/8" (YR. 38-) (10 ft.)
1шт.
W6863S
DRIVE SPROCKET BRACKET ARM (YR. 38-)
1шт.
W6867S
UNIVERSAL JOINT SHAFT - upper, 1" rd. x 8-3/4" (YR. 38-)
1шт.
W6871S
"U" BOLT - rear hopper brace and beam, 1/2" rd. x 15-1/2" (YR. 38-)
1шт.
W6876S
JACK SHAFT BAR (YR. 38-)
1шт.
W6877S
CHAIN TIGHTENER BRACKET, 1-1/2 x 5/16 x 5-1/8" (YR. 38-)
1шт.
W6878S
STIFFENER BAR FOR JACK SHAFT, 1-1/2 x 3/8 x 16" (YR. 38-)
1шт.
W6880S
SLIDING SHAFT, 5/8" x sq. x 9-1/2" (YR. 38-)
1шт.
W6971S
HOOK BOLT TUBE HOLDER ANGLE TO FRONT - L.H., 7/16" rd. x 6-7/8" (YR. 38-) (8 ft.) (10 ft.)
1шт.
W6977S
LINCH PIN, 3/8" rd. x 4-1/8" (YR. 38-)
1шт.
W6978S
PIN IN JACK SHAFT, 5/16" rd. x 1-7/16" (YR. 38-)
1шт.
W7038S
PIN IN DRIVE SHAFT, 5/16" rd. x 1-1/4" (YR. 38-)
1шт.
W7148S
DRIVE SHAFT, 3/4" rd. x 29-11/16" (6 ft.) (YR. 38-)
1шт.
W7150S
DRIVE SHAFT, 3/4" rd. x 42-3/8" (8 and 10 ft.) (YR. 38-)
1шт.
W7154S
HOPPER SUPPORT CENTER, rear, 1-1/2 x 3/8 x 30-5/8" (YR. 38-)
1шт.
W7155S
HOPPER SUPPORT FRONT - center, 1-1/2" x 3/8 x 27"(YR. 38-) (6 ft.)
1шт.
W7156S
HOPPER SUPPORT FRONT - center, 1-1/2 x 3/8 x 28-1/4" (YR. 38-) (10 ft.)
1шт.
W7157S
HOPPER SUPPORT FRONT, L.H., 1-1/2 x 3/8 x 29" (YR. 38-) (10 ft.)
1шт.
W7158S
HOPPER SUPPORT FRONT - center, 1-1/2 x 3/8 x 28-1/4" (YR. 38-) (8 ft.)
1шт.
W7159S
BOX BOTTOM AND FEED CUP RAIL, 7/8 x 1/4 x 74-7/8" (YR. 38-) (6 ft.)
1шт.
W7160S
BOX BOTTOM AND FEED CUP RAIL, 7/8 x 1/4 x 101-7/8" (YR. 38-) (8 ft.)
1шт.
W7161S
BOX BOTTOM AND FEED CUP RAIL, 7/8 x 1/4 x 125-1/2" (YR. 38-) (8 ft.)
1шт.
W7162S
LAND MEASURE BRACKET, 4 x 1/8 x 5-3/4" (YR. 38-)
1шт.
AXW7162S
LAND MEASURE BRACKET WITH CLIP (YR. 38-)
1шт.
W7163S
HOPPER BOTTOM END IRON (YR. 38-)
1шт.
W7164S
HOPPER COVER, 6 ft. (2 required) (YR. 38-)
1шт.
W7165S
HOPPER COVER, 8 ft. (2 required) (YR. 38-)
1шт.
W7166S
HOPPER COVER, 10 ft. (2 required) (YR. 38-)
1шт.
W7167S
HOPPER SIDE - rear (6 ft.) (YR. 38-)
1шт.
W7168S
HOPPER SIDE - front (6 ft.) (YR. 38-)
1шт.
W7169S
HOPPER BOTTOM - (6 ft.) (Works with 474L feed case) (YR. 38-40)
1шт.
W7170S
HOPPER SIDE - rear (8 ft.) (YR. 38-)
1шт.
W7171S
HOPPER SIDE - front (8 ft.) (YR. 38-)
1шт.
W7172S
HOPPER BOTTOM (8 ft.) (Works with 474L feed case) (YR. 38-40)
1шт.
W7173S
HOPPER SIDE - rear (10 ft.) (YR. 38-)
1шт.
W7174S
HOPPER SIDE - front (10 ft.) (YR. 38-)
1шт.
W7175S
HOPPER BOTTOM (10 ft.) (Works with 474L feed case) (YR. 38-40)
1шт.
W7176S
BAFFLE PLATE (YR. 38-)
1шт.
W7177S
HOPPER END COVER, 1-3/4 x 6-7/8" no. 16 ga. (YR. 38-)
1шт.
W7178S
AGITATOR COVER ON BAFFLE PLATE (YR. 38-)
1шт.
W7179S
FEED SHAFT (6 ft.) 5/8" sq. x 78" (YR. 38-)
1шт.
W7180S
FEED SHAFT (8 ft.) 5/8" sq. x 104-5/8" (YR. 38-)
1шт.
W7181S
FEED SHAFT (10 ft.) 5/8" sq. x 129" (YR. 38-)
1шт.
W7182S
"U" BOLT - tube holder and frame, 7/16" rd. x 9-3/8" (YR. 38-) (6 ft.)
1шт.
W7183S
TUBE HOLDER ANGLE, 1-1/2 x 1-1/2 x 3/16 x 81-3/8" (YR. 38-) (6 ft.)
1шт.
W7184S
TUBE HOLDER ANGLE, 1-1/2 x 1-1/2 x 3/16 x 106-1/2" (YR. 38-) (8 ft.)
1шт.
W7185S
TUBE HOLDER ANGLE, 1-1/2 x 1-1/2 x 3/16 x 131-7/8" (YR. 38-) (10 ft.)
1шт.
W7186S
TUBE HOLDER ARM, 1-1/4 x 5/16 x 18-1/2" (YR. 38-)
1шт.
W7187S
TUBE HOLDER CLIP, 1 x 9" no. 20 ga. (YR. 38-)
1шт.
W7188S
CLUTCH THROWOUT CRANK, 5/8" rd. x 23-3/4" (YR. 38-)
1шт.
W7189S
STUD FOR CLUTCH THROWOUT LINK, rd. x 1-7/16" (YR. 38-)
1шт.
WA7190S
DRIVE SHAFT BEARING BRACKET (Rep. W7190S, inter.) (YR. 38-)
1шт.
W7191S
CLUTCH THROWOUT LINK, 1-1/4" x 1/4 x 9" (YR. 38-)
1шт.
W7192S
THROWOUT CRANK BRACE, 1-1/4 x 1/4 x 14-5/8" (YR. 38-)
1шт.
W7197S
"U" BOLT FOR HOPPER SUPPORT, 5/8" rd. x 15-1/4" (YR. 38-)
1шт.
W7200S
CRANK BEARING AND BRACKET SUPPORT, R.H., rear (YR. 38-)
1шт.
W7201S
L.H. HOPPER SUPPORT - upper, 1-1/2 x 1/2 x 23-1/2" (YR. 38-)
1шт.
W7202S
L.H. HOPPER SUPPORT - lower, 1-1/2 x 1/2 x 19-1/4" (YR. 38-)
1шт.
W7206S
HOPPER SUPPORT - R.H. (YR. 38-)
1шт.
W7207S
TIE ROD EXTENSION (YR. 38-)
1шт.
W7216S
"U" BOLT FOR HOPPER SUPPORT BRACE, 5/8" rd. x 15-1/4" (YR. 38-) (8 ft.)
1шт.
W7220S
CLUTCH THROWOUT BRACKET, 1-1/2 x 1-1/2 x 1/4 x 3-15/16" (YR. 38-)
1шт.
W7389S
WATER SHED FOR COVER, 1-5/8 x 12-3/4 x 16" ga. (YR. 38-)
1шт.
W7400S
TUBE,112 mm OD
RIBBON TUBE, 1-7/8" top, 1-1/8" bottom, 18" long (For cpt. see O2852L) (YR. 38-)
1шт.
O14330S
DRIVE CHAIN, 40 links no. 42 steel chain (YR. 38-)
1шт.
FEED SHAFT DRIVE CHAIN, 17 links, no. 32 steel chain (YR. 38-)
1шт.
CT29S
ASSISTING SPRING, 37-1/4" long, 1-3/4" O.D., 94 coils - pull (YR. 38-) (10 ft.)
1шт.
O7L
FLUTED FEED SPRING, 1" long, 1-1/6" O.D., 3 coils (YR. 38-)
1шт.
O72L
COVER SPRING, 3-3/4" long, 15/16" O.D., 11 coils, compression (YR. 38-)
1шт.
O89L
WASHER - connecting rod and cover device (YR. 38-)
1шт.
O90L
COVER DEVICE - washer, 1-1/8 x 3/16" no. 16 ga. (YR. 38-)
1шт.
O1518L
LAND MEASURE DIAL WHEEL SPRING, 1-1/2" long, 1/4" wide (YR. 38-)
1шт.
Y4
BUSHING FOR CLUTCH THROWOUT BRACE, 3/8 X 9/32" pipe (YR. 38-)
1шт.
131EB
LAND MEASURE SPRING, 2-7/8" long, x 17/32" O.D., 16 coils, compression (YR. 38-)
1шт.
209EB
CLUTCH THROWOUT SPRING, 2-3/4" long, 1-1/8" I.D., 9-1/2 coils, compression (YR. 38-)
1шт.
1610
SPINDLE
ZERK OILER (YR. 38-)
1шт.
516L
BEARING FOR AGITATOR (YR. 38-)
1шт.
517L
AGITATOR HOUSING (YR. 38-)
1шт.
518L
AGITATOR DRIVE GEAR (YR. 38-)
1шт.
519L
SET COLLAR ON ROD (YR. 38-)
1шт.
O329L
AGITATOR FINGER (YR. 38-)
1шт.
AXW7193S
AGITATOR ROD COMPLETE WITH 10 FINGERS (6 ft.) 7/16" rd. x 76-1/4" (YR. 38-)
1шт.
W7194S
END SUPPORT FOR ROD. 1 x 3/16 x 5-3/4" (YR. 38-)
1шт.
AXW7195S
AGITATOR ROD COMPLETE WITH 13 FINGERS (8 ft.) 7/16" rd. x 102-3/8" (YR. 38-)
1шт.
AXW7196S
AGITATOR ROD COMPLETE WITH 16 FINGERS (10 ft.) 7/16" rd. x 128" (YR. 38-)
1шт.
Выбрано товаров: 173
