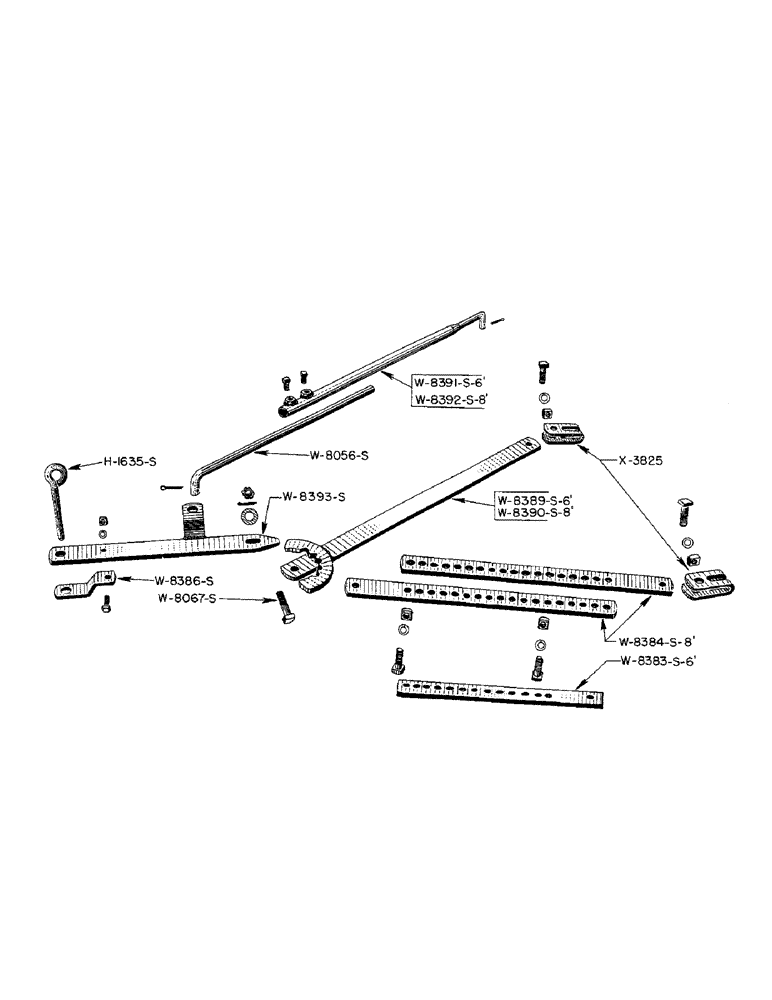

Запчасти Case IH WPH (04) - HITCH, 6 FOOT AND 8 FOOT PLOW

H1635S

PIN, clevis (YR. 44-)

1шт.

W38056S

HOOK, steering bar - front (YR. 44-)

1шт.

1/4" X 1-3/4" COTTER PIN

1шт.

W8067S

BOLT, machine (3/4" x 3" drilled w/hex. slotted nut) (YR. 44-)

1шт.

2" X 13/16" X #9 GA. WROT WASHER

1шт.

3/16" X 1" COTTER PIN

1шт.

W8383S

DRAW BAR, telescoping (YR. 44-) (6 ft.)

2шт.

3/4" X 2-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

2шт.

W8384S

DRAW BAR, telescoping (YR. 44-) (8 ft.)

2шт.

3/4" X 2-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

2шт.

W8386S

HAMMER STRAP, center hitch bar (YR. 44-)

1шт.

1/2" X 1-3/4" MACHINE BOLT W/LOCKWASHER AND NUT

1шт.

W8389S

HITCH BAR, R.H. (YR. 44-) (6 ft.)

1шт.

W8390S

HITCH BAR, R.H. (YR. 44-) (8 ft.)

1шт.

W8391S

PIPE, steering bar (YR. 44-) (6 ft.)

1шт.

5/8" X 1" C.P. SET SCREW (6 ft.)

2шт.

1/4" X 1-3/4" COTTER PIN (6 ft.)

1шт.

W8392S

PIPE, steering bar (YR. 44-) (8 ft.)

1шт.

5/8" X 1" C.P. SET SCREW (8 ft.)

2шт.

1/4" X 1-3/4" COTTER PIN (8 ft.)

1шт.

W8393S

HITCH BAR, center (YR. 44-)

1шт.

X3825

CLEVIS, draw bar (YR. 44-)

2шт.

3/4" X 2-1/2" MACHINE BOLT W/LOCKWASHER AND NUT

2шт.
