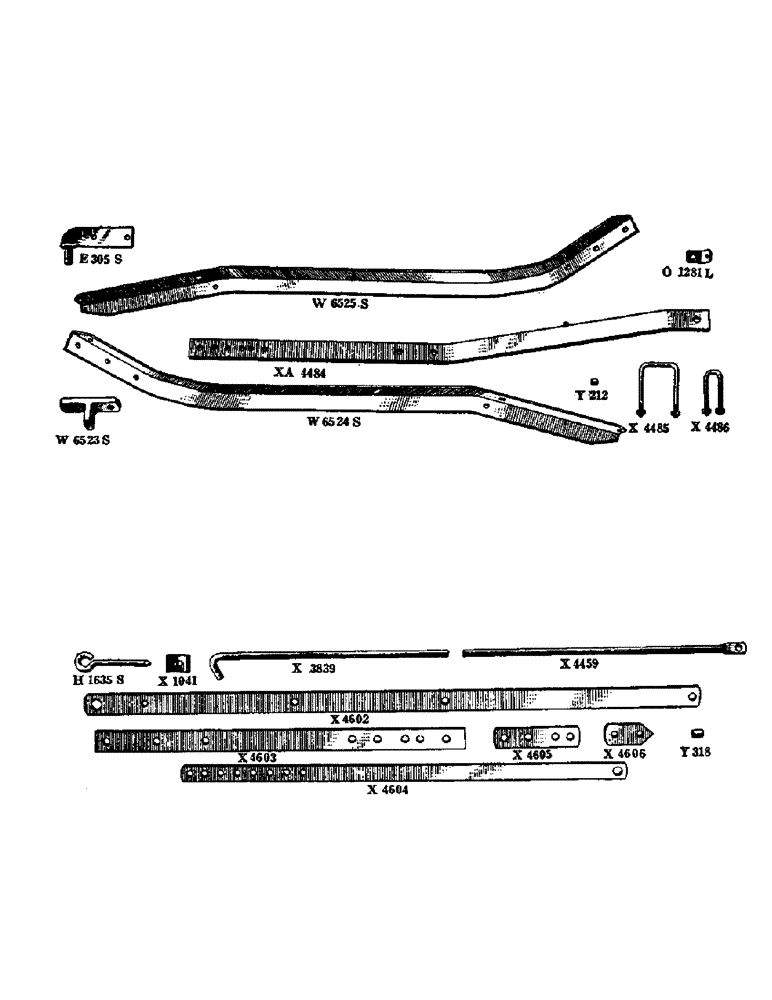

Запчасти Case IH WPH (56) - TRAILER HITCHES, EA181, NUMBER 91 TRAILER HITCH
№
Артикул
Название
Примечание
Количество
XA4484
HITCH BRACE, 2-1/2 x 3/4 x 62-1/2" (YR. 36-)
1шт.
X4485
WIDE "U" BOLT, 39/64" x 16" (YR. 36-)
1шт.
X4486
NARROW "U" BOLT, 39/64" x 11-1/4" (YR. 36-)
1шт.
E305S
CONNECTION TO TRACTOR, 1-1/2" rd. x 11" (YR. 37-) (No. 181)
1шт.
O1281L
CLIP - draw angle brace to front frame bar, 2-1/2 x 2 x 1/4 x 1-1/2" (YR. 37-) (No. 181)
1шт.
W6520S
DRAW ROD, 7/8" rd. x 115" (YR. 37-) (No.182)
1шт.
W6521S
DRAW ROD CLAMP, 2-1/2 x 3/4 xx 7-5/8" (YR. 37-) (No. 181) (No. 182)
1шт.
W6523S
DRAW CLAMP (YR. 37-) (No. 181) (No. 182)
1шт.
W6524S
DRAW ANGLE BRACE, R.H., 2-1/2 x 2 x 1/4 x 68-3/4" (YR. 37-) (No. 181)
1шт.
W6525S
DRAW ANGLE BRACE, L.H., 2-1/2 x 2 x 1/4 x 68-3/4" (YR. 37-) (No. 181)
1шт.
W6526S
DRAW ANGLE, R.H., 2-1/2 x 2 x 1/4 x 134" (YR. 37-) (No. 181)
1шт.
W6527S
DRAW ANGLE, L.H., 2-1/2 x 2 x 1/4 x 134" (YR. 37-) (No. 181)
1шт.
Y212
SPACER FOR DRAW ANGLE, 1/2 x 3/4" pipe (YR. 37-) (No. 181)
1шт.
H1635S
PIN FOR DRAW BAR, 3/4" rd. x 12" (YR. 36-) (No. 135)
1шт.
H1635S
PIN FOR DRAW BAR, 3/4" rd. x 12" (YR. 37-) (No. 187)
1шт.
W7044S
HITCH BAR, 2-1/2 x 3/4 x 32" (YR. 37-) (No. 187)
1шт.
W7066S
DRAW BAR, 2-1/2 x 3/4 x 94" (YR. 38-) (No. 135) (No. 187)
1шт.
X1041
GUIDE ROD CLAMP, 2 x 3/8 x 3-3/4" (YR. 36-) (No. 135)
1шт.
X1041
GUIDE ROD CLAMP, 2 x 3/8 x 3-3/4" (YR. 37-) (No. 187)
1шт.
X3839
SHORT GUIDE ROD, 7/8" rd. x 30-3/4" (YR. 36-) (No. 135)
1шт.
X3839
SHORT GUIDE ROD, 7/8" rd. x 30-3/4" (YR. 37-) (No. 187)
1шт.
X4459
LONG GUIDE ROD, 7/8" rd. x 34" (YR. 36-) (No. 135)
1шт.
X4459
LONG GUIDE ROD, 7/8" rd. x 34" (YR. 37-) (No. 187)
1шт.
X4602
DRAW BAR, 2-1/2 x 3/4 x 74-1/2" (YR. 36-38-) (No. 135)
1шт.
X4602
DRAW BAR, 2-1/2 x 3/4 x 74-1/2" (YR. 37-38-) (No. 187)
1шт.
X4603
HITCH BAR, 2-1/2 x 3/4 x 44-1/2" (YR. 36-) (No. 135)
1шт.
X4604
DRAW BAR BRACE, 2 x 1/2 x 54" (YR. 36-) (No. 135)
1шт.
X4604
DRAW BAR BRACE, 2 x 1/2 x 54" (YR. 37-) (No. 187)
1шт.
X4605
HITCH BAR BRACE, 2-1/2 x 1/2 x 10-1/2" (YR. 36-) (No. 135)
1шт.
X4605
HITCH BAR BRACE, 2-1/2 x 1/2 x 10-1/2" (YR. 37-) (No. 187)
1шт.
X4606
HITCH BAR AND BRACE CLIP SPACER, 2-1/2 x 5/8 x 6" (YR. 36-) (No. 135)
1шт.
X4606
HITCH BAR AND BRACE CLIP SPACER, 2-1/2 x 5/8 x 6" (YR. 37-) (No. 187)
1шт.
Y318
PIPE BUSHING FOR DRAW BAR, 3/4 x 1-1/4" (YR. 36-) (No. 135)
1шт.
Y318
PIPE BUSHING FOR DRAW BAR, 3/4 x 1-1/4" (YR. 37-) (No. 187)
1шт.
Выбрано товаров: 34
