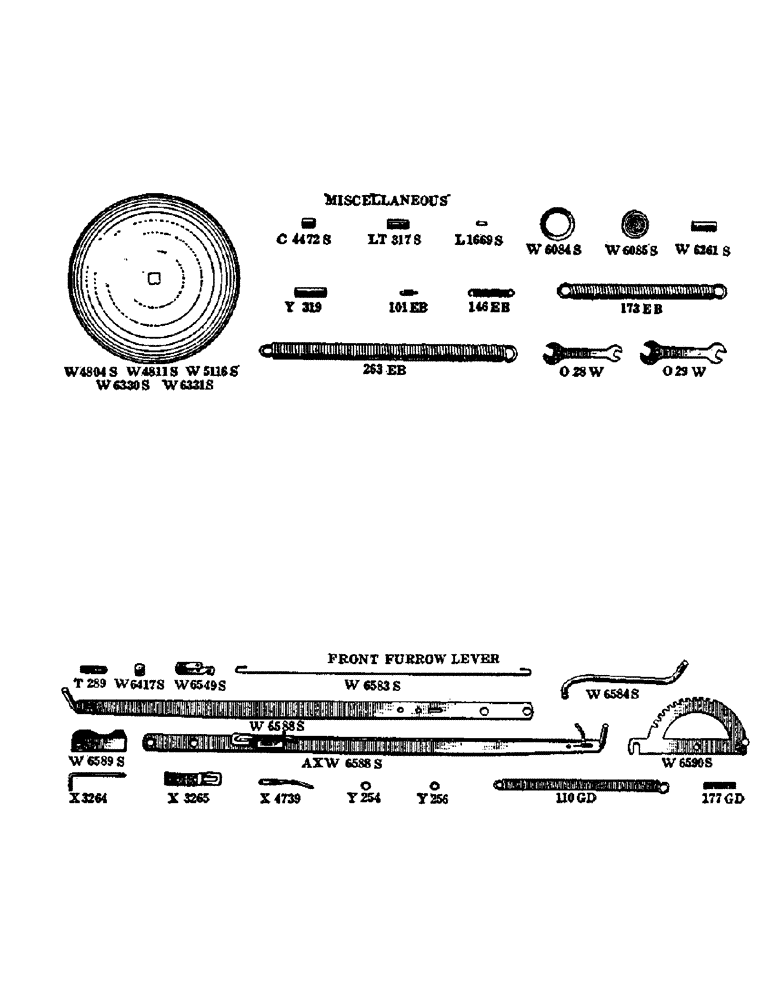

Запчасти Case IH WPH (54) - MISCELLANEOUS, FRONT FURROW LEVER, 6 FOOT, 8 FOOT, 10 FOOT

101EB

CLUTCH SPRING, 2" long, 1/2" I.D., 18 coils - pull (YR. 36-)

1шт.

146EB

TRIP LEVER SPRING, 5-1/4" long, 9/16" I.D. 35 coils - pull (YR. 36-)

1шт.

200GD

LIFT SPRING, 19-5/8" long, 1-1/2" O.D., 15/16" I.D., 70 coils, pull (YR. 41-)

1шт.

263EB

LIFT SPRING, 29-1/2" long, 1" I.D., 73 coils - pull (YR. 41-)

1шт.

279EB

LIFT SPRING, 19" long, 1-1/2" O.D., 75 coils - pull (YR. 41-)

1шт.

W5273S

PIPE BUSHING IN GANG HANGERS, 3/4 x 11/16" pipe (YR. 41-)

1шт.

1627

ZERK OILER, 1/4" straight fitting (YR. 36-)

1шт.

1610

SPINDLE

ZERK OILER, 1/8" straight fitting (YR, 36-)

1шт.

W7659S

DOUBLE END WRENCH, 3/4" and 1-1/8" openings (YR. 36-)

1шт.

W7660S

DOUBLE END WRENCH, 15/16" and 1-5/16" openings (YR. 36-)

1шт.

O301L

SPACER FOR LOCK, 1/4 x 1-3/4" pipe (YR. 39-)

1шт.

C4472S

PIPE SPACER FOR BEAM EXTENSION, 3/4 x 1-3/8" (Use O734FS) (YR. 36-)

1шт.

W4804S

DISK, 20" diameter, no. 7 ga., 2-1/2" concavity, heat treated (YR. 36-)

1шт.

W4811S

DISK, 20" diameter, no. 9 ga., 2-1/2" concavity, heat treated (YR. 36-)

1шт.

W5116S

DISK, 20" diameter, no. 5 ga., 2-1/2" concavity, heat treated (YR. 36-)

1шт.

W6330S

DISK, 24" diameter, no. 7 ga., 3-11/16" concavity, heat treated - bdl. 8257 (YR. 36-)

1шт.

W6331S

DISK, 26" diameter, 3/16" ga., 4" concavity, heat treated bdl. 8258 (YR. 36-)

1шт.

W7409S

DISK, 26" diameter, 3/16" ga., 4" concavity, 1-1/16" sq. hole, super alloy, H.T. (YR. 40-)

1шт.

LT317S

SPACER - rear gang hanger, 3/4 x 2-1/2" pipe_ (Use O8336 HT) (YR. 36-40-)

1шт.

W6084S

FELT WASHER, 4" O.D. x 3" I.D. x 7/16" thick (YR. 36-)

1шт.

W6085S

FELT WASHER FOR GEAR CASE, 1/2" wide x 3/16" thick x 37" long (YR. 36-)

1шт.

WA7627S

GASKET FOR CLUTCH CASE (YR. 40-)

1шт.

W6261S

SPACER FOR CENTER GANG HANGER, 3/4" x 2-3/4" pipe (YR. 36-40-)

1шт.

Y319

SPACER FOR FRONT GANG HANGER, 3/4 x 3-1/2" pipe (YR. 36-40-)

1шт.

TRIP ROPE, 1/4 x 156" sisal (YR. 36-)

1шт.

L1669S

KEY FOR CLUTCH TRIP LEVER AND CRANK, 5/16 x 1/4 x 1-1/8" (YR. 36-)

1шт.

V

WOODRUFF KEY FOR CLUTCH (YR. 36-)

1шт.

3/8" PIPE PLUG FOR GEAR CASE (YR. 36-)

1шт.

1/2" PIPE PLUG FOR D323 OR W2499 (YR. 36-)

1шт.

BOLT FOR AXLE AND CLUTCH CASE, 5/8" x 2-1/2" P 3 (SAE 1035 H.T.) (YR. 36-)

1шт.

W7058S

WASHER FOR POWER AXLE SHAFT, 2-1/4 x 1-13/16" x no. 16 ga. (YR. 36-)

1шт.

W7052S

WASHER

FOR POWER AXLE SHAFT, 3 x 1-13/16" x no. 16 ga. (YR. 36-)

1шт.

X4362

WASHER FOR POWER AXLE, 3 x 2-1/16" x no. 12 ga. (YR. 36-)

1шт.

T289

LATCH BRACKET (YR. 36-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

W6417S

SPACER FOR QUADRANT PIN, 1 x 3/4" pipe (Use O5963HT) (YR. 36-), front furrow lever, 6 ft, 8 ft, 10 ft

1шт.

W6549S

SPRING ANCHOR, 1 x 1/4 x 8-1/8" (YR. 36-), front furrow lever, 6 ft, 8 ft, 10 ft

1шт.

W6583S

PLUNGER ROD, 3/16" rd. x 38" (YR. 36-), front furrow lever, 6 ft, 8 ft, 10 ft

1шт.

WA6584S

LIFT LINK, 3/4" rd. x 17" (Rep. W6584S, inter.) (YR. 36-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

W6588S

FRONT LEVER, 2 x 1/2 x 55" (YR. 36-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

AXW6588S

FRONT LEVER COMPLETE (YR. 36-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

W6589S

BRACKET, 2 x 1-1/2 x 1/4 x 6-1/4" angle (YR. 36-42-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

W6590S

QUADRANT (YR. 36-42-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

W8249S

BRACKET FOR FRONT LEVER, 2 x 1-1/2 x 1/4 x 9-1/8" (YR. 41-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

W8250S

QUADRANT (Rep. W6590S) (YR. 41-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

X3264

PLUNGER, 7/16" rd. x 7-3/4" (YR. 36-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

X3265

PLUNGER CASE (YR. 36-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

X4739

HAND LATCH (YR. 36-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

Y254

SPACER - QUADRANT AND BRACKET, 1/2 x 1/2" pipe (YR. 36-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

Y256

BUSHING FOR LEVER, 1/2 x 9/16" pipe (YR. 36-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

177GD

SPRING

PLUNGER SPRING (YR. 36-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.

110GD

LIFT SPRING (YR. 36-42-), front furrow lever 6 ft, 8 ft, 10 ft

1шт.
