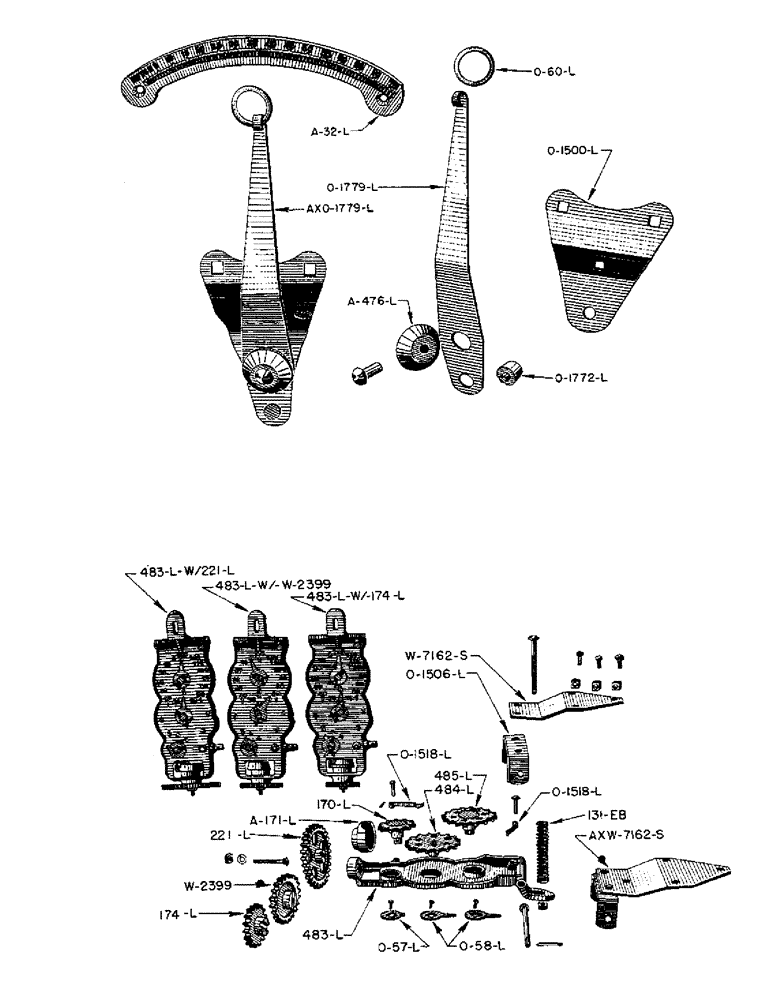

Запчасти Case IH WPH (43) - DIAL HAND, 6 FOOT, 8 FOOT, 10 FOOT

A32L

PLATE, dial (YR. 44-)

1шт.

A476L

WASHER, stud - dial sleeve (YR. 44-)

1шт.

3/8" X 1" RD. HD. RIVET

1шт.

O60L

RING, dial hand (YR. 44-)

1шт.

O1500L

BRACKET, dial hand mounting (YR. 44-)

1шт.

1/4" X 1/2" C/SUNK HD. STOVE BOLT W/NUT

2шт.

5/16" X 1-1/4" CARRIAGE BOLT W/LOCKWASHER AND NUT

1шт.

O1772L

STUD, dial hand (YR. 44-)

1шт.

O1779L

HAND, dial (YR. 44-)

1шт.

AXO1779L

HAND, dial - cpt (YR. 44-)

1шт.

170L

GEAR, dial - small hand (11 tooth) (YR. 44-), land measure 6 ft, 8 ft, 10 ft

1шт.

3/32" X 3/4" COTTER PIN, land measure, 6 ft, 8 ft, 10 ft

1шт.

A171L

WORM, land measure gear (YR. 44-), land measure 6 ft, 8 ft, 10 ft

1шт.

3/16" X 1-1/2" CARRIAGE BOLT W/LOCKWASHER AND NUT, land measure 6 ft, 8 ft, 10 ft

1шт.

174L

GEAR (17 tooth) (YR. 44-) (10 ft.) land measure

1шт.

221L

GEAR (29 tooth) (YR. 44-) (6 ft.), land measure

1шт.

483L

DIAL, land measure (YR. 44-), land meaure 6 ft, 8 ft, 10 ft

1шт.

483L

COMPLETE W/GEAR 174L (YR. 44-) (10 ft.), land measure

1шт.

483L

COMPLETE W/GEAR 221L (YR. 44-) (6 ft.), land measure

1шт.

483L

COMPLETE W/GEAR W2399 (YR. 44-) (8 ft.), land measure

1шт.

484L

GEAR, dial - center (16 tooth) (YR. 44-), land measure 6 ft, 8 ft, 10 ft

1шт.

3/32" X 3/4" COTTER PIN, land measure 6 ft, 8 ft, 10 ft

1шт.

485L

GEAR, dial - upper (16 tooth) (YR. 44-), land measure 6 ft, 8 ft, 10 ft

1шт.

3/32" X 3/4" COTTER PIN, land measure 6 ft, 8 ft, 10 ft

1шт.

W2399

GEAR (21 tooth) (YR. 44-) (8 ft.), land measure

1шт.

O57L

SMALL HAND (YR. 44-), land measure 6 ft, 8 ft, 10 ft

1шт.

O58L

LARGE HAND (YR. 44-), land measure 6 ft, 8 ft, 10 ft

2шт.

O1506L

STRAP, land measure bracket (YR. 44-), land measure 6 ft, 8 ft, 10 ft

1шт.

1/4" X 3-3/4" RD. HD. RIVET DRILLED, land measure 6 ft, 8 ft, 10 ft

1шт.

3/32" X 3/4" COTTER PIN, land measure 6 ft, 8 ft, 10 ft

1шт.

O1518L

SPRING, flat - dial hand (YR. 44-), land measure 6 ft, 8 ft, 10 ft

2шт.

3/16" X 1/2" RD. HD. RIVET, land measure 6 ft, 8 ft, 10 ft

1шт.

3/16" X 5/8" RD. HD. RIVET, land measure 6 ft, 8 ft, 10 ft

1шт.

W7162S

BRACKET, land measure (YR. 44-), land measure 6 ft, 8 ft, 10 ft

1шт.

1/4" X 3" CARRIAGE BOLT W/LOCKWASHER AND NUT, land measure 6 ft, 8 ft, 10 ft

1шт.

3/8" X 3/4" CARRIAGE BOLT W/LOCKWASHER AND NUT, land measure 6 ft, 8 ft, 10 ft

1шт.

AXW7162S

BRACKET, complete w/strap O1506l (YR. 44-), land measure 6 ft, 8 ft, 10 ft

1шт.

131EB

SPRING, (17/32" O.D. x 3/8" I.D. 2-7/8" long 7-1/2 open coil compression) (YR. 44-), land measure 6 ft, 8 ft, 10 ft

1шт.
