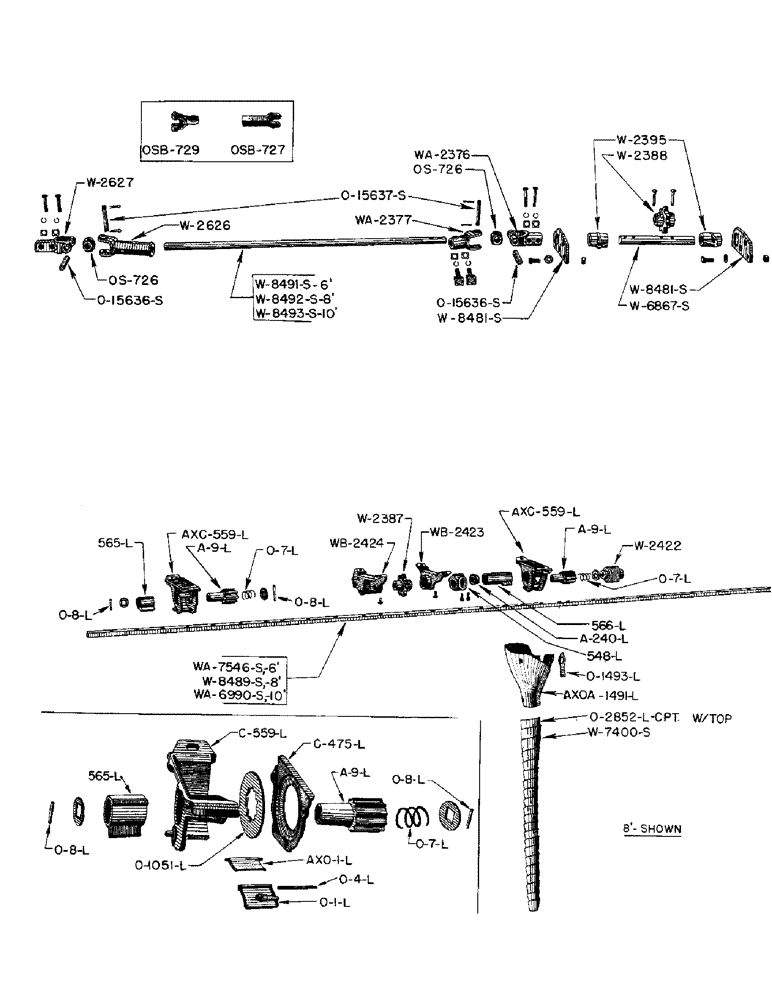

Запчасти Case IH WPH (38) - JACKSHAFT AND UNIVERSAL JOINT, 6 FOOT, 8 FOOT, 10 FOOT, FEED SHAFT

OS726

BLOCK, universal joint (YR. 44-)

2шт.

OSB727

COUPLING, slide - universal joint (Rep. by W2626) (YR. 44-46)

1шт.

OSB729

DRIVE, universal joint (Rep. by W2627) (YR. 44-46-)

1шт.

WA2376

JOINT, universal - on jackshaft (YR. 44-)

1шт.

5/16" X 1-3/4" MACHINE BOLT W/LOCKWASHER AND NUT

2шт.

WA2377

JOINT, universal - on diagonal shaft front (YR. 44-)

1шт.

5/16" X 1-3/4" RD. HD. RIVET

2шт.

W2388

SPROCKET, on jackshaft (8 tooth) (YR. 44-)

1шт.

5/16" X 1-3/4" RD. HD. RIVET

2шт.

W2395

BEARING, jackshaft (YR. 44-)

2шт.

W2626

JOINT, universal - on diagonal shaft rear (YR. 46-)

1шт.

W2627

JOINT, universal - driver (YR. 46-)

1шт.

5/16" X 1-3/4" MACHINE BOLT W/LOCKWASHER AND NUT

2шт.

O15636S

PIN, large (5/8" x 3") For universal joints (YR. 44-)

2шт.

O15637S

PIN, small (3/8" x 3") For universal joints (YR. 44-)

2шт.

1/8" X 3/4" COTTER PIN

4шт.

W6867S

JACKSHAFT, upper (1" rd. x 8-3/4" long) (YR. 44-)

1шт.

W8481S

BRACKET, feed shaft to jackshaft connection (YR. 44-)

2шт.

3/8" X 1" MACHINE BOLT W/LOCKWASHER AND NUT

4шт.

W8491S

SHAFT, drive - diagonal (YR. 44-) (6 ft.)

1шт.

W8492S

SHAFT, drive - diagonal (YR. 44-) (8 ft.)

1шт.

W8493S

SHAFT, drive - diagonal (YR. 44-) (10 ft.)

1шт.

A9L

CYLINDER, corrugated (YR. 44-) (6 ft.), feed shaft

9шт.

A9L

CYLINDER, corrugated (YR. 44-) (8 ft.), feed shaft

13шт.

A9L

CYLINDER, corrugated (YR. 44-) (10 ft.), feed shaft

16шт.

A240L

WASHER, dial hand sleeve (YR. 44-), feed shaft

1шт.

C475L

PLATE, side - for feed cup (YR. 44-) (6 ft.), feed shaft

9шт.

C475L

PLATE, side - for feed cup (YR. 44-) (8 ft.), feed shaft

13шт.

C475L

PLATE, side - for feed cup (YR. 44-) (10 ft.), feed shaft

16шт.

1/8" X 3/16" RD. HD. RIVET (6 ft.), feed shaft

9шт.

1/8" X 3/16" RD. HD. RIVET (8 ft.), feed shaft

13шт.

1/8" X 3/16" RD. HD. RIVET (10 ft.), feed shaft

16шт.

1/8" X 3/4" RD. HD. RIVET (6 ft.), feed shaft

27шт.

1/8" X 3/4" RD. HD. RIVET (8 ft.), feed shaft

39шт.

1/8" X 3/4" RD. HD. RIVET (10 ft.), feed shaft

48шт.

548L

SPOOL, dial hand (YR. 44-), feed shaft

1шт.

3/8" X 3/4" C.P. SET SCREW, feed shaft

2шт.

C559L

FEED CUP, large part (YR. 44-) (6 ft.), feed shaft

9шт.

C559L

FEED CUP, large part (YR. 44-) (8 ft.), feed shaft

13шт.

C559L

FEED CUP, large part (YR. 44-) (10 ft.), feed shaft

16шт.

AXC559L

FEED CUP, complete (YR. 44-) (6 ft.), feed shaft

9шт.

AXC559L

FEED CUP, complete (YR. 44-) (8 ft.), feed shaft

13шт.

AXC559L

FEED CUP, complete (YR. 44-) (10 ft.), feed shaft

16шт.

5/16" X 1-1/4" CARRIAGE BOLT W/LOCKWASHER AND NUT (6 ft.), feed shaft

18шт.

5/16" X 1-1/4" CARRIAGE BOLT W/LOCKWASHER AND NUT (8 ft.), feed shaft

26шт.

5/16" X 1-1/4" CARRIAGE BOLT W/LOCKWASHER AND NUT (10 ft.), feed shaft

32шт.

565L

SLEEVE, corrugated cylinder (YR. 44-) (6 ft.), feed shaft

8шт.

565L

SLEEVE, corrugated cylinder (YR. 44-) (8 ft.), feed shaft

12шт.

565L

SLEEVE, corrugated cylinder (YR. 44-) (10 ft.), feed shaft

15шт.

566L

SLEEVE, dial hand (YR. 44-), feed shaft

1шт.

W2387

SPROCKET, feed shaft (YR. 44-), feed shaft

1шт.

W2422

GEAR, worm (YR. 44-), feed shaft

1шт.

WB2423

BRACKET, R.H. feed shaft sprocket (YR. 44-), feed shaft

1шт.

5/16" X 1-1/4" MAHINE BOLT W/LOCKWASHER AND NUT, feed shaft

2шт.

WB2424

BRACKET, L.H. feed shaft sprocket (YR. 44-), feed shaft

1шт.

5/16" X 1-1/4" MACHINE BOLT W/LOCKWASHER AND NUT, feed shaft

2шт.

O1L

GATE, feed cup (YR. 44-) (6 ft.), feed shaft

9шт.

O1L

GATE, feed cup (YR. 44-) (8 ft.), feed shaft

13шт.

O1L

GATE, feed cup (YR. 44-) (10 ft.), feed shaft

16шт.

AX01

GATE, feed cup (Complete) (YR. 44-) (6 ft.), feed shaft

9шт.

AX01

GATE, feed cup (Complete) (YR. 44-) (8 ft.), feed shaft

13шт.

AX01

GATE, feed cup (Complete) (YR. 44-) (10 ft.), feed shaft

16шт.

O4L

PIN, hinge (YR. 44-) (6 ft.), feed shaft

9шт.

O4L

PIN, hinge (YR. 44-) (8 ft.), feed shaft

13шт.

O4L

PIN, hinge (YR. 44-) (10 ft.), feed shaft

16шт.

O7L

SPRING, feed shaft (1-1/16" O.D. 3 coil compression) (YR. 44-) (6 ft.), feed shaft

8шт.

O7L

SPRING, feed shaft (1-1/16" O.D. 3 coil compression) (YR. 44-) (8 ft.), feed shaft

12шт.

O7L

SPRING, feed shaft (1-1/16" O.D. 3 coil compression) (YR. 44-) (10 ft.), feed shaft

15шт.

O8L

PIN, feed shaft (YR. 44-) (6 ft.), feed shaft

21шт.

O8L

PIN, feed shaft (YR. 44-) (8 ft.), feed shaft

29шт.

O8L

PIN, feed shaft (YR. 44-) (10 ft.), feed shaft

35шт.

O1051L

RING, cylinder (YR. 44-) (6 ft.), feed shaft

9шт.

O1051L

RING, cylinder (YR. 44-) (8 ft.), feed shaft

13шт.

O1051L

RING, cylinder (YR. 44-) (10 ft.), feed shaft

16шт.

AXOA1491L

TOP, tube (Complete) (YR. 44-) (6 ft.), feed shaft

9шт.

AXOA1491L

TOP, tube (Complete) (YR. 44-) (8 ft.), feed shaft

13шт.

AXOA1491L

TOP, tube (Complete) (YR. 44-) (10 ft.), feed shaft

16шт.

O1493L

CLIP, tube top (YR. 44-) (6 ft.), feed shaft

9шт.

O1493L

CLIP, tube top (YR. 44-) (8 ft.), feed shaft

13шт.

O1493L

CLIP, tube top (YR. 44-) (10 ft.), feed shaft

16шт.

1/8" X 3/16" OVAL HD. RIVET (6 ft.), feed shaft

9шт.

1/8" X 3/16" OVAL HD. RIVET (8 ft.), feed shaft

13шт.

1/8" X 3/16" OVAL HD. RIVET (10 ft.), feed shaft

16шт.

O2852L

TUBE ASSY.

TUBE, ribbon - cpt. w/top (YR. 47) (6 ft.), feed shaft

9шт.

O2852L

TUBE ASSY.

TUBE, ribbon - cpt. w/top (YR. 47) (8 ft.), feed shaft

13шт.

O2852L

TUBE ASSY.

TUBE, ribbon - cpt. w/top (YR. 47) (10 ft.), feed shaft

16шт.

WA6990S

SHAFT, feed (5/8" sq. x 127") (YR. 44-) (10 ft.), feed shaft

1шт.

1-1/2" X 21/32" X #11 GA. WROT WASHER (Sq. hole) (10 ft.), feed shaft

16шт.

1-1/4" X 21/32" X #13 GA. WROT WASHER (Sq. hole) (10 ft.), feed shaft

21шт.

1-1/4" X 21/32" X #22 GA. WROT WASHER (Sq. hole) (10 ft.), feed shaft

32шт.

1-3/32" X 21/32" X #18 GA. WROT WASHER (Sq. hole) (10 ft.), feed shaft

2шт.

W7400S

TUBE,112 mm OD

ribbon (YR. 44-) (6 ft.), feed shaft

9шт.

W7400S

TUBE,112 mm OD

ribbon (YR. 44-) (8 ft.), feed shaft

13шт.

W7400S

TUBE,112 mm OD

ribbon (YR. 44-) (10 ft.), feed shaft

16шт.

WA7546S

SHAFT, feed (5/8" sq. x 73-5/8") (YR. 44-) (6 ft.), feed shaft

1шт.

1-1/2" X 21/32" X #11 GA. WROT WASHER (Sq. hole) (6 ft.), feed shaft

9шт.

1-1/4" X 21/32" X #13 GA. WROT WASHER (Sq. hole) (6 ft.), feed shaft

9шт.

1-1/4" X 21/32" X #22 GA. WROT WASHER (Sq. hole) (6 ft.), feed shaft

18шт.

1-3/32" X 21/32" X #18 GA. WROT WASHER (Sq. hole) (6 ft.), feed shaft

2шт.

W8489S

SHAFT, feed (5/8" x 103-3/16") (YR. 44-) (8 ft.), feed shaft

1шт.

1-1/2" X 21/32" X #11 GA. WROT WASHER (Sq. hole) (8 ft.), feed shaft

13шт.

1-1/4" X 21/32" X #13 GA. WROT WASHER (Sq. hole) (8 ft.), feed shaft

16шт.

1-1/4" X 21/32" X #22 GA. WROT WASHER (Sq. hole) (8 ft.), feed shaft

26шт.

1-3/32" X 21/32" X #18 GA. WROT WASHER (Sq. hole) (8 ft.), feed shaft

2шт.
