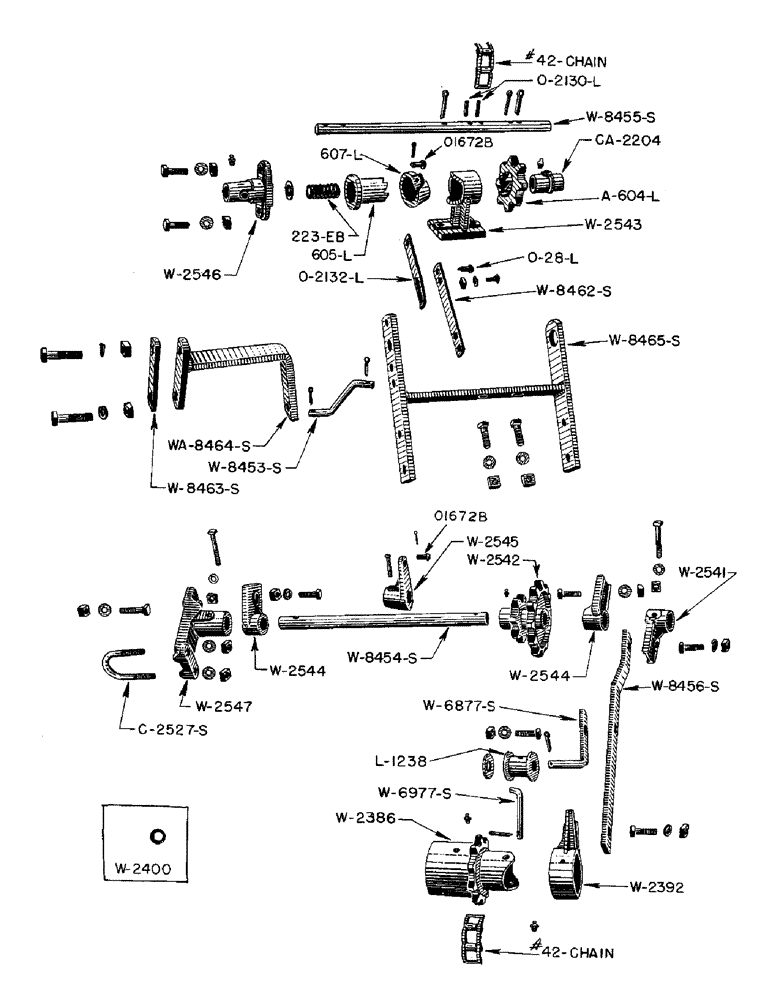

Запчасти Case IH WPH (36) - DRIVE ASSEMBLY

A604L

SPROCKET, clutch (8 tooth) (YR. 44-)

1шт.

605L

CLUTCH (YR. 44-)

1шт.

607L

CAM, clutch (YR. 44-)

1шт.

1" X 7/16" X #16 GA. WROT WASHER

1шт.

CA2204

BEARING, clutch shaft, L.H.

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

L1238

ROLLER, idler (YR. 44-)

1шт.

W2386

SPROCKET, drive - with grease cap (YR. 44-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W2392

BEARING AND BRACKET, support arm (YR. 44-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W2400

WASHER, retaining (YR. 44-50-)

1шт.

W2541

BRACKET, support arm - upper (YR. 44-)

1шт.

3/8" X 2-1/2" MACHINE BOLT W/LOCKWASHER AND NUT

1шт.

W2542

SPROCKET, double drive (12 tooth and 8 tooth) (YR. 44-)

1шт.

1/4" STRAIGHT LINCOLN FITTING #5042

1шт.

W2543

POST. cam throwout (YR. 44-)

1шт.

7/16" X 1-1/2" MACHINE BOLT W/LOCKWASHER AND NUT

2шт.

W2544

BRACKET, pivot shaft (YR. 44-)

2шт.

7/16" X 1-1/2" MACHINE BOLT W/LOCKWASHER AND NUT

2шт.

W2545

ARM, clutch throwout (YR. 44-)

1шт.

1" X 7/16" #16 GA. WROT WASHER

1шт.

1/4" X 2" RD. HD. RIVET

1шт.

W2546

BEARING, clutch shaft - R.H. (YR. 44-)

1шт.

7/16" X 1-1/2" MACHINE BOLT W/LOCKWASHER AND NUT

2шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W2547

BRACKET AND BEARING, pivot shaft (YR. 44-)

1шт.

3/8" X 2-3/4" MACHINE BOLT W/LOCKWASHER AND NUT

1шт.

1/2" X 2" MACHINE BOLT W/LOCKWASHER AND NUT

1шт.

#42

LINK, steel chain - lower drive (YR. 44-)

41шт.

#42

LINK, steel chain - upper drive (YR. 44-)

22шт.

C2527S

"U" BOLT, pivot shaft bracket and bearing (YR. 44-)

1шт.

1/2" LOCKWASHER AND SQ. NUT

2шт.

O1672B

RIVET (3/8" x 3/4" rd. hd. rivet drilled) For 607L and W2545

2шт.

1/8" X 3/4" COTTER PIN

2шт.

O28L

RIVET, shoulder - clutch throwout link (YR. 44-)

1шт.

7/8" X 3/8" X #16 GA. WROT WASHER

1шт.

O2130L

PIN, clutch shaft (1/4" rd. x 1-3/8") (YR. 44-)

2шт.

O2132L

LINK, clutch throwout - upper (YR. 44-)

1шт.

W6877S

BRACKET, idler (YR. 44-)

1шт.

3/16" X 1" COTTER PIN

1шт.

7/16" X 1-1/4" MACHINE BOLT W/LOCKWASHER AND NUT

1шт.

1-1/2" X 5/8" X #14 GA. WROT WASHER

1шт.

W6977S

PIN, linch - for W2386 sprocket (YR. 44-)

1шт.

1/8" X 3/4" COTTER PIN

1шт.

W8453S

SUPPORT, link - for clutch drive shaft frame (YR. 44-)

1шт.

3/16" X 1" COTTER PIN

2шт.

W8454S

SHAFT, pivot (1" rd. x 16-3/16" long) (YR. 44-)

1шт.

W8455S

SHAFT, clutch (3/4" rd. x 17-15/16" long) (YR. 44-)

1шт.

1-1/4" X 13/16" X #16 GA. WROT WASHER

1шт.

1/4" X 1-1/4" COTTER PIN

3шт.

W8456S

ARM, support - pivot shaft (YR. 44-)

1шт.

7/16" X 1-1/2" MACHINE BOLT W/LOCKWASHER AND NUT

2шт.

W8462S

LINK, clutch throwout - lower (YR. 44-)

1шт.

5/16" X 3/4" CARRIAGE BOLT W/LOCKWASHER AND NUT

1шт.

W8463S

CLEAT, link support bracket (YR. 44-)

1шт.

1/2" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT

2шт.

WA8464S

BRACKET, link support (YR. 44-)

1шт.

W8465S

FRAME, clutch drive shaft (YR. 44-)

1шт.

223EB

SPRING, clutch (1-1/32 O.D. x 13/16" I.D. 2-1/8" long 9 coils compression) (YR. 44-)

1шт.
