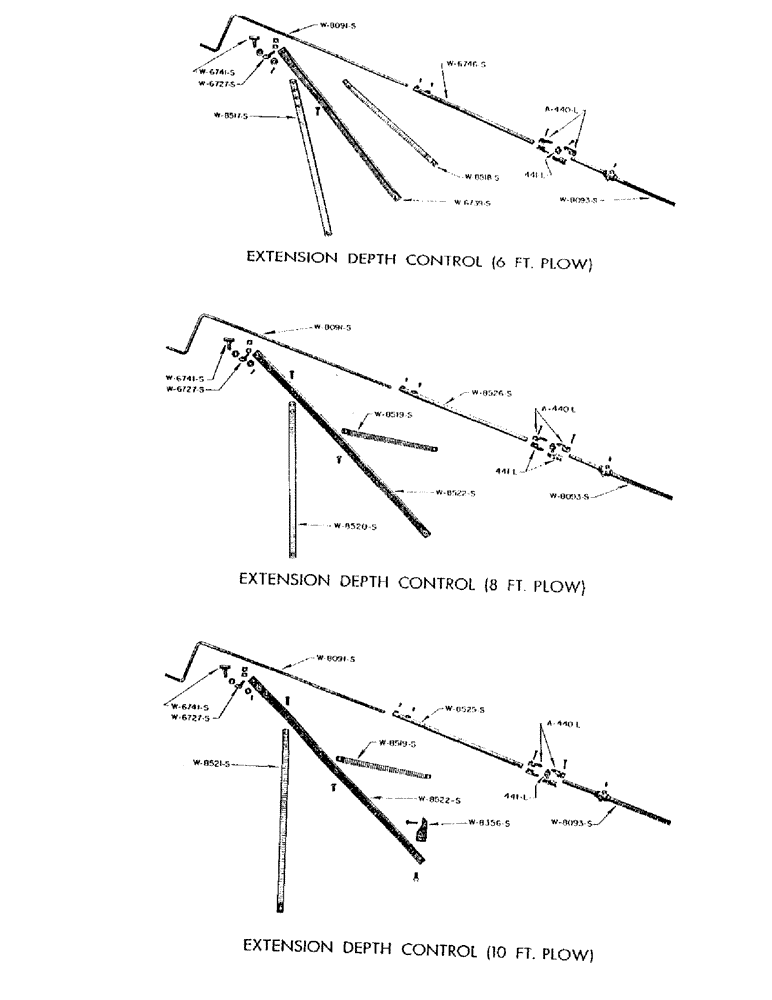

Запчасти Case IH WPH (34) - EXTENSION DEPTH CONTROL, 6 FOOT, 8 FOOT, 10 FOOT PLOW, 6 FOOT, 8 FOOT, 10 FOOT

A440L

JOINT, universal (YR. 44-)

4шт.

5/16" X 2" CARRIAGE BOLT W/LOCKWASHER AND NUT

2шт.

441L

BLOCK, universal joint (YR. 44-)

1шт.

W6727S

EYEBOLT, control rod bracket (YR. 44-)

1шт.

5/8" SQ. NUT

2шт.

W6739S

SUPPORT, angle - control rod (YR. 44-) (6 ft.)

1шт.

W6741S

SWIVEL, control rod (YR. 44-)

1шт.

1-3/4" X 11/16" X #10 GA. WROT WASHER

2шт.

1/4" X 1-1/4" COTTER PIN

1шт.

W6746S

PIPE, control rod (YR. 44-)

1шт.

7/16" X 3/4" C.P. SET SCREW (6 ft.)

2шт.

W8091S

CRANK, depth control rod (YR. 44-)

1шт.

W8093S

SCREW, depth control (YR. 44-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W8356S

BRACKET, control rod support angle (YR. 44-) (10 ft.)

1шт.

3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

2шт.

W8517S

BRACE, support - L.H. (YR. 44-) (6 ft.)

1шт.

5/8" X 1-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

1шт.

W8518S

BRACE, support - R.H. (YR. 44-) (6 ft.)

1шт.

W8519S

BRACE, support - R.H. (YR. 44-) (8 ft.) (10 ft.)

1шт.

5/8" X 1-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.) (10 ft.)

1шт.

W8520S

BRACE, support - L.H. (YR. 44-) (8 ft.)

1шт.

5/8" X 1-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

1шт.

W8521S

BRACE, support - L.H. (YR. 44-) (10 ft.)

1шт.

5/8" X 1-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

1шт.

W8522S

SUPPORT, angle control rod (YR. 44-) (8 ft.) (10 ft.)

1шт.

W8525S

PIPE, control rod (YR. 44-) (10 ft.)

1шт.

W8526S

PIPE, control rod (YR. 44-) (8 ft.)

1шт.
