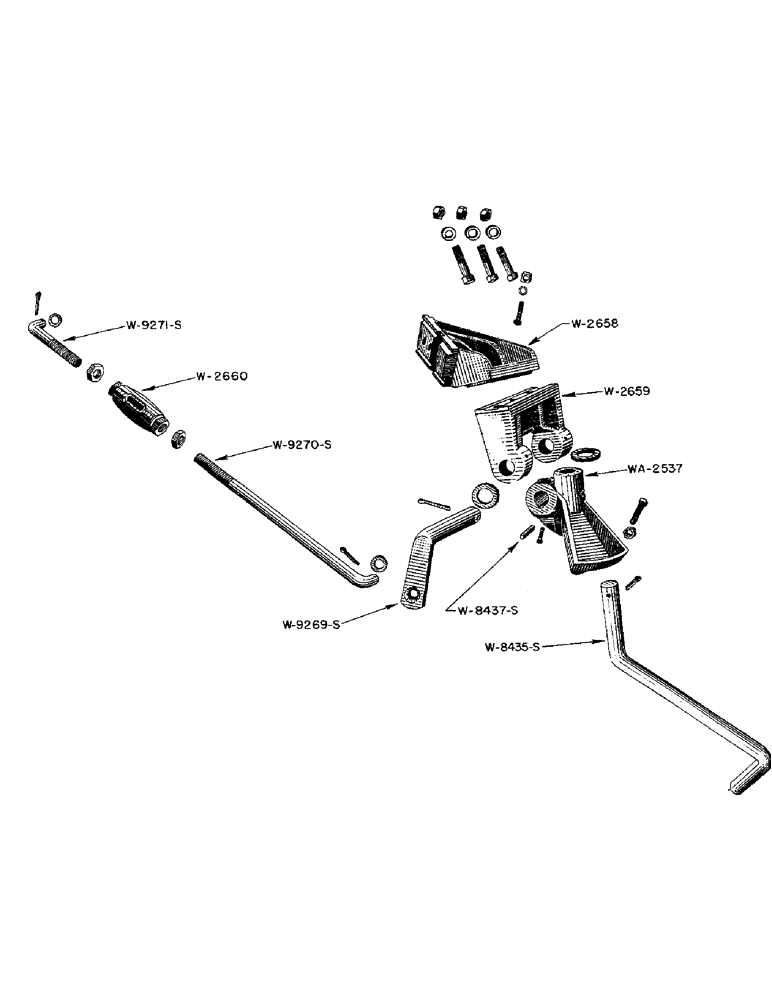

Запчасти Case IH WPH (27) - REAR AXLE, WPA PLOW 1950-

WA2537

HEAD, bearing - rear axle (YR. 44-)

1шт.

1/2" X 1-1/2" C.P. SET SCREW

2шт.

3/4" X 3-1/2" RD. POINT SET SCREW

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

3/4" HEX. JAM NUT

1шт.

W2658

EXTENSION, rear beam (YR. 50-)

1шт.

5/8" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT

1шт.

7/8" X 3-1/2" HEX. HD. CAP SCREW W/LOCKWASHER AND NUT

3шт.

W2659

BRACKET, adjusting - rear axle (YR. 50-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

2шт.

W2660

TURNBUCKLE (YR. 50-)

1шт.

W8435S

AXLE, rear (YR. 44-)

1шт.

3/8" X 2-3/4" COTTER PIN

1шт.

2-3/4" X 1-13/16" X #12 GA. WROT WASHER

1шт.

W8437S

KEY, rear lift crank (YR. 44-)

1шт.

W9269S

CRANK, rear lift (YR. 50-)

1шт.

3/8" X 2-3/4" COTTER PIN

1шт.

2-3/4" X 1-3/16" X #12 GA. WROT WASHER

1шт.

W9270S

LINK, connecting - rear lift crank to turnbuckle (YR. 50-)

1шт.

5/16" X 1-3/4" COTTER PIN

1шт.

1-3/4" X 1-3/16" X #16 GA. WROT WASHER

1шт.

1-1/8" HEX. JAM NUT R.H. THREAD

1шт.

W9271S

LINK, connecting - bell crank to turnbuckle (YR. 50-)

1шт.

5/16" X 1-3/4" COTTER PIN

1шт.

1-3/4" X 1-3/16" X #16 GA. WROT WASHER

1шт.

1-1/8" HEX. JAM NUT L.H. THREAD

1шт.
