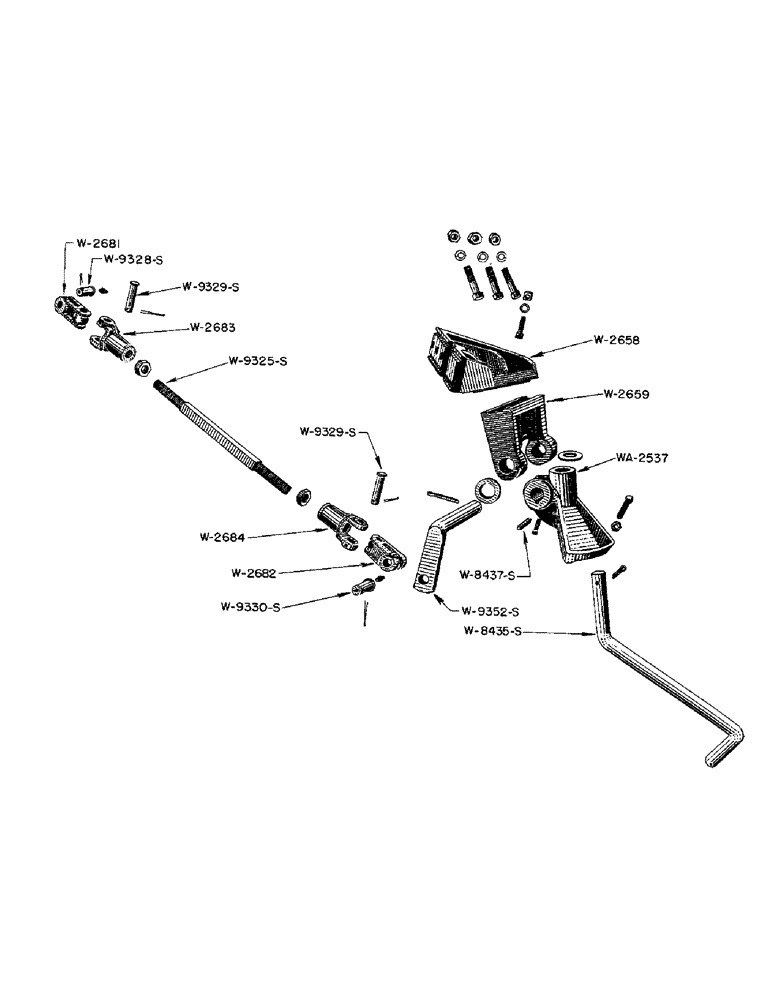

Запчасти Case IH WPH (26) - REAR AXLE, WPH PLOW

WA2537

HEAD, bearing - rear axle (YR. 50-)

1шт.

1/2" X 1-1/2" C.P. SET SCREW

2шт.

3/4" X 3-1/2" RD. POINT SET SCREW

1шт.

3/4" HEX. JAM NUT

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W2658

EXTENSION, rear beam (YR. 50-)

1шт.

5/8" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT

1шт.

7/8" X 3-1/2" HEX. HD. CAP SCREW W/LOCKWASHER AND HEX. NUTS

3шт.

W2659

BRACKET, adjusting - rear axle (YR. 50-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

2шт.

W2681

BLOCK, swivel - front (YR. 50-)

1шт.

W2682

BLOCK, swivel - rear (YR. 50-)

1шт.

W2683

YOKE, connecting - R.H. thread (YR. 50-)

1шт.

W2684

YOKE, connecting - L.H. thread (YR. 50-)

1шт.

W8435S

AXLE, rear (YR. 50-)

1шт.

3/8" X 2-3/4" COTTER PIN

1шт.

2-3/4" X 1-13/16" X #12 GA. WROT WASHER

1шт.

W8437S

KEY, rear axle crank (YR. 50-)

1шт.

W9325S

LINK, rear lift - power axle to rear axle (YR. 50-)

1шт.

5/8" HEX. JAM NUT R.H. THREAD

1шт.

5/8" HEX. JAM NUT L.H. THREAD

1шт.

W9328S

PIN, (1-1/4" rd. x 2-7/16") Swivel block to land axle (YR. 50-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

3/16" X 2-1/2" COTTER PIN

1шт.

W9329S

PIN, (1-1/8" rd. x 3-5/8") Swivel blocks to connecting yokes (YR. 50-)

2шт.

3/16" X 2-1/2" COTTER PIN

2шт.

W9330S

PIN, (1-1/4" rd. x 2-3/4") Swivel block and rear lift crank (YR. 50-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

3/16" X 2-1/2" COTTER PIN

1шт.

W9352S

CRANK, rear lift (YR. 50-)

1шт.

3/8" X 2-3/4" COTTER PIN

1шт.

2-3/4" X 1-13/16" X #12 GA. WROT WASHER

1шт.
