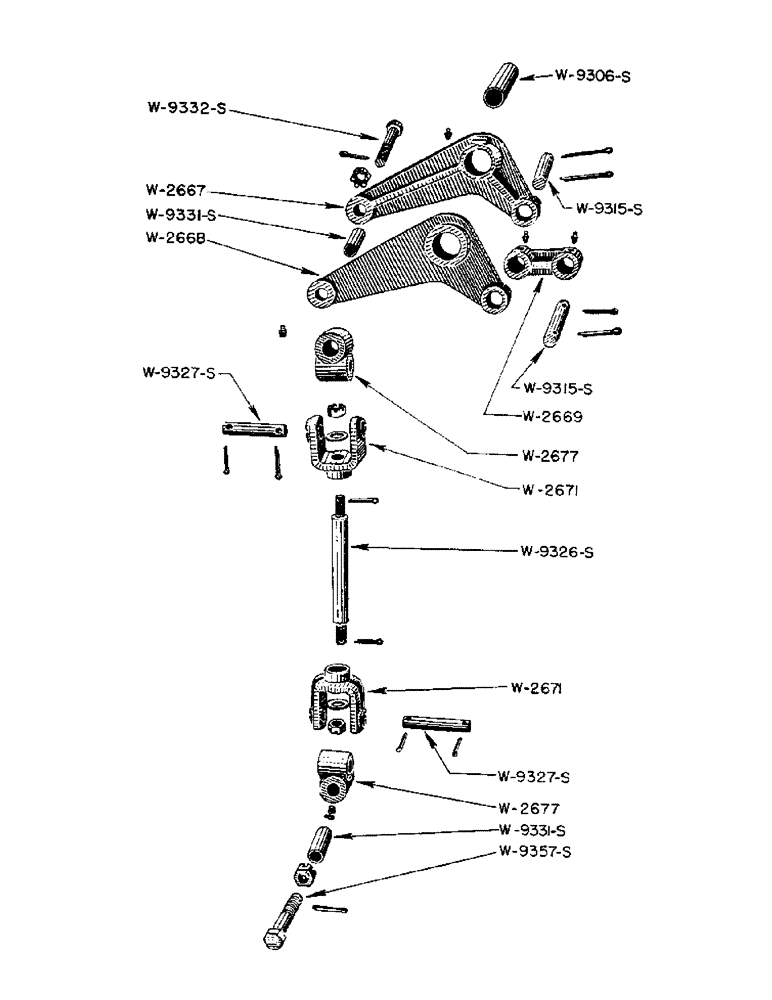

Запчасти Case IH WPH (14) - BELLCRANK ASSEMBLY, WPH PLOW

W2667

BELLCRANK, R.H. (YR. 50-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W2668

BELLCRANK, L.H. (YR. 50-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W2669

CONNECTOR, torque shaft to bellcrank (YR. 50-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

2шт.

W2671

CLEVIS, swivel block (YR. 50-)

2шт.

W2677

BLOCK, swivel (YR. 50-)

2шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

1/8" - 67-1/2 DEGREE ELBOW LINCOLN FITTING #5300

1шт.

W9306S

SPACER, bellcrank (YR. 50-)

1шт.

W9315S

PIN, connector (YR. 50-)

2шт.

1/4" X 1-3/4" COTTER PIN (Torque shaft and connector)

2шт.

1/4" X 2-1/4" COTTER PIN (Bellcrank and connector)

2шт.

W9326S

LINK, swivel (YR. 50-)

1шт.

1-1/4" X 11/16" X #16 GA. WROT WASHER

2шт.

5/8" HEX. SLOTTED NUT

2шт.

3/16" X 1-1/4" COTTER PIN

2шт.

W9327S

PIN, swivel block, to clevis (YR. 50-)

2шт.

3/16" X 1-1/2" COTTER PIN

4шт.

W9331S

BUSHING, swivel block (YR. 50-)

2шт.

W9332S

BOLT (3/4" x 4-3/4" hex. head cap screw w/hex. slotted nut) For bellcrank to swivel block (YR. 50-)

1шт.

W9357S

BOLT (3/4" x 3-3/4" hex. head cap screw w/hex slotted nut) For land axle to swivel block (YR. 50-)

1шт.

3/16" X 1-1/4" COTTER PIN

1шт.
