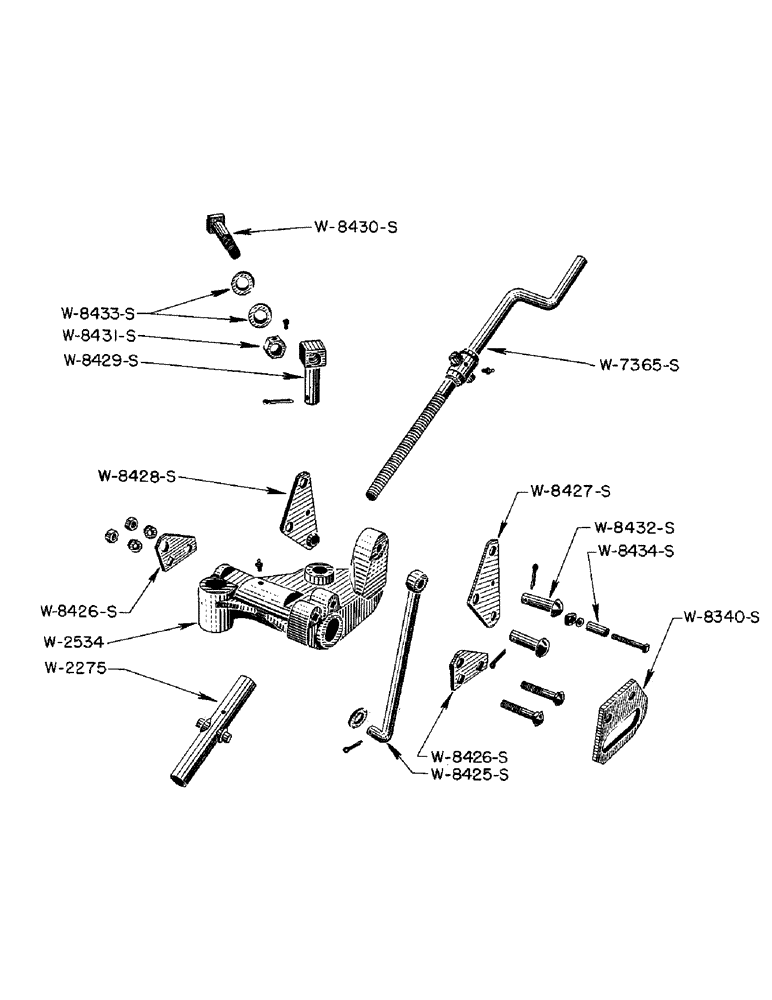

Запчасти Case IH WPH (13) - DEPTH ADJUSTING SCREW, WPA PLOW

W2275

CASE, adjusting screw (YR. 44-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W2534

BEARING, power axle (YR. 44-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W7365S

SCREW, adjusting (YR. 44-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W8340S

HANGER, axle slide (YR. 44-)

1шт.

W8425S

LINK, power lift (YR. 44-)

1шт.

2" X 1-1/16" X #10 GA. WROT WASHER

1шт.

1/4" X 1-1/2" COTTER PIN

1шт.

W8426S

PLATE, bearing - for power screw case (YR. 44-)

2шт.

5/8" X 3-1/4" CARRIAGE BOLT W/LOCKWASHER AND HEX. NUT

2шт.

W8427S

PLATE, bellcrank - R.H. (YR. 44-)

1шт.

7/8" X 2-7/8" BUTTON HEAD RIVET DRILLED (See W8432S)

2шт.

W8428S

PLATE, bellcrank - L.H. (YR. 44-)

1шт.

W8429S

TRUNNION, angling screw (YR. 44-)

1шт.

1/4" X 1-1/2" COTTER PIN

1шт.

W8430S

SCREW, angling (1" x 6" machine bolt) (YR. 44-)

1шт.

W8431S

NUT, angling screw (1" hex.) (YR. 44-)

1шт.

3/8" X 1/2" C.P. SET SCREW

1шт.

W8432S

PIN (7/8" x 2-7/8" button head rivet drilled) Lift link swivel (YR. 44-)

2шт.

1/4" X 1-1/2" COTTER PIN

2шт.

W8433S

WASHER, angling screw (2" x 1-1/16" x #10 ga.) (YR. 44-)

2шт.

W8434S

SPACER, swivel plate (YR. 44-)

1шт.

3/8" X 2-3/4" MACHINE BOLT W/LOCKWASHER AND NUT

1шт.
