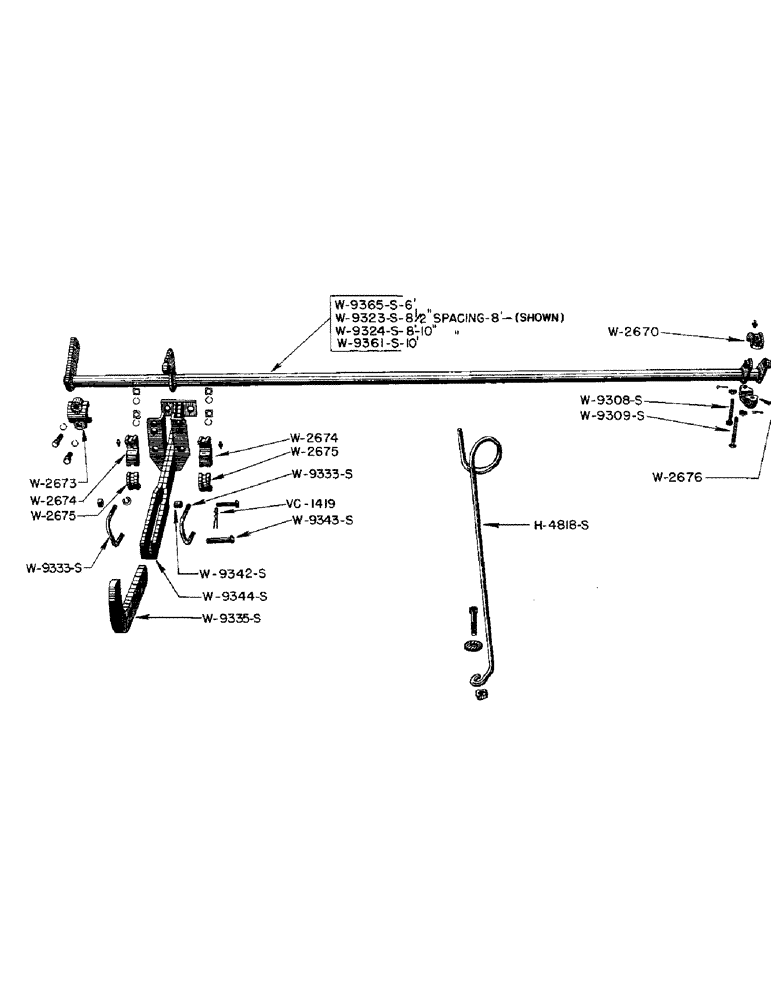

Запчасти Case IH WPH (12) - HYDRAULIC MOUNTING BRACKET AND TORQUE SHAFT, WPH

W2670

CAP, bearing - rear torque shaft (YR. 50-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W2673

CAP, bearing - front (YR. 50-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

3/4" X 2-1/2" HEX. HEAD CAP SCREW W/LOCKWASHER

2шт.

W2674

BEARING, center - torque shaft (YR. 50-)

2шт.

1/8" STRAIGHT LINCOLN FITTING #5000

2шт.

W2675

CAP, center bearing - torque shaft (YR. 50-)

2шт.

W2676

BEARING, lower rear - torque shaft (YR. 50-)

1шт.

H4818S

SUPPORT, hydraulic hose (YR. 50-)

1шт.

1-3/8" X 9/16" X #12 GA. WROT WASHER

1шт.

1/2" X 2" MACHINE BOLT W/NUT

1шт.

VC1419

X

PIN, cotter (For transport pin W9343S) (YR. 50-)

1шт.

W9308S

BOLT, (5/8" x 4" hex. head cap screw drilled w/hex. slotted nut) For torque shaft bearing - rear (YR. 50-)

1шт.

3/16" X 1-1/4" COTTER PIN

1шт.

W9309S

BOLT (5/8" x 5" hex. head cap screw drilled w/hex. slotted nut) For torque shaft bearing - front (YR. 50-)

1шт.

3/16" X 1-1/4" COTTER PIN

1шт.

W9323S

SHAFT, torque - 8 ft. 8-1/2" spacing (YR. 50-)

1шт.

W9324S

SHAFT, torque - 8 ft. 10" spacing (YR. 50-)

1шт.

W9333S

"U" BOLT, torque shaft bearing (YR. 50-)

2шт.

5/8" LOCKWASHER AND NUT

4шт.

W9335S

ANCHOR, front - for hydraulic ram (YR. 50-)

1шт.

W9342S

BUSHING, ram support (YR. 50-)

1шт.

W9343S

PIN, transport (3/4" x 3-1/2" round head rivet drilled) (YR. 50-)

1шт.

W9344S

SUPPORT, hydraulic ram (YR. 50-)

1шт.

5/8" X 3" MACHINE BOLT W/LOCKWASHER AND NUT

1шт.

W9361S

SHAFT, torque - 10 ft. plow (YR. 50-)

1шт.

W9365S

SHAFT, torque - 6 ft. plow (YR. 50-)

1шт.
