Запчасти Case IH WPH (10) - FRAME WPH PLOW, 8 FOOT SHOWN, 6 FOOT, 8 FOOT, 10 FOOT

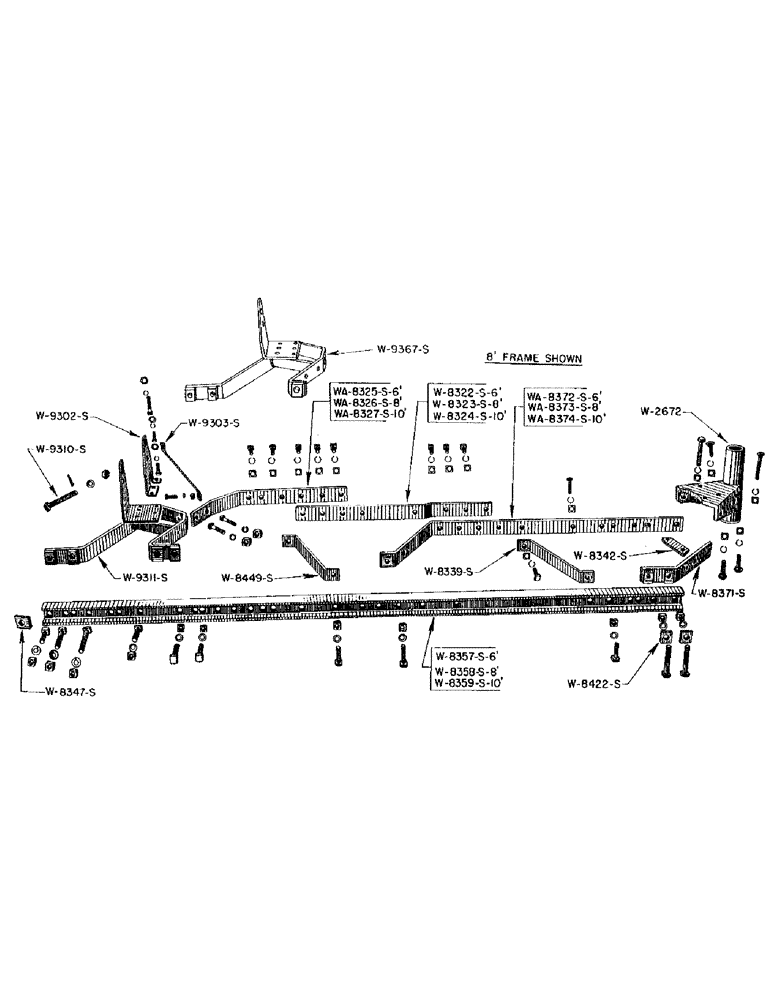

Схема запчастей Case IH WPH - (10) - FRAME WPH PLOW, 8 FOOT SHOWN, 6 FOOT, 8 FOOT, 10 FOOT

Артикул

Название

Примечание

Количество

W2672

HEAD, front axle (YR. 50-)

1шт.

5/8" X 5-1/2" CARRIAGE BOLT W/LOCKWASHER AND NUT

1шт.

5/8" X 5-1/2" MACHINE BOLT W/LOCKWASHER AND NUT

1шт.

3/4" X 3" CARRIAGE BOLT W/LOCKWASHER AND NUT

3шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W8322S

EXTENSION, front frame 6 ft. (YR. 50-)

1шт.

3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

2шт.

3/4" X 2-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

1шт.

W8323S

EXTENSION, front frame 8 ft. (YR. 50-)

1шт.

3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

2шт.

3/4" X 3" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

1шт.

W8324S

EXTENSION, front frame 10 ft. (YR. 50-)

1шт.

3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

2шт.

3/4" X 2-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

1шт.

WA8325S

EXTENSION, power frame 6 ft. (YR. 50-)

1шт.

3/4" X 2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

1шт.

3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

2шт.

3/4" X 2-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

1шт.

2" X 13/16" X #9 GA. WROT WASHER (6 ft.)

4шт.

WA8326S

EXTENSION, power frame 8 ft. (YR. 50-)

1шт.

3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

3шт.

3/4" X 2-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

1шт.

2" X 13/16" X #9 GA. WROT WASHER (8 ft.)

4шт.

WA8327S

EXTENSION, power frame 10 ft. (YR. 50-)

1шт.

3/4" X 2-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

3шт.

3/4" X 2-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

1шт.

2" X 13/16" X #9 GA. WROT WASHER (10 ft.)

4шт.

W8339S

BRACE, inside - front (YR. 50-) (8 ft.) (10 ft.)

1шт.

3/4" X 2-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.) (10 ft.)

1шт.

W8342S

CLEAT, front axle head clamp (YR. 50-)

1шт.

W8347S

BLOCK, beam filler (YR. 50-)

1шт.

W8357S

BEAM, 6 ft. (YR. 50-)

1шт.

7/8" X 3-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

2шт.

7/8" X 5" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

2шт.

7/8" X 3-1/4" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

3шт.

7/8" X 6-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

1шт.

W8358S

BEAM, 8 ft. (YR. 50-)

1шт.

7/8" X 3" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

2шт.

7/8" X 3-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

1шт.

7/8" X 3-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

2шт.

7/8" X 5" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

2шт.

7/8" X 5-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

3шт.

7/8 X 7" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.)

1шт.

W8359S

BEAM, 10 ft. (YR. 50-)

1шт.

7/8" X 3" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

2шт.

7/8" X 3-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

1шт.

7/8" X 3-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

2шт.

7/8" X 5" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

2шт.

7/8" X 5-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

3шт.

7/8" X 7" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

1шт.

W8371S

SUPPORT, front axle head (YR. 50-)

1шт.

WA8372S

FRAME, main - front 6 ft. (YR. 50-)

1шт.

WA8373S

FRAME, main - front 8 ft. (YR. 50-)

1шт.

WA8374S

FRAME, main - front 10 ft. (YR. 50-)

1шт.

3/4" X 2-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (10 ft.)

1шт.

W8422S

BLOCK, beam filler (YR. 50-)

2шт.

W8449S

BRACE, inside - rear (YR. 50-) (8 ft.) (10 ft.)

1шт.

3/4" X 3" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.) (10 ft.)

1шт.

W9302S

PLATE, bell crank support (YR. 50-)

1шт.

5/8" X 1-3/4" HEX. HEAD CAP SCREW W/LOCKWASHER AND NUT

1шт.

5/8" X 2" HEX. HEAD CAP SCREW W/LOCKWASHER AND HEX. NUT

1шт.

5/8" X 3-1/4" HEX HEAD CAP SCREW W/LOCKWASHER AND HEX. NUT

1шт.

W9303S

BRACE, bell crank support plate to power frame (YR. 50-)

1шт.

5/8" X 2" MACHINE BOLT W/LOCKWASHER AND NUT

1шт.

W9310S

CAP SCREW, hex. head (1" x 6-1/2" drilled w/hex slotted nut) (YR. 50-)

1шт.

1/4" X 1-3/4" COTTER PIN

1шт.

W9311S

FRAME, power (YR. 50-) (8 ft.) (10 ft.)

1шт.

5/8" X 2-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.) (10 ft.)

2шт.

W9367S

FRAME, power (YR. 50-) (6 ft.)

1шт.

5/8" X 2-3/4" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

2шт.
