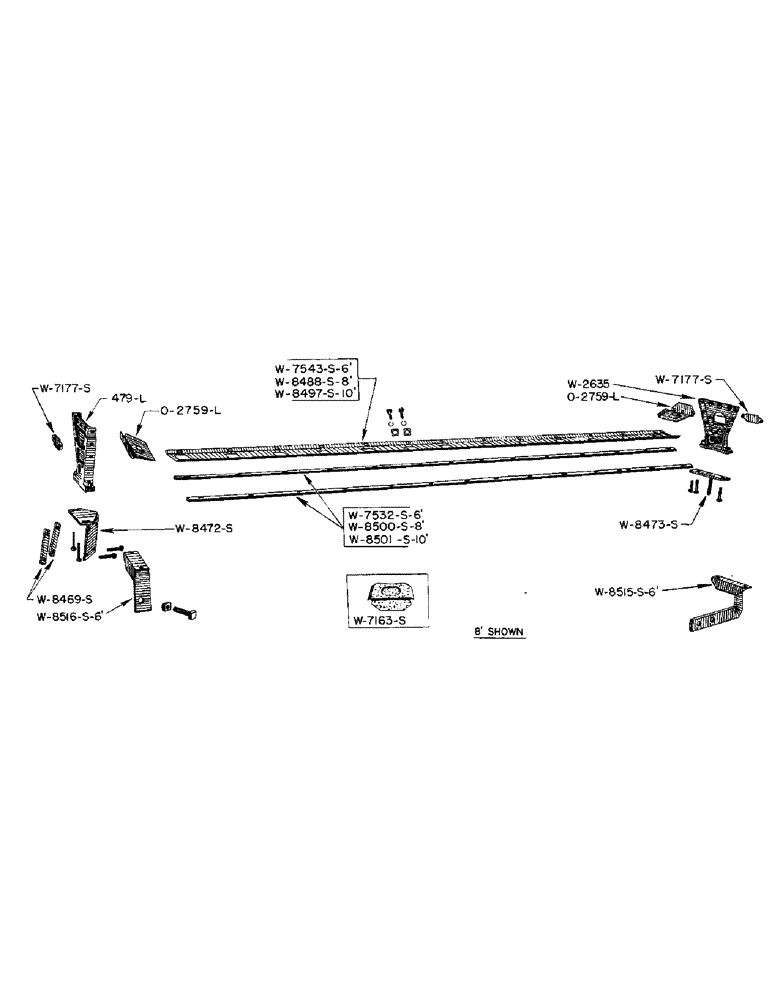

Запчасти Case IH WPA (40) - HOPPER BOTTOM, 6 FOOT, 8 FOOT, 10 FOOT

479L

END, hopper L.H. (YR. 44-)

1шт.

3/8" X 1" MACHINE BOLT AND NUT GALVANIZED

7шт.

3/8" X 3/4" MACHINE BOLT AND NUT GALVANIZED

2шт.

W2635

END, hopper R.H. (YR. 44-)

1шт.

3/8" X 1" MACHINE BOLT AND NUT GALVANIZED

7шт.

3/8" X 3/4" MACHINE BOLT AND NUT GALVANIZED

2шт.

O2759L

COVER, seed shaft gear (YR. 47-)

2шт.

3/8" X 3/4" MACHINE BOLT AND NUT GALVANIZED

4шт.

1/4" X 1/2" MACHINE BOLT AND NUT

2шт.

3/4" X 5/16" X #18 GA. WROT WASHER

2шт.

W7163S

END IRON, hopper bottom (YR. 44-47-)

1шт.

W7177S

COVER, hopper end (YR. 44-)

2шт.

W7532S

BAIL, hopper bottom (YR. 44-) (6 ft.)

2шт.

W7543S

BOTTOM, hopper (YR. 44-) (6 ft.)

1шт.

W8469S

CLEAT, L.H. hopper support (YR. 44-) (8 ft.) (10 ft.)

2шт.

W8472S

SUPPORT, hopper L.H. (YR. 44-) (8 ft.) (10 ft.)

1шт.

7/16" X 2" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.) (10 ft.)

2шт.

7/16" X 2-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.) (10 ft.)

2шт.

W8473S

SUPPORT, hopper R.H. (YR. 44-) (8 ft.) (10 ft.)

1шт.

7/16" X 2-1/2" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.) (10 ft.)

2шт.

1/2" X 2" MACHINE BOLT W/LOCKWASHER AND NUT (8 ft.) (10 ft.)

1шт.

W8488S

BOTTOM, hopper (YR. 44-) (8 ft.)

1шт.

W8497S

BOTTOM, hopper (YR. 44-) (10 ft.)

1шт.

W8500S

RAIL, hopper bottom (YR. 44-) (8 ft.)

2шт.

W8501S

RAIL, hopper bottom (YR. 44-) (10 ft.)

2шт.

W8515S

SUPPORT, hopper R.H. (YR. 44-) (6 ft.)

1шт.

7/16" X 2" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

2шт.

W8516S

SUPPORT, hopper L.H. (YR. 44-) (6 ft.)

1шт.

7/16" X 2" MACHINE BOLT W/LOCKWASHER AND NUT ( 6 ft.)

2шт.

3/4" X 3" MACHINE BOLT W/LOCKWASHER AND NUT (6 ft.)

1шт.
