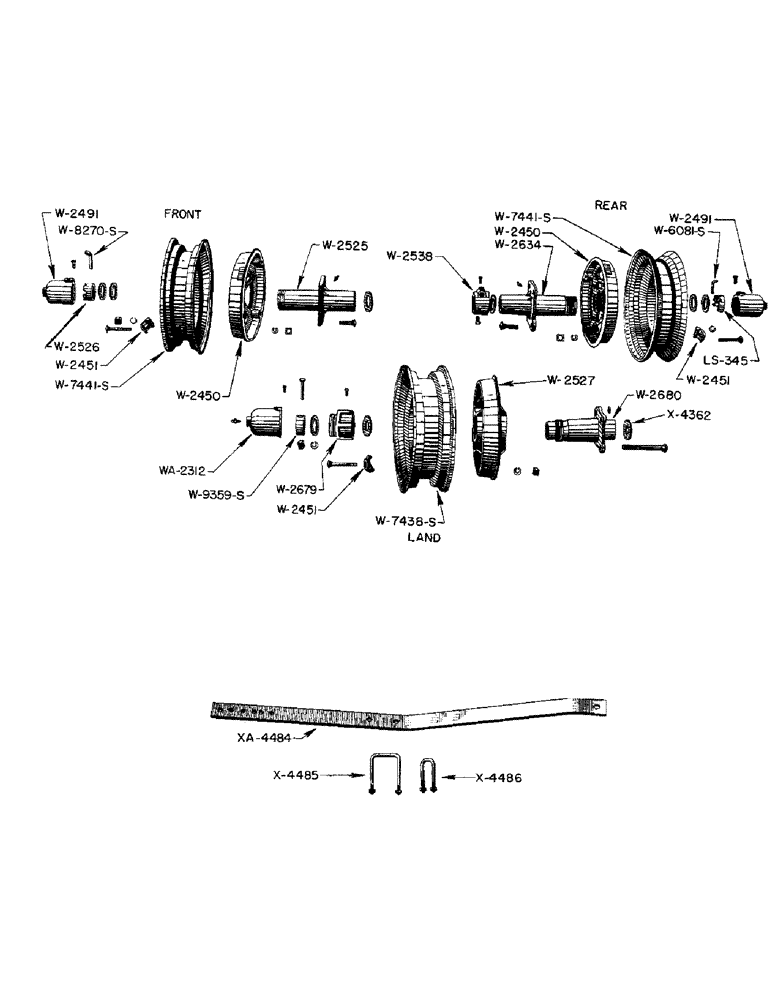

Запчасти Case IH WPA (30) - WHEELS PNEUMATIC TIRE, TRAILER HITCH NUMBER 91

LS345

WASHER, adjusting - rear axle (YR. 46-)

1шт.

WA2312

CAP, grease - land axle (WPH only) (YR. 50-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

3/8" X 3/4" C.P. SET SCREW

1шт.

W2450

WHEEL, front and rear (YR. 46-)

2шт.

W2451

CLAMP, rim to wheel (4 each wheel) (YR. 46-)

12шт.

1/2" X 3-1/2" CARRIAGE BOLT W/LOCKWASHER AND NUT

12шт.

W2491

CAP, grease - front axle and rear axle (YR. 46-)

2шт.

1/2" X 7/8" C.P. SET SCREW

4шт.

W2525

BOX. wheel - front axle (YR. 46-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

5/8" X 2-1/2" CARRIAGE BOLT W/LOCKWASHER AND NUT

4шт.

2-3/4" X 2-1/16" X #10 GA. WROT WASHER

1шт.

W2526

WASHER, adjusting - front axle (YR. 46-)

1шт.

W2527

WHEEL, land (YR. 46-)

1шт.

W2538

COLLAR, sand - rear axle (YR. 46-)

1шт.

7/16" X 3/4" C.P. SET SCREW

1шт.

5/8" X 1" C.P. SET SCREW

1шт.

W2634

BOX, wheel - rear axle (YR. 46-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

5/8" X 2-1/2" CARRIAGE BOLT W/LOCKWASHER AND NUT

4шт.

2-3/4" X 1-3/16" X #12 GA. WROT WASHER

1шт.

W2679

NUT, lock - land wheel box (WPH only) (YR. 50-)

1шт.

2-3/4" X 2-1/16" X #12 GA. WROT WASHER

1шт.

3/8" X 5/8" C.P. SET SCREW

1шт.

W2680

BOX, wheel - land axles (WPH only) (YR. 50-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

W6081S

PIN, linch - rear axle (YR. 46-)

1шт.

W7438S

RIM, land wheel (YR. 46-)

1шт.

W7441S

RIM, front and rear wheel (YR. 46-)

2шт.

W8270S

PIN, linch - front wheel (YR. 46-)

1шт.

W9359S

WASHER, takeup - land axle (WPH only) (YR. 50-)

1шт.

1/2" X 2-3/4" C/SUNK HD. RIVET

1шт.

X4362

WASHER, land axle (3" x 2-1/16" x #12 ga. wrot washer) WPH only (YR. 50-)

1шт.

XA4484

BRACE, hitch (YR. 44-), trailer hitch no. 91

1шт.

X4485

"U" BOLT, wide (YR. 44-), trailer hitch no. 91

1шт.

X4486

"U" BOLT, narrow (YR. 44-), trailer hitch no. 91

1шт.
