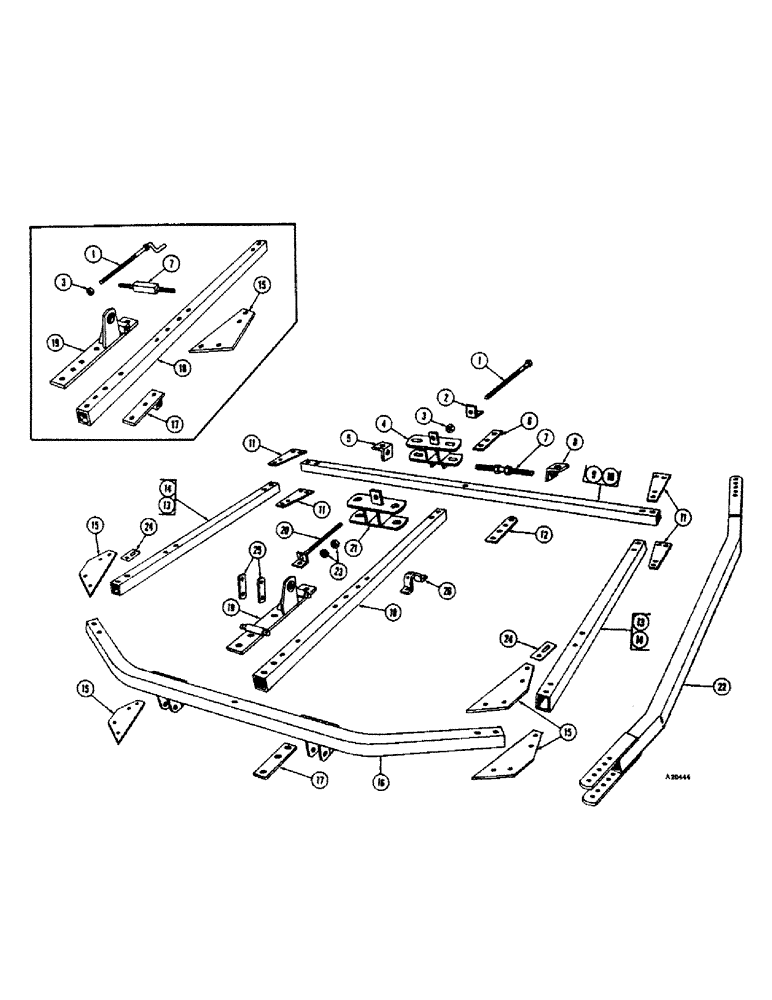

Запчасти Case IH WB-SERIES (06) - MAIN FRAME

1

T33300

SCREW CRANK - rear 7/8" N.C. thread (YR. - 1966)

1шт.

1

T35469

SCREW

CRANK - rear, Acme thrd. & Z.P. (YR. - 67-68)

1шт.

1

T38995

BOLT

GANG BOLT - adj. rear (YR. - 69-)

1шт.

2

T33308

BRACKET - screw crank, rear (YR. - 66-)

1шт.

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5-1/2" N.C. hex

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

3

T33307

COLLAR - screw crank (YR. - 66-68)

1шт.

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

3

T38986

COLLAR - gang bolt (YR. - 69-)

1шт.

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

4

T33275

ANCHOR - rear gang, for use with T33300 crank (YR. - 1966)

1шт.

4

T35471

ANCHOR - rear gang, Acme thrd. for T35469 (YR. - 67-)

1шт.

113-725

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4" x 5-1/2" N.C. Z.P.

2шт.

95-12

WASHER,3/4"

- 3/4"

2шт.

131-385

LOCK NUT,3/4"-10, GA

LOCKNUT - 3/4" N.C. Z.P.

2шт.

5

T33296

BRACKET - adjusting R.H. (YR. - 66-)

1шт.

6

T33316

PLATE - tie, rear upper (YR. - 66-)

1шт.

7

T33306

SCREW - adj., rear lateral (YR. - 1966)

1шт.

7

T35472

SCREW

- adj., rear lateral Z.P. (YR. - 67-68)

1шт.

7

T39274

ADJUSTMENT SCREW

- adj., rear lateral (YR. - 69-)

1шт.

8

T33295

BRACKET - adjusting L.H. (YR. - 66-)

1шт.

9

T33273

TUBE - frame, rear (All models except B97, B117 and B109) (YR. - 66-)

1шт.

10

T33366

TUBE - frame, rear (B97, B117 and B109) (YR. - 66-)

1шт.

11

T33283

PLATE - tie, rear corner (YR. - 66-)

4шт.

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex

8шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 5/8" N.C.

8шт.

12

T33285

PLATE - tie, rear lower (YR. - 66-)

1шт.

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

13

T33274

TUBE - side frame (All models except B97, B117 and B109) (YR. - 66-) 3" OD x 69.5" L

2шт.

14

T33365

TUBE - side frame (B97, B117 and B109) (YR. - 66-)

2шт.

15

T33282

PLATE - tie, front corner (Use T37823) (YR. - 66-68)

4шт.

15

T37823

PLATE - tie, front corner (YR. - 68-)

4шт.

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex

8шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 5/8" N.C. hex

8шт.

16

T33392

TUBE - frame, front (Use T37986) (YR. - 1966)

1шт.

16

T37986

TUBE - frame, front (YR. - 67)

1шт.

17

T33287

PLATE - tie, front bottom (YR. - 66-68)

1шт.

17

T33284

PLATE - tie, front bottom (YR. - 69-)

1шт.

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

13-1284

CAPSCREW,Hex, 3/4" - 10 x 5 1/4", Gr 5

BOLT - 3/4" x 5-1/4" N.C. hex

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

18

T33271

X,3" OD x 94" L

TUBE - frame, center (See note A, page 8) (YR. - 66-69)

1шт.

18

T39267

TUBE - frame, center (See note A, page 8) (YR. - 69-) 94" L

1шт.

19

T33342

PLATE - tie, front top (See note B, page 8) (YR. - 66-68)

1шт.

19

T38996

PLATE - tie, front top (See note B, page 8) (YR. - 69-)

1шт.

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.
