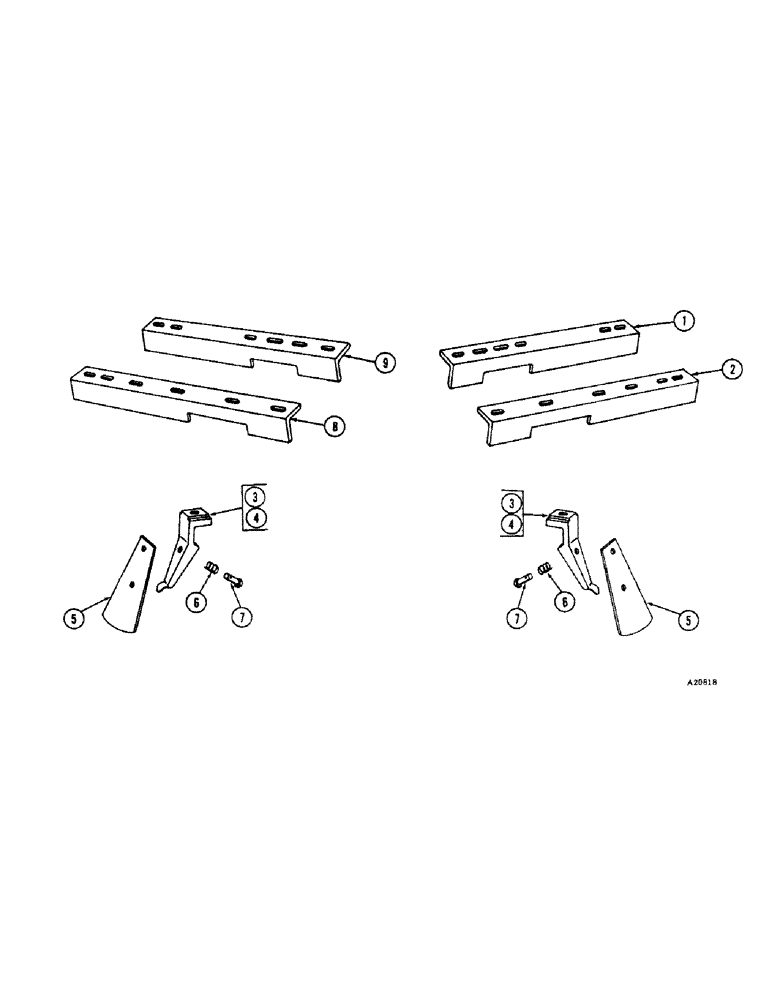

Запчасти Case IH WB-SERIES (88) - SCRAPERS, SPRING LOADED, FURROW FILLER, 7-1/4 INCH, 9-5/16 INCH
№
Артикул
Название
Примечание
Количество
1
T25569
ANGLE - scraper, R.H. furrow filler (7-1/4") (YR. - 67-)
1шт.
11-744
BOLT - 7/16" x 2-3/4" cge (7-1/4")
3шт.
95-7
WASHER,7/16"
- 1-1/4" x 1/2" x 14 ga (7-1/4")
3шт.
92-7
LOCK WASHER,7/16"
(7-1/4") 7/16"
3шт.
25-107
NUT,7/16"-14, G5
- 7/16" N.C. hex (7-1/4")
3шт.
2
T38966
ANGLE - scraper, R.H. furrow filler (9-5/16") (YR. - 67-)
1шт.
11-744
BOLT - 7/16" x 2-3/4" cge (9-5/16")
3шт.
13-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd
(9-5/16") Hex, 7/16"-14 x 1 1/4", G5, Full Thd
1шт.
95-7
WASHER,7/16"
- 1-1/4" x 1/2" x 14 ga (9-5/16")
4шт.
92-7
LOCK WASHER,7/16"
(9-5/16") 7/16"
4шт.
25-107
NUT,7/16"-14, G5
- 7/16" N.C. hex (9-5/16")
4шт.
3
T2032
BRACKET - scraper (YR. - 67-)
1шт.
95-7
WASHER,7/16"
- 1-1/4" x 1/2" x 14 ga
1шт.
92-7
LOCK WASHER,7/16"
1шт.
25-107
NUT,7/16"-14, G5
- 7/16" N.C. hex
1шт.
4
T2033
BRACKET - scraper (YR. - 67-)
1шт.
95-7
WASHER,7/16"
- 1-1/4" x 1/2" x 14 ga
1шт.
92-7
LOCK WASHER,7/16"
1шт.
25-107
NUT,7/16"-14, G5
- 7/16" N.C. hex
1шт.
5
T33463
BLADE - scraper (YR. - 67-)
2шт.
6
215GD
SPRING - scraper (YR. - 67-)
2шт.
7
B18213
PIN - scraper (YR. - 67-)
2шт.
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
2шт.
8
T38967
ANGLE
- scraper, L.H. furrow filler (9-5/16") (YR. - 67-)
1шт.
11-744
BOLT - 7/16" x 2-3/4" cge (9-5/16")
3шт.
13-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd
(9-5/16") Hex, 7/16"-14 x 1 1/4", G5, Full Thd
1шт.
95-7
WASHER,7/16"
- 1-1/4" x 1/2" x 14 ga (9-5/16")
4шт.
92-7
LOCK WASHER,7/16"
(9-5/16") 7/16"
4шт.
25-107
NUT,7/16"-14, G5
- 7/16" N.C. hex (9-5/16")
4шт.
9
T25570
ANGLE - scraper, L.H. furrow filler (7-1/4") (YR. - 67-)
1шт.
11-744
BOLT - 7/16" x 2-3/4" cge (7-1/4")
3шт.
95-7
WASHER,7/16"
- 1-1/4" x 1/2" x 14 ga (7-1/4")
3шт.
92-7
LOCK WASHER,7/16"
(7-1/4") 7/16"
3шт.
25-107
NUT,7/16"-14, G5
- 7/16" N.C. hex (7-1/4")
3шт.
Выбрано товаров: 36
