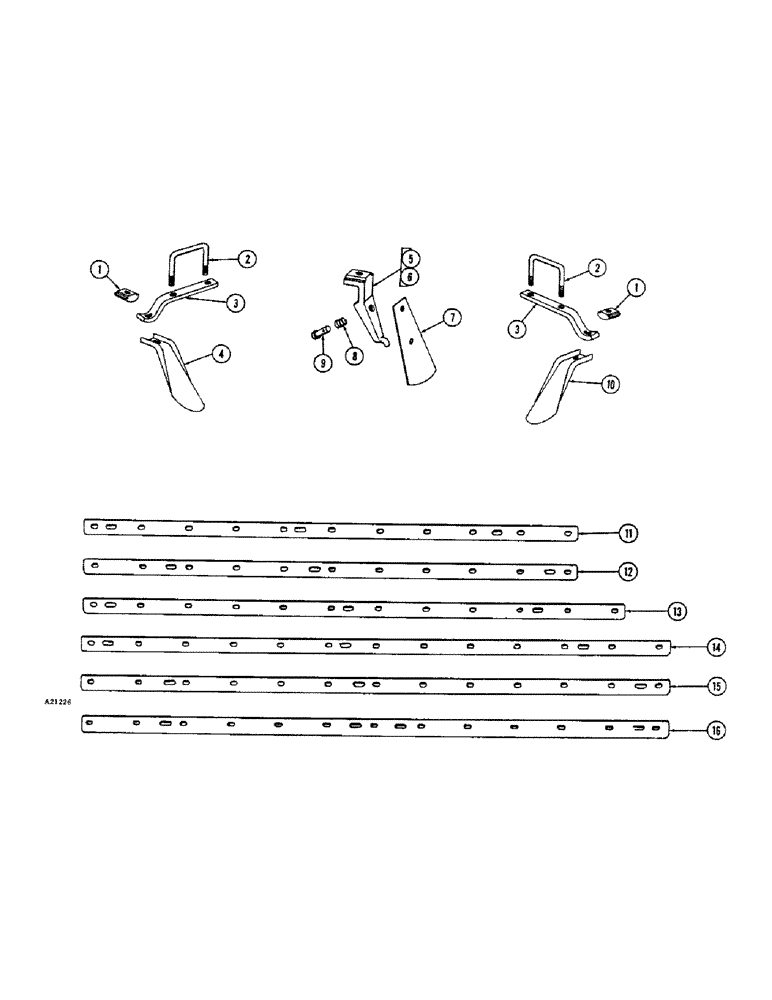

Запчасти Case IH WB-SERIES (62) - DISK SCRAPERS, FRONT AND REAR, 7-1/4 INCH SPACING, B137, B147, B157

1

H1130

PAD

- scraper bar (YR. - 66-)

12шт.

2

T33321

"U" BOLT - pivot bracket (YR. - 66-)

12шт.

92-8

LOCK WASHER,1/2"

24шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

24шт.

3

T33323

BRACKET - scraper bar (YR. - 66-)

12шт.

11-844

BOLT

- 1/2" x 2-3/4" cge

12шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga) 1/2"

12шт.

92-8

LOCK WASHER,1/2"

12шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

12шт.

4

T20465

SCRAPER

- R.H. rear & L.H. front (B137) (YR. - 66-)

22шт.

4

T20465

SCRAPER

- R.H. rear & L.H. front (B147) (YR. - 66-)

24шт.

4

T20465

SCRAPER

- R.H. rear & L.H. front (B157) (YR. - 66-)

26шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B137)

22шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B147)

24шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B157)

26шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B137)

22шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B147)

24шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B157)

26шт.

92-7

LOCK WASHER,7/16"

(B137) 7/16"

22шт.

92-7

LOCK WASHER,7/16"

(B147) 7/16"

24шт.

92-7

LOCK WASHER,7/16"

(B157) 7/16"

26шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B137)

22шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B147)

24шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B157)

26шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (B137) (YR. - 66-)

22шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (B147) (YR. - 66-)

24шт.

5

T2032

BRACKET - scraper, R.H. rear and L.H. front (B157) (YR. - 66-)

26шт.

11-732

BOLT

- 7/16" x 2" cge (B137)

22шт.

11-732

BOLT

- 7/16" x 2" cge (B147)

24шт.

11-732

BOLT

- 7/16" x 2" cge (B157)

26шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B137)

22шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B147)

24шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B157)

26шт.

92-7

LOCK WASHER,7/16"

(B137) 7/16"

22шт.

92-7

LOCK WASHER,7/16"

(B147) 7/16"

24шт.

92-7

LOCK WASHER,7/16"

(B157) 7/16"

26шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B137)

22шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B147)

24шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B157)

26шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (B137) (YR. - 66-)

22шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (B147) (YR. - 66-)

24шт.

6

T2033

BRACKET - scraper, R.H. front and L.H. rear (B157) (YR. - 66-)

26шт.

11-732

BOLT

- 7/16" x 2" cge (B137)

22шт.

11-732

BOLT

- 7/16" x 2" cge (B147)

24шт.

11-732

BOLT

- 7/16" x 2" cge (B157)

26шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B137)

22шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B147)

24шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B157)

26шт.

92-7

LOCK WASHER,7/16"

(B137) 7/16"

22шт.

92-7

LOCK WASHER,7/16"

(B147) 7/16"

24шт.

92-7

LOCK WASHER,7/16"

(B157) 7/16"

26шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B137)

22шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B147)

24шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B157)

26шт.

7

T33463

BLADE - scraper (B137) (YR. - 66-)

44шт.

7

T33463

BLADE - scraper (B147) (YR. - 66-)

48шт.

7

T33463

BLADE - scraper (B157) (YR. - 66-)

52шт.

8

215GD

SPRING - scraper (B137) (YR. - 66-)

44шт.

8

215GD

SPRING - scraper (B147) (YR. - 66-)

48шт.

8

215GD

SPRING - scraper (B157) (YR. - 66-)

52шт.

9

B18213

PIN - scraper (B137) (YR. - 66-)

44шт.

9

B18213

PIN - scraper (B147) (YR. - 66-)

48шт.

9

B18213

PIN - scraper (B157) (YR. - 66-)

52шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (B137) 1/8" x 1"

44шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (B147) 1/8" x 1"

48шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (B157) 1/8" x 1"

52шт.

10

T20464

SCRAPER

- R.H. front & L.H. rear (B137) (YR. - 66-)

22шт.

10

T20464

SCRAPER

- R.H. front & L.H. rear (B147) (YR. - 66-)

24шт.

10

T20464

SCRAPER

- R.H. front & L.H. rear (B157) (YR. - 66-)

26шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B137)

22шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B147)

24шт.

11-728

BOLT (MACHINE),Short NK, 7/16"-14 x 1 3/4", G2

BOLT - 7/16" x 1-3/4" cge (B157)

26шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B137)

22шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B147)

24шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga (B157)

26шт.

92-7

LOCK WASHER,7/16"

(B137) 7/16"

22шт.

92-7

LOCK WASHER,7/16"

(B147) 7/16"

24шт.

92-7

LOCK WASHER,7/16"

(B157) 7/16"

26шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B137)

22шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B147)

24шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (B157)

26шт.

11

T33370

BAR - scraper, front and rear (B137) (YR. - 66-)

4шт.

12

T33372

BAR - scraper, rear (Use T33370) (B137) (YR. - 66-69)

2шт.

13

T33317

BAR - scraper, front and rear (B147) (YR. - 66-)

4шт.

14

T33397

BAR - scraper, front (Use T38103) (B157) (YR. - 66-69)

2шт.

15

T33412

BAR - scraper, rear (Use T38103) (B157) (YR. - 66-69)

2шт.

16

T38103

BAR - scraper, front and rear (B157) (YR. - 69-)

4шт.
