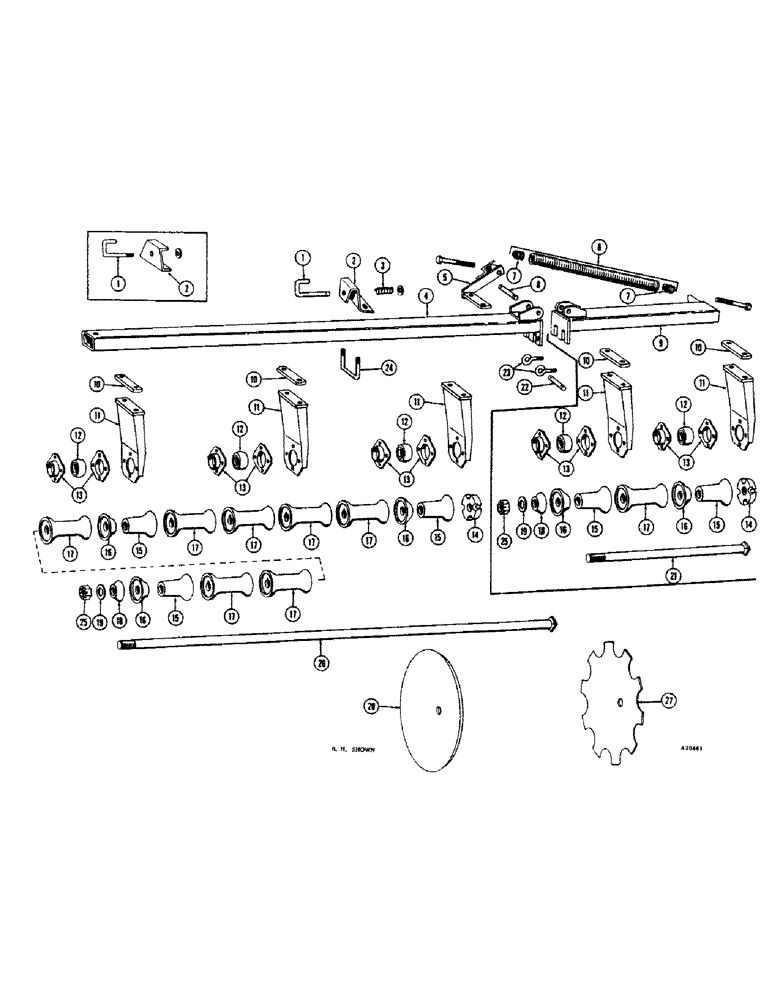

Запчасти Case IH WB-SERIES (34) - REAR GANG WB177 WIND MODEL, 7-1/4 INCH SPACING

1

T33385

ANCHOR

- w/1-1/2" threaded end (YR. - 1966)

2шт.

195-2075

WASHER,11/16" x 1 1/2" x 109"

- 1-1/2" x 11/16" x 12 ga

4шт.

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

1

T37987

ANCHOR

- plain end w/hole for pin (YR. - 67-)

2шт.

195-2075

WASHER,11/16" x 1 1/2" x 109"

- 1-1/2" x 11/16" x 12 ga

2шт.

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

2шт.

2

T33387

REST (YR. - 1966)

2шт.

2

T37969

REST - wing bracket (YR. - 67-)

2шт.

3

O72L

SPRING (YR. - 66-)

2шт.

4

T33447

FRAME (YR. - 66-)

2шт.

73-428

SCREW - machine, 1/4" x 1-3/4" Slotted Flat Hd, 1/4"-20 x 1 3/4"

4шт.

131-2

NUT,1/4"-20, GB

4шт.

5

T33353

ANCHOR - wing extension, spring R.H. (YR. - 66-)

1шт.

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex hd Z.P.

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

5

T33358

ANCHOR - wing extension, spring L.H. (Hardware same as ref. 5 above) (YR. - 66-)

1шт.

6

T34871

SPRING - lift, cpt. w/plugs, wing extension (YR. - 66-)

2шт.

7

T2035

PLUGS (YR. - 66-)

4шт.

113-707

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- 3/4" x 4" w/3" thread N.C. hex

4шт.

8

T33352

PIN - hinge - 7/8" x 6-1/2" (YR. - 66-)

2шт.

195-49

WASHER

4шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

9

T33430

FRAME - wing, R.H. (YR. - 66-)

1шт.

9

T33431

FRAME - wing, L.H. (YR. - 66-)

1шт.

10

T33322

PLATE

- standard (Hardware same as ref. 5 above) (YR. - 66-)

10шт.

11

T33383

SUPPORT ASSY.

STANDARD (YR. - 66-)

10шт.

12

T34178

BALL BEARING,38.61mm ID x 85.72mm OD x 30.18mm W

BEARING (YR. - 66-)

10шт.

13

T29920

FLANGE

- bearing (YR. - 66-)

20шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4 cge

40шт.

92-8

LOCK WASHER,1/2"

40шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

40шт.

14

T1895

BUMPER

(YR. - 66-)

4шт.

15

T2036

SPOOL

- bearing, long (YR. - 66-)

10шт.

16

T2041

SPOOL

- bearing, short (YR. - 66-)

10шт.

17

T2029

SPOOL

(YR. - 66-)

16шт.

18

T2046

WASHER

(YR. - 66-)

4шт.

19

O2827HT

WASHER

(YR. - 66-)

1шт.

21

T62464

BOLT - wing extension gang (Incl. nut, ref. #25) (YR. - 66-)

2шт.

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

2шт.

22

T33349

ROD - 3/4" x 5-3/4" (YR. - 66-)

2шт.

23

T33410

EYEBOLT (YR. - 66-)

4шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

25-1012

NUT,3/4"-10, G5

4шт.

24

T33321

"U" BOLT (YR. - 66-)

2шт.

92-8

LOCK WASHER,1/2"

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

25

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - 1-1/2" slotted (YR. - 66-)

4шт.

26

T62450

BOLT - gang (Includes nuts, ref. #25) (YR. - 66-)

2шт.

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

2шт.

27

T33324

DISC

DISK - notched, 20" x 9 ga (YR. - 66-)

30шт.

27

T33326

DISC

DISK - notched, 18" x 10 ga (YR. - 66-)

30шт.

27

T38347

DISC

DISK - notched, 20" x 7 ga (YR. - 68-)

30шт.

28

T33250

DISC

DISK - plain, 20" x 8 ga (YR. - 66-)

30шт.

28

T33327

DISC

DISK - plain, 18" x 11 ga (YR. - 66-)

30шт.

28

T33329

DISK - plain, 20" x 10 ga (YR. - 66-)

30шт.

28

T33464

DISC

DISK - plain, 18" x 8 ga (YR. - 66-)

30шт.

28

T29904

DISC

DISK - plain, 18" x 9 ga (YR. - 66-)

30шт.
