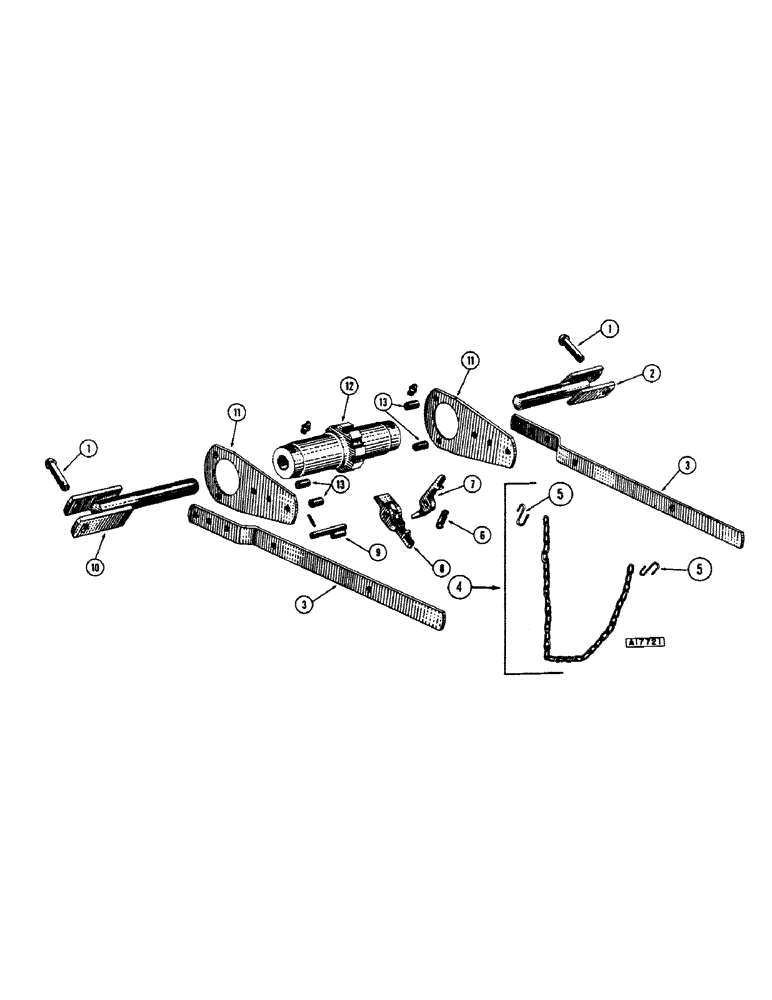

Запчасти Case IH WB-SERIES (16) - MANUAL LIFT

1

H3748S

RIVET - 1" x 2-1/2" rd. hd., drilled (YR. - 66-)

2шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

3

W10243S

BOLT - lift, L.H. (YR. - 66-)

1шт.

3

T12008

HANDLE - ratchet (YR. - 66-)

2шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

92-6

LOCK WASHER,3/8"

4шт.

4

T60214

CHAIN - drag (15 links no. 3 tenso) Cpt. with hooks (YR. - 66-)

1шт.

5

O120L

HOOK - drag chain (YR. - 66-)

2шт.

6

T12010

SPRING - ratchet (YR. - 66-)

1шт.

7

T1192

PAWL - ratchet, inner (YR. - 66-)

1шт.

8

T1191

PAWL - ratchet, outer (YR. - 66-)

1шт.

9

T12011

PIN - ratchet lock (YR. - 66-)

1шт.

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, 3/16" x 1 3/4", Slotted

1шт.

10

W10242S

BOLT - lift, R.H. (YR. - 66-)

1шт.

11

T12009

PLATE - ratchet (YR. - 66-)

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

92-6

LOCK WASHER,3/8"

2шт.

12

T1190

RATCHET - turnbuckle (YR. - 66-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" x 21/32", straight

2шт.

13

T12012

SPACER - ratchet (YR. - 66-)

4шт.
