Запчасти Case IH TIGER-MATE (75.200.06) - TIGER TINE REAR HITCH ATTACHMENT (75) - SOIL PREPARATION

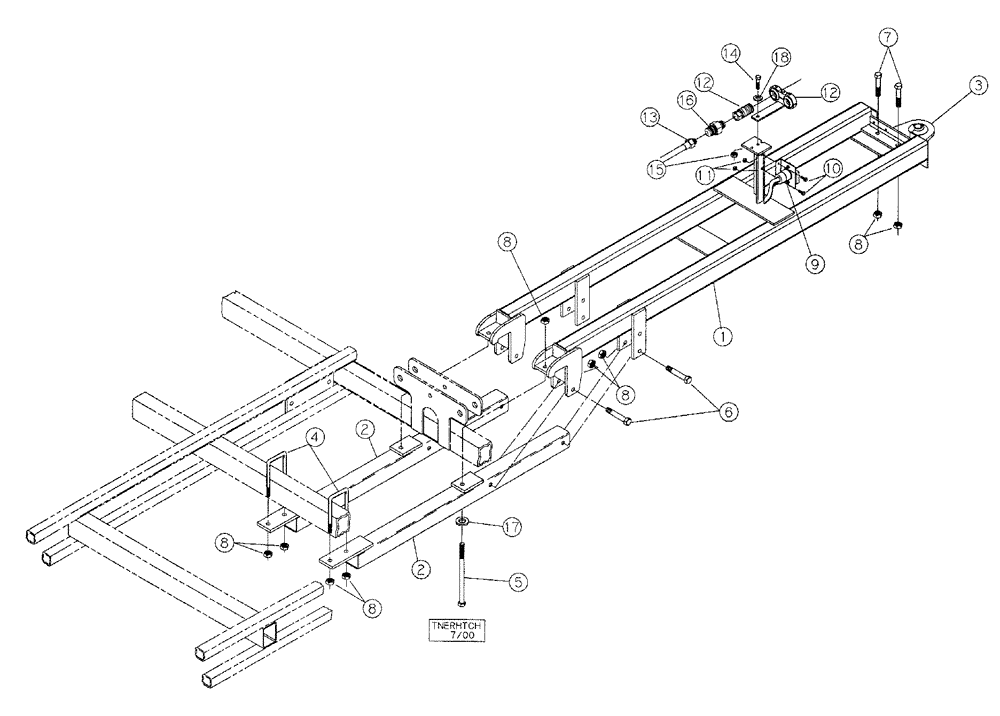

Схема запчастей Case IH TIGER-MATE - (75.200.06) - TIGER TINE REAR HITCH ATTACHMENT (75) - SOIL PREPARATION
4
12
2
7
10
15
8
5
1
8
12
11
3
8
2
17
18
18
14
8
13
6
8
9

Артикул

Название

Примечание

Количество

1

06402950

ANGLE

Rear, Tiger Tine, Hitch

1шт.

2

06402910

BAR ASSY.

Support Arm

2шт.

3

06402935

PLATE

Hitch

1шт.

4

87629102

U-BOLT

5/8" x 3" NC

2шт.

5

413-10152

BOLT,Hex, 5/8" - 11 x 9-1/2", Gr 5

NC

2шт.

6

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

NC

4шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

8

85700693

NUT,5/8" - 11, Gr C

NC Stover

12шт.

9

87446763

WIRE HARNESS

Light, Years: -01-DEC-06

1шт.

9

87611500

WIRE HARNESS

Light, Start Year: 01-JAN-07

1шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

NC

2шт.

11

86992211

NUT

1/4" NC Hex.

2шт.

12

25705020

COUPLING, QUICK, FEM

Assy.

1шт.

25705021 Is The Female Coupler, 25705012 Is The Breakaway Frame

1шт.

13

1284366C1

HYDRAULIC HOSE

1/4" x 100 Long

2шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

NC

1шт.

15

86992213

NUT

3/8" NC Stover

1шт.

16

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

SAEM Adapter

2шт.

17

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

1/4"

2шт.

18

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

Standard

1шт.

19

P1640350

HITCH ASSY

Complete

1шт.

Выбрано товаров: 21
