Запчасти Case IH TIGER-MATE (75.200.04) - SINGLE FOLD 14 MAIN FRAME ONLY WALKING BEAM SERVICE PART KIT (75) - SOIL PREPARATION

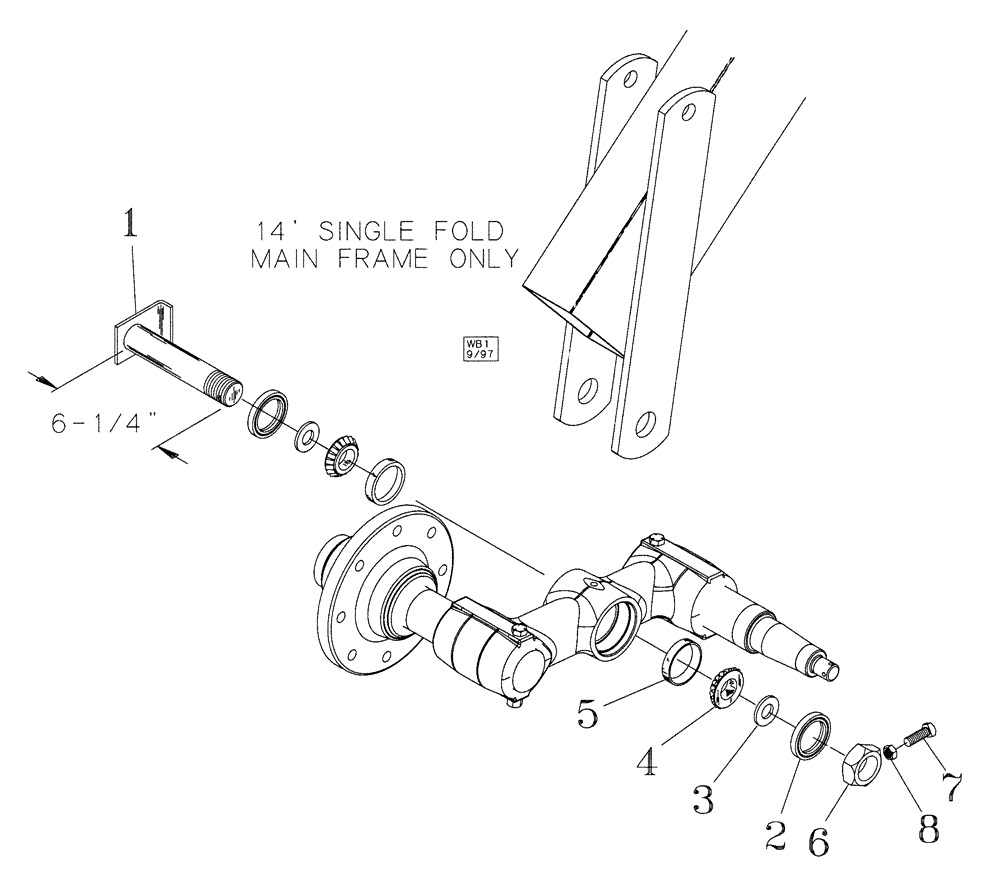

Схема запчастей Case IH TIGER-MATE - (75.200.04) - SINGLE FOLD 14 MAIN FRAME ONLY WALKING BEAM SERVICE PART KIT (75) - SOIL PREPARATION
2
4
3
6
7
5
1
8

Артикул

Название

Примечание

Количество

1

04661850

PIN

Axle

1шт.

2

21932510

SEAL

2.094 Bore - CR22870

2шт.

3

06400573

SPACER

Seal

2шт.

4

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1.50 Bore - Timeken #LM29749

2шт.

5

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

2.56 O.D - Timeken #LM29710

2шт.

6

14032409

NUT

1-1/2 NC Hex. Jam

1шт.

7

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1 NC Square Head Set

1шт.

8

425-146

JAM NUT,3/8" - 16, Gr 5

NC Hex.

1шт.

9

06400540

BEARING ASSY

Service Kit, Includes Ref. 1 - 8 (Not Shown)

1шт.

Выбрано товаров: 9
