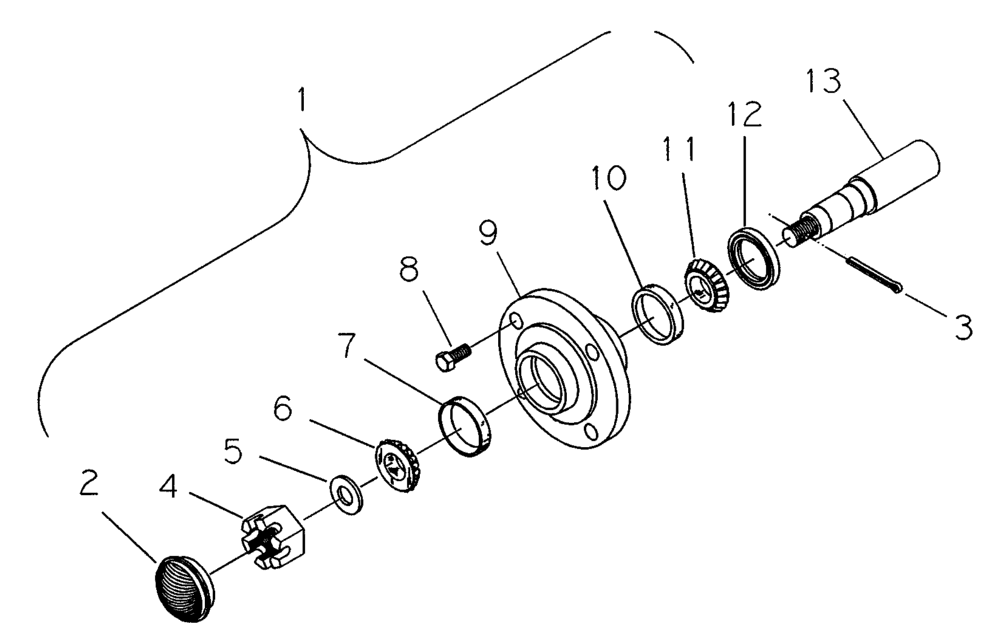

Запчасти Case IH TIGER-MATE (44.100.10) - 633 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

28063362

HUB ASSY.

Spindle. 4-1/2" Not Shown, Includes Ref. 1-13

1шт.

1

28163311

HUB ASSY.

633 4 Bolt Includes Ref. 2-12

1шт.

2

28463300

HUB CAP

1шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

Split

1шт.

4

425-1312

SLOTTED NUT,3/4"-16, G5

NF

1шт.

5

17413001

WASHER

3/4" SAE

1шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

0.75" Bore Timken #LM11949

1шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

7

651814R1

BEARING CUP

1.78" O.D. Timken #LM11910

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

Wheel, 1/2" x 1-1/2" NF Flat Head

4шт.

8

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

Flat Head

4шт.

9

28263340

HUB

633

1шт.

10

651817R1

BEARING CUP

2.33" O.D. Timken #LM67010

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Bore Timken #LM67048

1шт.

12

126621C1

SEAL

1.50" I.D. x 2.33" O.D. CR#14975

1шт.

13

28363322

SPINDLE

1шт.
