Запчасти Case IH TIGER-MATE (44.100.09) - 783 HUB (44) - WHEELS

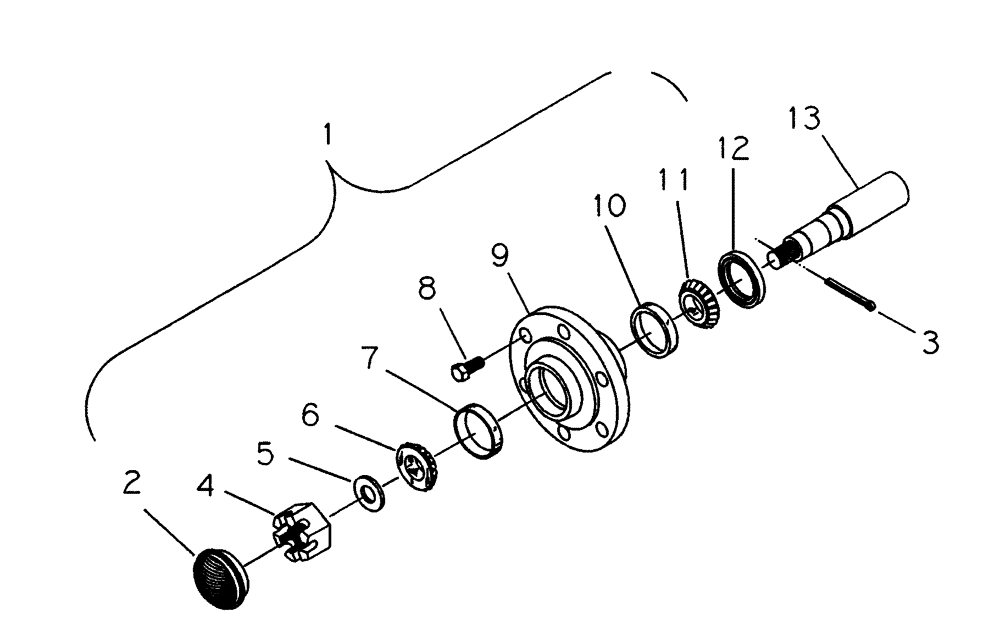

Схема запчастей Case IH TIGER-MATE - (44.100.09) - 783 HUB (44) - WHEELS
4
3
6
9
7
2
9
12
11
13
5
11

Артикул

Название

Примечание

Количество

1

28178300

HUB ASSY.

6 Bolt Includes Ref. 2, 4 -12

1шт.

2

28477700

HUB CAP

1шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

NF

1шт.

5

495-61094

WASHER,7/8" x 2 1/4" x .16"

Special 2" O.D.

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Bore Timeken LM#67048

1шт.

7

651817R1

BEARING CUP

2.33" O.D. Timeken LM#67010

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2" NF x 1-5/32" Lug Nut

6шт.

9

28278300

HUB

With Bearing Cup

1шт.

10

663558R1

BEARING CUP

2.89" O.D. Timeken LM#501310

1шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.624" Bore Timeken LM#501349

1шт.

12

145769C91

OIL SEAL

1.875" I.D. x 2.57" OD, CR#18823

1шт.

13

28378305

SPINDLE

1-7/8" Dia.

1шт.
