Запчасти Case IH TIGER-MATE (44.100.06[03]) - DOUBLE FOLD WALKING AXLE W/50-8 HUB - 54-1/2 - 60-1/2 (44) - WHEELS

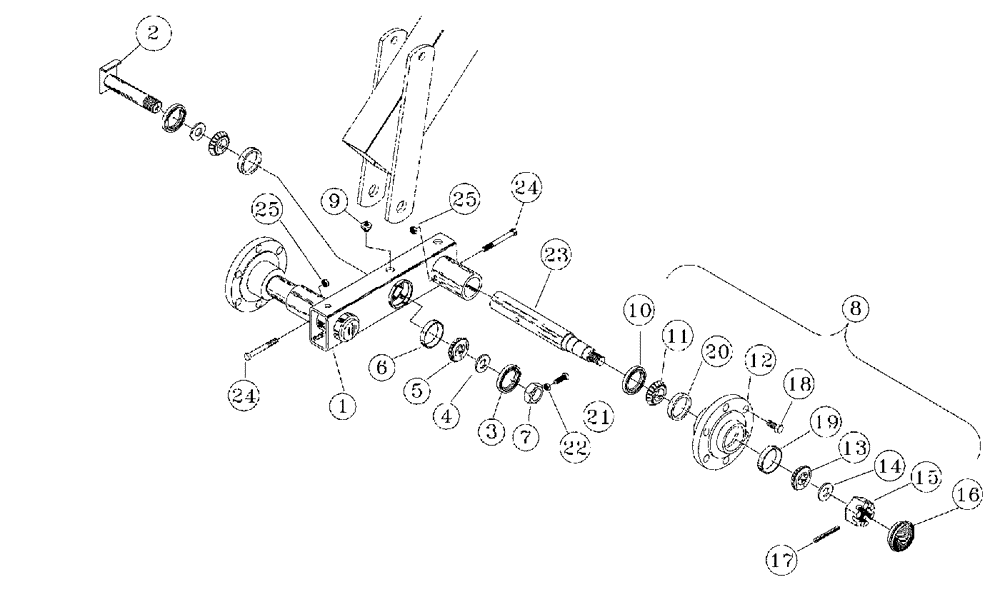

Схема запчастей Case IH TIGER-MATE - (44.100.06[03]) - DOUBLE FOLD WALKING AXLE W/50-8 HUB - 54-1/2 - 60-1/2 (44) - WHEELS
8
6
17
25
23
1
3
10
18
4
12
5
22
9
21
20
11
7
2
24
19
14
25
24
15
16
13

Артикул

Название

Примечание

Количество

1

06400870

TUBE ASSY.

Walking Axle Weld RH

1шт.

1

06400880

BEAM

Walking Axle Weld LH

1шт.

2

04661850

PIN

Axle , 6-1/4" Long

1шт.

3

21932510

SEAL

3.148" Bore CR # 22870

2шт.

4

06400573

SPACER

2шт.

5

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1.50" Bore Timken # 82776

2шт.

6

21883000

BEARING, CUP,76.2125 mm OD x 23.9135 mm

3.00" O.D. Timken # 2720

2шт.

7

14032409

NUT

1-1/2"

1шт.

8

28150800

HUB ASSY.

50-8 8-Bolt

2шт.

9

15302005

FITTING

1/8" NPT Self Tap Zerk

1шт.

10

21932501

OIL SEAL

2-1/2" 1.D. x 3.256" O.D. CR # 24924

1шт.

11

21871630

ROLLER BEARING,41.288 mm ID x 19.76 mm

1.624" Bore Timken # LM501349

1шт.

12

NSS

NOT SOLD SEPARAT

50-8 Hub W/Cups

1шт.

13

21872005

ROLLER BEARING,50 mm ID

2" Bore Timken # LM 104948

1шт.

14

17916100

WASHER

1"

1шт.

15

NSS

NOT SOLD SEPARAT

NUT, 1", NF, Slotted

1шт.

16

28460800

DUST CAP

Hub

1шт.

17

NSS

NOT SOLD SEPARAT

3/16" x 2' Cotter Pin

1шт.

18

14081003

WHEEL NUT

5/8" NF Wheel

8шт.

19

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

2.89" O.D. Timken # LM501310

1шт.

20

21883265

ROLLER BEARING,2" ID x 3.22 mm OD x 0.8652 mm

3.228" O.D. Timken # JLM 104910

1шт.

21

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8" x 1" Square Head Set

1шт.

22

NSS

NOT SOLD SEPARAT

3/8" NC Hex Jam Nut

1шт.

23

28350832

SPINDLE

2-1/2" (12' Main Frame)

2шт.

24

16008165

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2" x 4" NC Hex Gd. 5

2шт.

25

14110801

LOCK NUT

1/2" NC Stover Lock

2шт.

Выбрано товаров: 26
