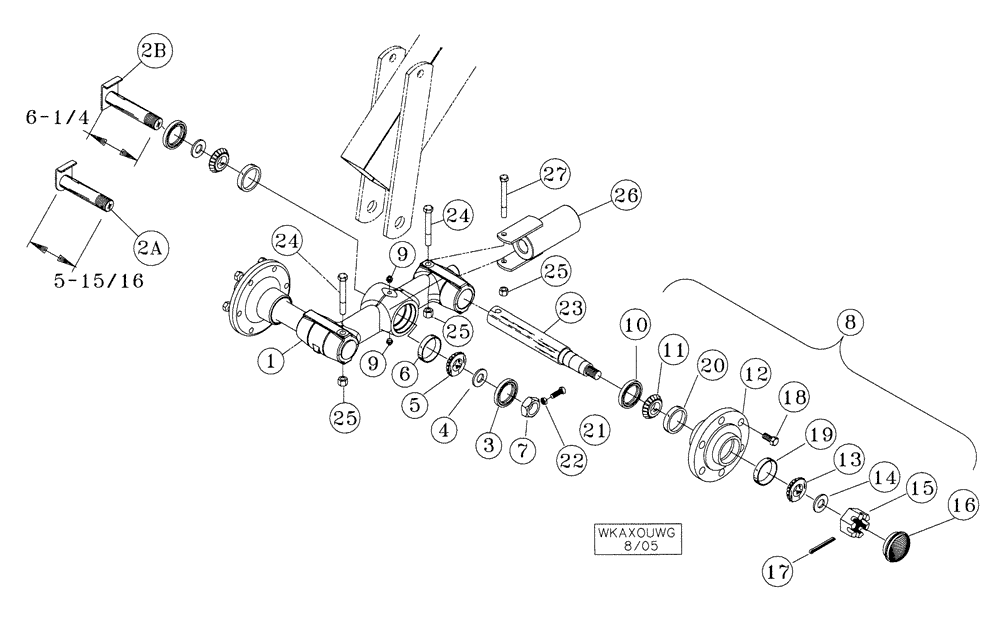

Запчасти Case IH TIGER-MATE (44.100.05) - DOUBLE FOLD WALKING AXLE ASSEMBLY (WINGS ONLY) 38-1/2 THROUGH 46-1/2 (44) - WHEELS

1

87459650

AXLE

Walking Tandem With Cups

1шт.

2a

06400290

SPECIAL PIN

Axle, 5-15/16

1шт.

2b

04661850

PIN

Axle, 6-1/4

1шт.

3

21932090

SEAL

2.094 Bore, CR#20952

2шт.

4

06201425

SPACER

2шт.

5

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

1.50 Bore, Timken #LM29749

2шт.

6

478793R1

BEARING CUP

2.56 OD, Timken #LM29710

2шт.

7

14032409

NUT

1-1/2, Jam

1шт.

8

87327566

SPINDLE

710, 6-Bolt

2шт.

9

219-86

LUBE NIPPLE,1/8" NPTF

Self Tap

2шт.

10

614410R91

SEAL

1.625 ID x 2.63 OD, CR#163221

1шт.

11

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1.375 Bore, Timken #LM48548

1шт.

12

28270900

HUB ASSY.

709, With Cups

1шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 Bore, Timken #LM67048

1шт.

14

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

2шт.

15

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

16

28477700

HUB CAP

1шт.

17

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

18

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2 NF x 1-15/32, Lug

6шт.

19

651817R1

BEARING CUP

2.33 OD, Timken #LM67010

1шт.

20

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2.56 OD, Timken #LM48510

1шт.

21

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Square Head Set

1шт.

22

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

23

87327569

STUB AXLE/STEERING S

710 - 1-7/8

2шт.

24

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

25

86992215

LOCK NUT,1/2"-13, GC

Stover

2шт.

26

87342062

COUNTERWEIGHT

Wheel Weight, 38-1/2 Through 46-1/2 Models Only

1шт.

27

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Wheel Weight

1шт.
