Запчасти Case IH TIGER-MATE (39.100.11) - 54-1/2 TO 60-1/2 DOUBLE FOLD OUTER WING (39) - FRAMES AND BALLASTING

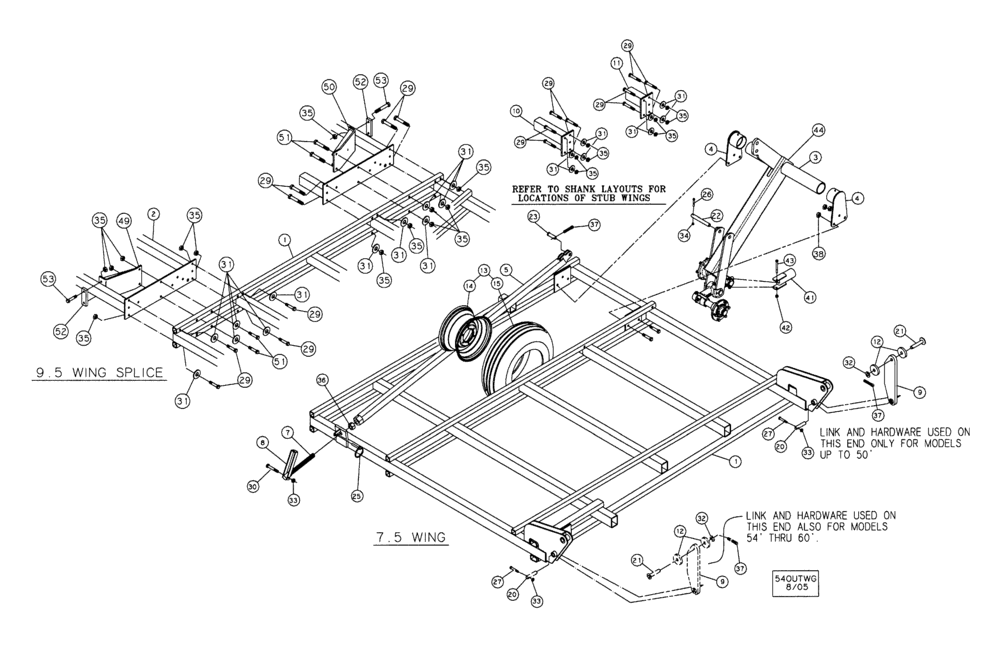

Схема запчастей Case IH TIGER-MATE - (39.100.11) - 54-1/2 TO 60-1/2 DOUBLE FOLD OUTER WING (39) - FRAMES AND BALLASTING
35
9
32
27
29
35
32
29
22
29
35
29
52
31
21
15
13
23
35
27
5
41
20
37
7
12
12
26
52
10
3
31
33
31
31
31
29
37
1
35
31
43
2
8
25
21
1
35
14
4
9
35
36
29
35
34
44
53
51
38
29
31
33
37
35
53
4
49
33
51
35
31
31
35
42
11
31
50
29
20
31
35
30

Артикул

Название

Примечание

Количество

1

06402310B

BAR ASSY.

Outer, 7-1/2, RH

1шт.

1

06402360B

BAR ASSY.

Outer, 7-1/2, LH

1шт.

1

06402010B

BAR ASSY.

Outer Base, 9-1/2, RH

1шт.

1

06402010B

BAR ASSY.

Outer Base, 9-1/2, LH

1шт.

2

06401510B

BAR ASSY.

Extension., 9-1/2, RH

1шт.

2

06401560B

BAR ASSY.

Extension., 9-1/2, LH

1шт.

3

06401100

ROCKSHAFT

RH Wing Without Tandem

1шт.

3

87337198

ROCKSHAFT

RH Wing With Tandem

1шт.

3

06401150

AXLE

LH Wing Without Tandem

1шт.

3

87337200

ROCKSHAFT

LH Wing With Tandem

1шт.

4

06401190

AXLE

Rockshaft

4шт.

5

06400820

STOP

Depth Adjust, 2 x 2

2шт.

7

06400840

ADJUSTER

Depth Adjust, 1-1/4" Dia. Thread

2шт.

Stamped 2 On End

1шт.

8

06400160

CRANKED HANDLE

2шт.

9

06402430

LINK

Wing Fold

2шт.

10

06402560B

BAR ASSY.

13-1/2

2шт.

11

06402500B

BAR ASSY.

9-1/2

2шт.

12

06220844

ROLLER

4шт.

13

10008156

WHEEL ASSY.

9.5L - 15SL, 8-Ply, Tubeless, White

2шт.

13

10008154

WHEEL ASSY.

9.5L - 15SL, 8-Ply, Tube, White

2шт.

14

10108154

WHEEL

8 x 15, 6-Hole With Guard, White

2шт.

15

NSS

NOT SOLD SEPARAT

9.5 x 15 8-Ply Tire, Tube and Tubeless

2шт.

20

14891618

SPECIAL PIN,25.4mm OD x 114.3mm L

1 Dia. x 4-1/2

2шт.

21

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 Dia. x 4.30

2шт.

22

14891630

SPECIAL PIN,25.4mm OD x 162.05mm L

1 Dia. x 5.75

2шт.

23

25890100

KIT

1 Cylinder

2шт.

24

87427159

U-BOLT,5/8" - 11 x 4" W x 4 1/2" L

BOLT "U" 5/8 x 4 x 4-1/2

4шт.

25

D33805

PIN

7/16 x 2, Klik

2шт.

26

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

27

424-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 2

2шт.

28

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

12шт.

29

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

30

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

31

495-81028

WASHER,21/32" x 1 1/2" x .240"

1шт.

32

495-11106

WASHER,1", SAE

2шт.

33

86992213

NUT

1шт.

34

86992213

NUT

3/8" NC Stover

2шт.

35

86992216

NUT

5/8" NC Stover

1шт.

36

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

2шт.

37

432-1632

COTTER PIN,1/4" x 2"

2шт.

38

06401620B

BRACE

Front

2шт.

39

06401640B

BRACE

Rear

2шт.

40

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

8шт.

41

87342062

COUNTERWEIGHT

Wheel, Includes 42 & 43

1шт.

42

86992215

LOCK NUT,1/2"-13, GC

1шт.

43

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

44

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

49

06401620B

BRACE

Front

1шт.

Used On 58-1/2 & 60-1/2 Units

1шт.

50

06401640B

BRACE

Rear

1шт.

Used On 58-1/2 & 60-1/2 Units

1шт.

51

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

52

06250333

WASHER

Backing

2шт.

53

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

Выбрано товаров: 55
