Запчасти Case IH TIGER-MATE (39.100.03) - DOUBLE FOLD MAIN FRAME AND TRUSSES 54-1/2 THROUGH 60-1/2 (39) - FRAMES AND BALLASTING

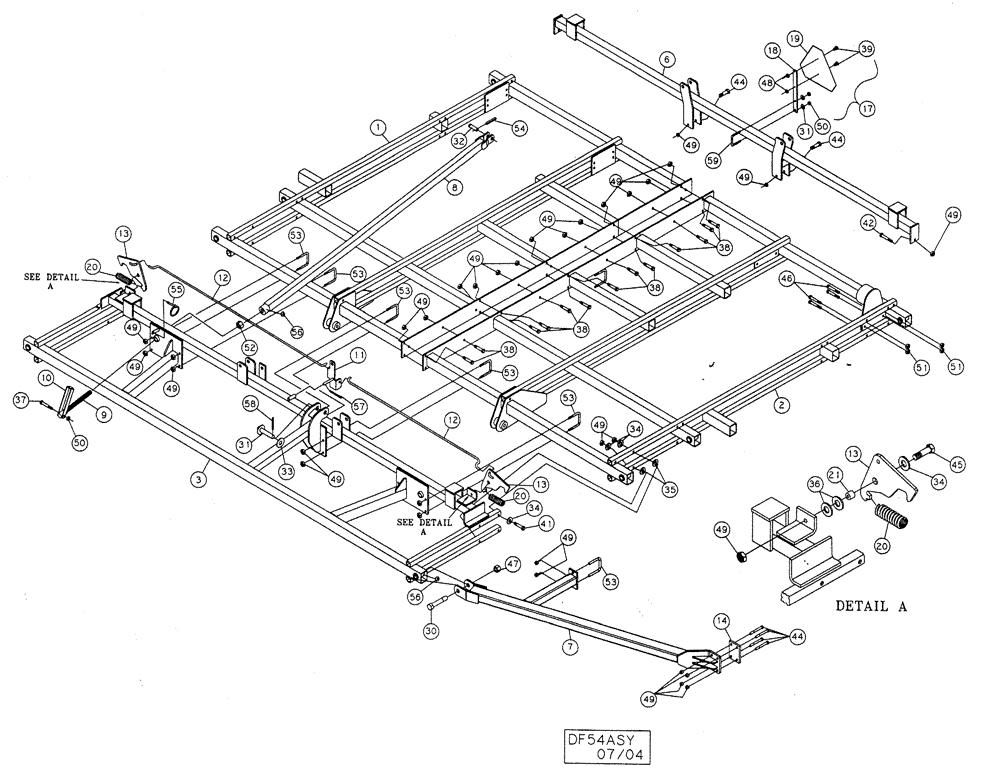

Схема запчастей Case IH TIGER-MATE - (39.100.03) - DOUBLE FOLD MAIN FRAME AND TRUSSES 54-1/2 THROUGH 60-1/2 (39) - FRAMES AND BALLASTING
34
44
53
7
58
38
18
48
49
9
46
10
34
20
49
52
51
49
20
45
53
50
53
38
54
49
38
44
30
53
41
36
31
59
53
20
19
53
39
49
2
49
6
31
32
44
49
13
8
49
47
14
1
17
56
49
49
49
53
38
42
13
57
33
49
21
37
35
12
49
12
50
55
34
51
56
13
49
3

Артикул

Название

Примечание

Количество

1

87394984

FRAME

14, RH, Blue

1шт.

2

87394985

FRAME

14, LH, Blue

1шт.

3

06400980B

BAR ASSY.

Front, 14, Main Frame

1шт.

6

06400680B

BAR ASSY.

Rear, 14, Main Frame

1шт.

7

87453421

FRAME ASSY

Inner Wing

2шт.

8

06400140

TUBE,103" Length

Depth Adjust, 2-1/2 x 2-1/2

2шт.

9

06400170

ADJUSTMENT SCREW,1 1/4" - 7 x 289.56mm

Depth Adjust, 1-1/2 Dia., Thread

2шт.

10

06400160

CRANKED HANDLE

2шт.

11

06400630

PIVOT ASSY.

Cylinder Latch

1шт.

12

06400636

LATCH ASSY.

14 Main Frame

2шт.

13

06400640

LATCH ASSY.

Wing

2шт.

14

87453387

MOUNTING PLATE

Mount

2шт.

17

18582000

KIT

SMV

1шт.

18

06200199

PRODUCT GRAPHIC

SMV

1шт.

19

311860A1

EMBLEM

SMV

1шт.

20

24117700

COMPRESSION SPRING

2шт.

21

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

2шт.

30

16902025

BOLT,Hex, 1-1/4" - 7 x 6-9/16", Gr 5

1-1/4 x 6.56, A-325, Hex

6шт.

31

86992215

LOCK NUT,1/2"-13, GC

Stover

2шт.

32

25890100

KIT

1, Bag

2шт.

33

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4 x 10 Ga., Machine

1шт.

34

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

1шт.

35

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

36

17618041

WASHER,28.98mm ID x 53.85mm OD x 1.19mm Thk

1-1/8, Machine, 18 Ga.

4шт.

37

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

38

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

15шт.

41

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

8шт.

42

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

6шт.

43

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

44

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

45

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

46

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

47

86992220

NUT

1-1/4, Stover

6шт.

49

85700693

NUT,5/8" - 11, Gr C

1шт.

50

86992215

LOCK NUT,1/2"-13, GC

Stover

2шт.

51

280375

NUT,3/4"-10, GC

8шт.

52

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

2шт.

53

87629089

U-BOLT

1шт.

54

432-1632

COTTER PIN,1/4" x 2"

2шт.

55

D33805

PIN

7/16 x 2, Klik

2шт.

56

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

57

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

58

438-32440

PIN,3/8" x 2 1/2", Coiled

1шт.

59

16308125

U-BOLT

1/2 x 3 x 4

1шт.

39

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

Выбрано товаров: 45
