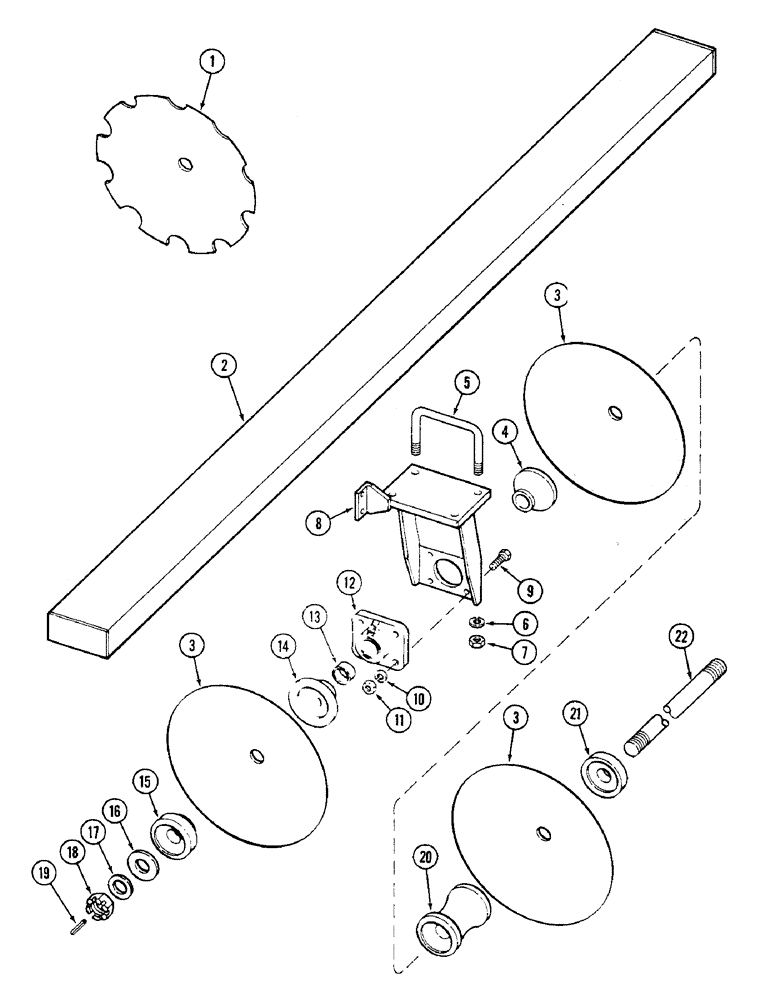

Запчасти Case IH RPW (088) - FRONT GANG - 9 INCH (228.6 MM) SPACING, 18 FOOT (5.5 M) CUT

1

T54794

BLADE

- disk 22" (558.8 MM) x 7 gauge notch

24шт.

1

T54799

BLADE

- disk 24" (609.6 MM) x 6 gauge notch

24шт.

1

T54801

BLADE - disk 24 x 1/4" (609.6 x 6.4 MM) notch

24шт.

1

T54803

BLADE - disk 26 x 1/4" (660.4 x 6.4 MM) notch

24шт.

2

T55467

BEAM - gang

1шт.

3

T54793

BLADE

- disk 22" (558.8 MM) x 7 gauge solid

24шт.

3

T54798

BLADE - disk 24" (609.6 MM) x 6 gauge solid

24шт.

3

T54800

BLADE - disk 24 x 1/4" (609.6 x 6.4 MM) solid

24шт.

3

T54802

BLADE

- disk 26 x 1/4" (660.4 x 6.4 MM) solid

24шт.

4

T54797

SPOOL

- half rear bearing

6шт.

5

T54787

BOLT

U-BOLT

12шт.

6

192-29

LOCK WASHER,7/8"

7/8"

24шт.

7

129-109

NUT,7/8"-9, G5

24шт.

8

T57452

STAND

- bearing

6шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

24шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

24шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

24шт.

12

T55532

HOUSING ASSY.

BEARING FLANGE ASSEMBLY

6шт.

13

T54783

BUSHING,44.7mm ID x 55.55mm OD x 33.33mm L

- gang shaft

6шт.

14

T54780

SPOOL

- half front bearing

6шт.

15

T54782

SPOOL

END CAP

2шт.

16

T54859

WASHER

- 4 x 1-3/4 x 3/8"

2шт.

17

195-117

WASHER - 4 x 1-7/8" x 7 gauge

2шт.

18

T54854

SLOTTED NUT

NUT - 1-3/4" slotted

4шт.

19

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

4шт.

20

T54796

SPOOL

16шт.

21

T54781

SPOOL

END CAP

2шт.

22

T55714

SHAFT

SHAFT - gang 109" (2768.6 MM)

2шт.
