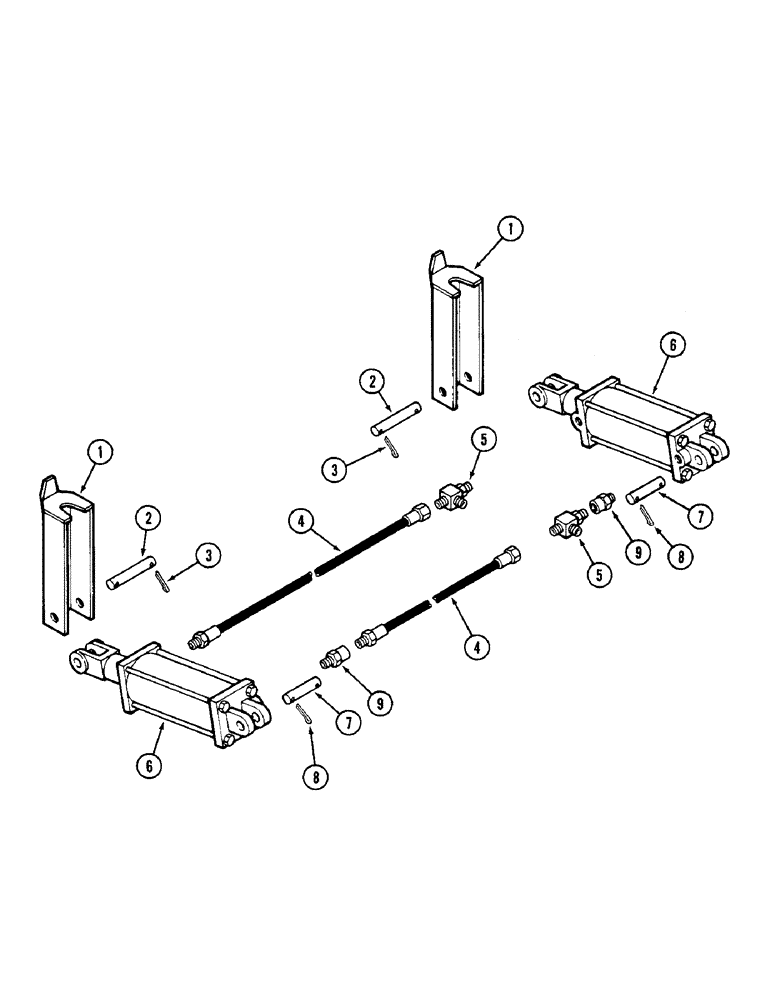

Запчасти Case IH RPW (032) - HYDRAULICS

1

T55390

LOCKING DEVICE

LOCKOUT - cylinder

2шт.

2

T55550

PIN - clevis 1 x 4-3/8" (25.4 x 111.1 MM)

2шт.

3

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

4шт.

4

T56155

HOSE - 1/2 x 61" (12.7 x 1549.4 MM)

2шт.

5

217-1275

TEE - pipe 1/2"

2шт.

6

T55391

CYLINDER ASSY.

CYLINDER - depth control 4 x 8" (101.6 x 203.2 MM) (See page 34)

2шт.

7

T55551

PIN - clevis 1 x 4" (25.4 x 101.6 MM)

2шт.

8

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

4шт.

9

218-1420

RESTRICTOR

- 3/16"

2шт.
