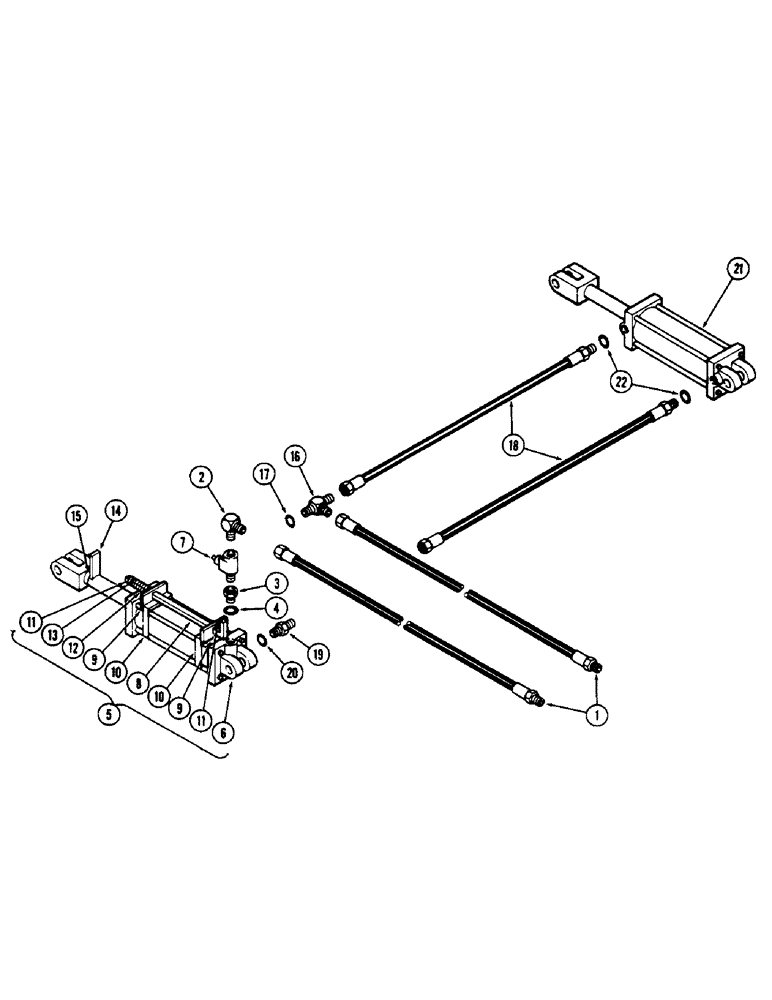

Запчасти Case IH RPW (030) - DEPTH CONTROL ASSY - AUTOMATIC, S/N 1639032 - S/N 1639034, S/N 1639041 - S/N 1639044, S/N 1639050

1

T57417

HOSE - 1/2 x 192" (12.7 x 4876.8 MM)

2шт.

2

T57416

ELBOW - restrictor 1/2 x 1/2" (12.7 x 12.7 MM)

1шт.

3

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

ADAPTER ASSEMBLY - 1/2"

1шт.

5

T57412

CYLINDER ASSEMBLY - depth control

1шт.

6

T56444

CYLINDER - 4 x 8" (101.6 x 203.2 MM) (See page 36)

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - control

1шт.

8

NSS

NOT SOLD SEPARAT

ROD - control

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - rod

2шт.

10

NSS

NOT SOLD SEPARAT

CLAMP - 6"

2шт.

11

NSS

NOT SOLD SEPARAT

PIN - cotter 1/8 x 1-1/8"

2шт.

12

NSS

NOT SOLD SEPARAT

SPRING

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - 15/16 x 7/16" x 16 gauge

1шт.

14

NSS

NOT SOLD SEPARAT

PADDLE

1шт.

15

NSS

NOT SOLD SEPARAT

CLAMP - 2-1/4"

1шт.

16

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 3/4"

1шт.

18

T57287

HOSE - 1/2 x 68" (12.7 x 1727.2 MM)

2шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER ASSEMBLY - 3/4"

1шт.

21

T56444

CYLINER - 4 x 8" (101.6 x 203.2 MM) (See page 36)

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

2шт.
