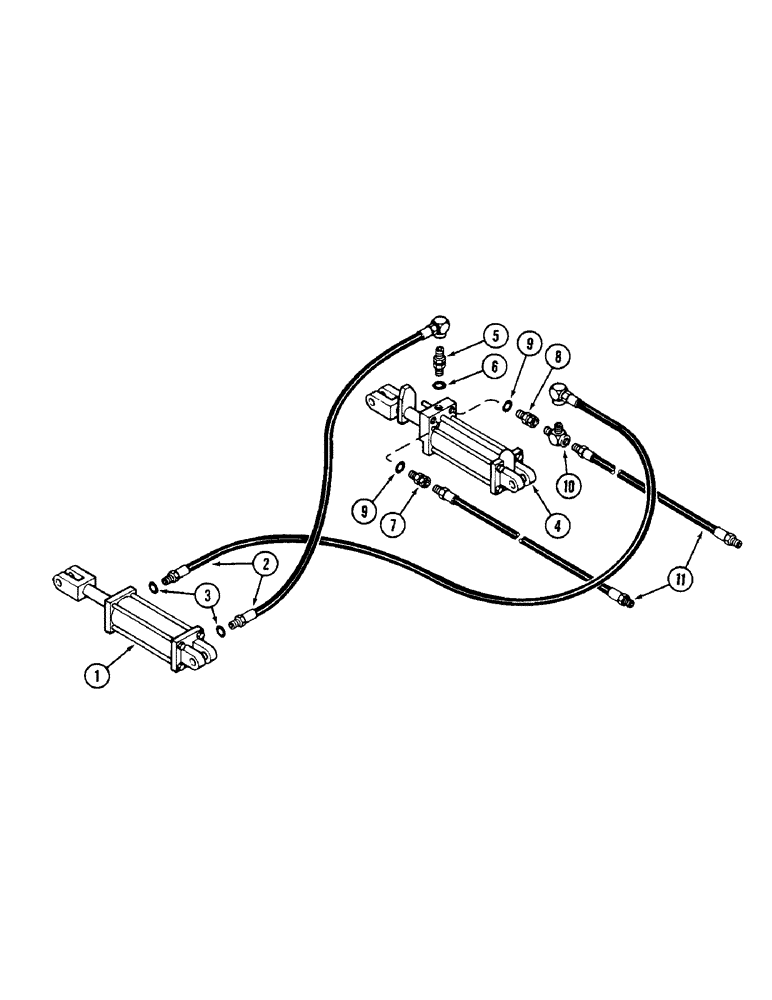

Запчасти Case IH RPW (028) - DEPTH CONTROL ASSEMBLY - INTERNAL

1

T56444

CYLINDER - depth control (See page 36)

1шт.

2

T57287

HOSE - 3/8 x 68" (9.5 x 1727.2 MM)

2шт.

4

T57365

CYLINDER

- depth control (See page 38)

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER ASSEMBLY - 1/2 x 1/2"

1шт.

7

T55517

RESTRICTOR - 3/16" (4.8 MM)

1шт.

8

T56150

ADAPTER ASSEMBLY - swivel 1/2 x 1/2" (12.7 x 12.7 MM)

1шт.

10

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

11

T57285

HOSE - 1/2 x 174" (12.7 x 4419.6 MM)

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.
