Запчасти Case IH RP (166[3]) - 10-1/2 INCH (266.7 MM) SPACING

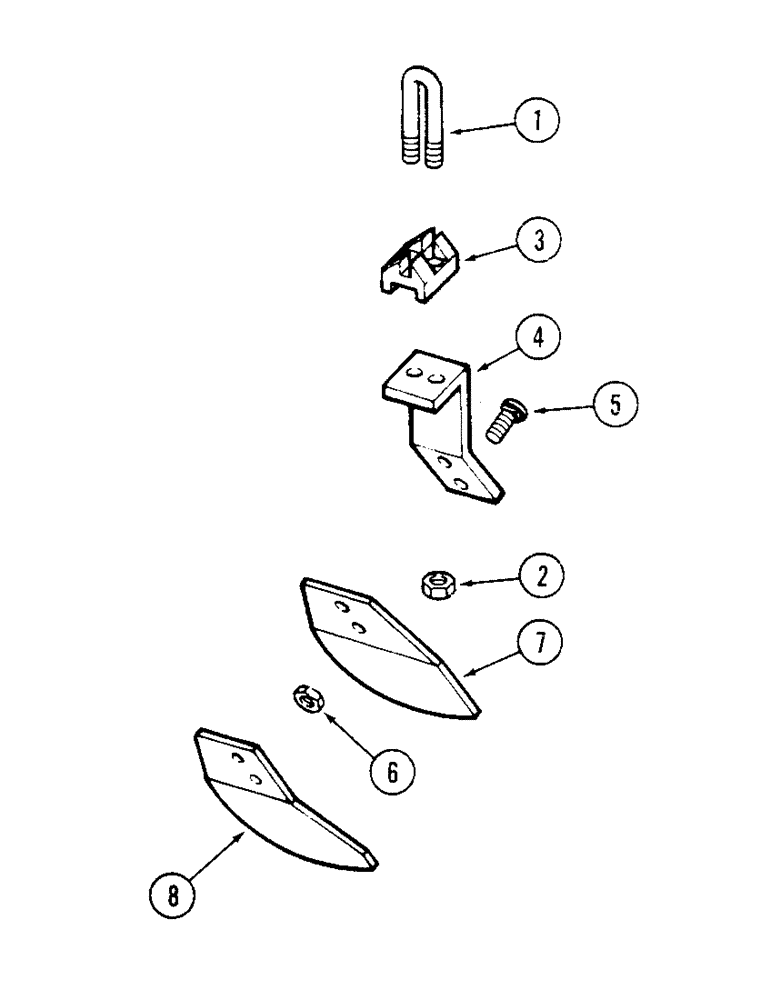

Схема запчастей Case IH RP - (166[3]) - 10-1/2 INCH (266.7 MM) SPACING

Артикул

Название

Примечание

Количество

1

T54785

BOLT

U-BOLT

13шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

26шт.

3

T55808

CLIP

- scraper bar

13шт.

4

T54789

ARM

- scraper

13шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

26шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

26шт.

7

T54788

HALF BLADE

BLADE - scraper

9шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

4шт.

1

T54785

BOLT

U-BOLT

11шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

22шт.

3

T55808

CLIP

- scraper bar

11шт.

4

T54789

ARM

- scraper

11шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

22шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

22шт.

7

T54788

HALF BLADE

BLADE - scraper

7шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

4шт.

1

T54785

BOLT

U-BOLT

16шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

32шт.

3

T55808

CLIP

- scraper bar

16шт.

4

T54789

ARM

- scraper

16шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

32шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

32шт.

7

T54788

HALF BLADE

BLADE - scraper

10шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

6шт.

1

T54785

BOLT

U-BOLT

14шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

28шт.

3

T55808

CLIP

- scraper bar

14шт.

4

T54789

ARM

- scraper

14шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

28шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

28шт.

7

T54788

HALF BLADE

BLADE - scraper

8шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

6шт.

Выбрано товаров: 32
